Choosing reflective sheeting by brightness alone is a costly mistake. A film may meet the required coefficient of retroreflection, print cleanly and look excellent when it leaves the factory, yet still peel, bubble or lift if its adhesive is not compatible with the application surface.
The adhesive must wet the substrate, resist the service environment and remain compatible with the reflective film, coating, ink and liner. Aluminum, powder-coated metal, galvanized steel, glass, polycarbonate, ABS, polyethylene and plywood do not present the same bonding conditions.
ABLAZE is the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd. We supply glass-bead and microprismatic reflective sheeting for traffic signs, commercial signage, printing, vehicle identification and safety applications. This guide explains how buyers and sign manufacturers can compare acrylic and rubber-based pressure-sensitive adhesives, evaluate substrate compatibility and qualify a product before bulk production.
Quick Answer: Is Acrylic or Rubber-Based Adhesive Better for Reflective Sheeting?
For permanent outdoor reflective sheeting applied to properly prepared aluminum, steel or another smooth, stable high-surface-energy substrate, an acrylic pressure-sensitive adhesive is normally the first system to evaluate. Acrylic formulations generally offer better long-term resistance to UV exposure, heat, oxidation, chemicals and outdoor aging.
Rubber-based adhesives often provide faster initial grab and may bond more readily to some difficult plastics or textured surfaces. However, a conventional rubber adhesive does not automatically provide the long-term weathering resistance needed for permanent outdoor traffic or safety applications.
There is no universal winner. Modified acrylic adhesives can be formulated for low-surface-energy plastics, while high-performance rubber systems can be designed for demanding applications. The correct decision depends on:
Exact substrate material and surface coating
Surface energy, smoothness and porosity
Minimum application temperature
Service temperature and climate
Required outdoor life
Exposure to UV, water, fuel, cleaners and plasticizers
Adhesive coat weight and conformability
Film construction and dimensional stability
Application pressure and bond-development time
Always test the exact reflective sheeting on the actual production substrate.
Pressure-Sensitive Describes How the Adhesive Works, Not Its Chemistry
Most self-adhesive reflective sheeting uses a pressure-sensitive adhesive, commonly abbreviated as PSA. A PSA creates a bond when pressure brings the adhesive into close contact with a suitable surface. It normally does not require a separate liquid glue, solvent activation or heat cure.
“Pressure-sensitive” does not tell you whether the adhesive is acrylic or rubber-based. It also does not mean that the product will bond to every surface.
When reading a quotation or reflective sheeting technical data sheet, separate these four questions:
What is the adhesive chemistry?
Is it permanent, removable, repositionable or low-temperature?
Which substrates are recommended?
What application and service conditions were used for the stated performance?
A data sheet that says only “permanent pressure-sensitive adhesive” is incomplete for a demanding project.
How a Reflective Sheeting Adhesive Develops a Bond
A durable bond requires more than a sticky surface. Four performance concepts are especially important.
Tack
Tack is the adhesive’s ability to grab the substrate after brief contact and light pressure. High initial tack can make installation feel secure, but it can also make positioning difficult and trap air if the film touches the panel too early.
Wet-Out
Wet-out describes how well the adhesive flows across microscopic peaks and valleys in the substrate. Better wet-out creates a larger real contact area.

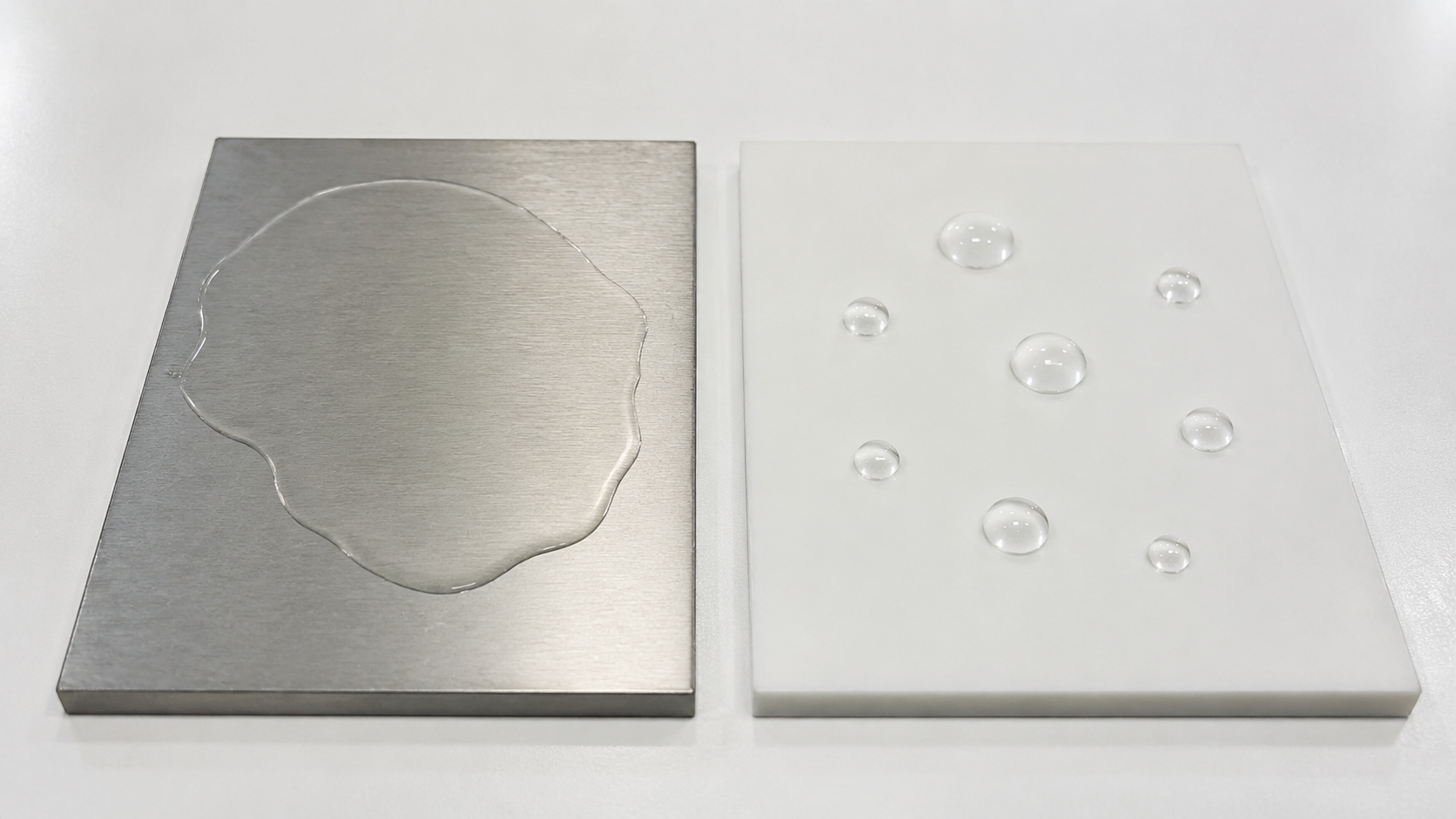

Metals and glass usually have relatively high surface energy and are easier to wet than polyethylene or polypropylene. Contamination, wax, oil, silicone and some powder coatings can sharply reduce wet-out even when the underlying material would normally be easy to bond.
Peel Adhesion
Peel adhesion measures resistance to an edge being pulled away from the surface. It is relevant to corner lifting, cut-letter edges and water entering a film–substrate interface.
A peel result is meaningful only when the report identifies the substrate, sample width, peel angle, peel speed, dwell time, temperature and application pressure.
Shear and Cohesive Strength
Shear strength describes resistance to sliding under a sustained load. Cohesive strength describes the adhesive’s internal resistance to splitting.
An adhesive may have high initial tack but insufficient long-term cohesive strength at elevated temperature. In that case, the film can creep or the adhesive can split while residue remains on both surfaces.

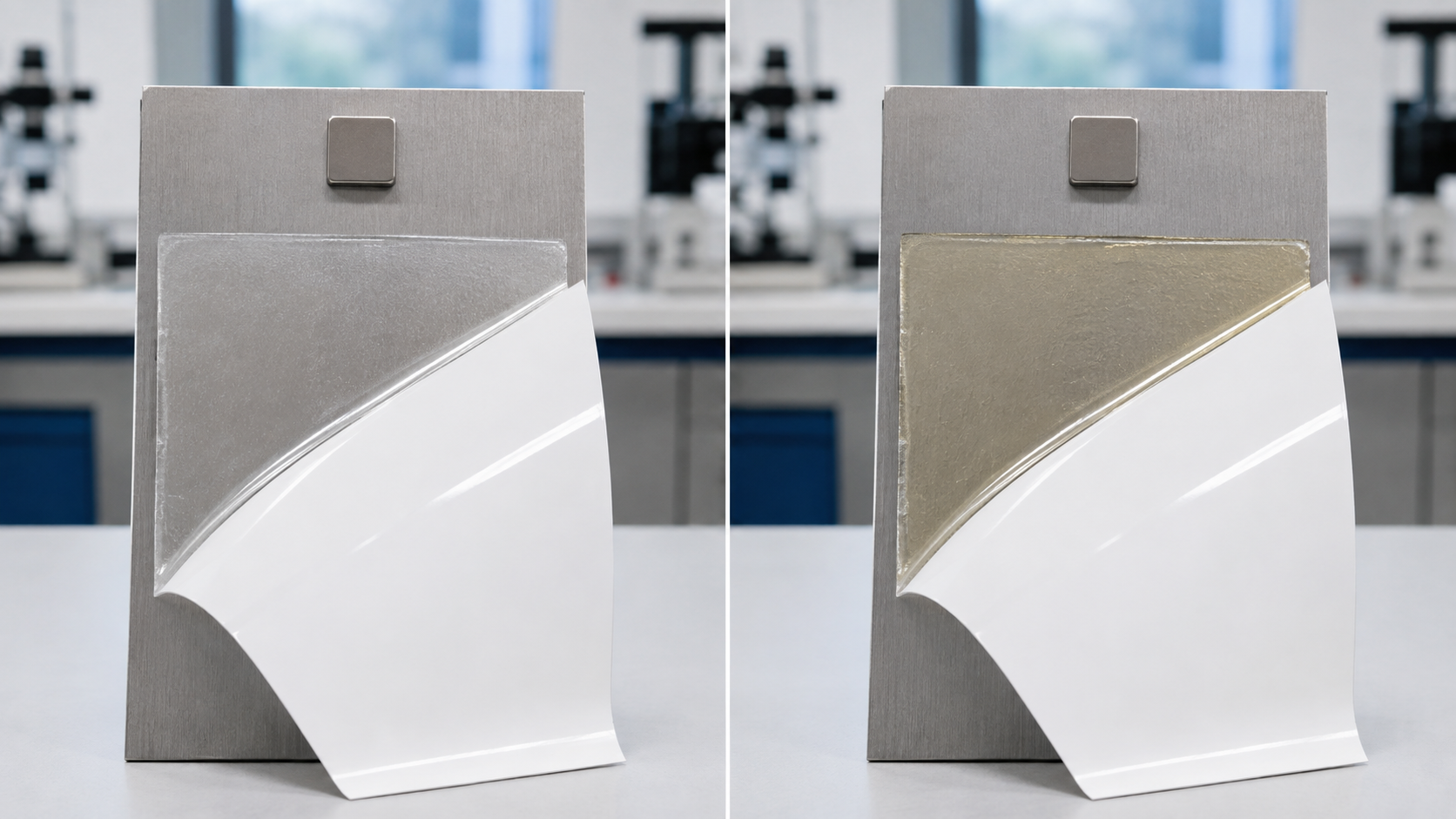

Acrylic vs Rubber-Based Adhesive: Comparison Table
The table below describes common tendencies, not guaranteed values. Formulation, coat weight and product construction can change the result.
Selection Factor | Acrylic PSA | Rubber-Based PSA |
|---|---|---|
Initial tack | Moderate to high; bond often builds with time | Commonly high with fast initial grab |
Long-term outdoor aging | Generally strong | Generally more limited unless specially stabilized |
UV and oxidation resistance | Usually better | Usually more sensitive |
High-temperature resistance | Generally better | Can soften or age faster, depending on formulation |
Chemical and solvent resistance | Commonly stronger | More formulation-dependent and often lower |
Bond to clean aluminum, steel and glass | Usually very good | Can be good, but long-term outdoor suitability must be verified |
Bond to PE, PP and other low-energy plastics | Standard acrylic may be weak; use an LSE-rated modified acrylic if appropriate | High-tack rubber often starts stronger, but long-term exposure still requires testing |
Bond-development behavior | May continue increasing after application | Often reaches useful initial adhesion quickly |
Color and aging | Commonly clear with good aging stability | May yellow or oxidize over extended exposure |
Repositioning during application | Depends on tack and liner system | High initial tack can reduce repositionability |
Typical starting point | Long-life outdoor signs and stable metal panels | Shorter-term work, controlled indoor conditions or selected difficult surfaces |
Do not choose an adhesive family from this table alone. Ask for product-level data and test samples.
Acrylic Adhesive for Reflective Sheeting
Acrylic PSAs are widely used in outdoor graphics and sign materials because their polymer structure can provide strong resistance to weathering, heat, UV light and chemicals.
Where Acrylic Adhesive Is Usually Strongest
An appropriately formulated acrylic adhesive is commonly a good starting point for:
Properly prepared aluminum traffic-sign panels
Zinc-coated or galvanized steel approved by the supplier
Stainless steel after removal of oil and processing residue
Smooth glass
Fully cured compatible paint systems
Long-term vertical outdoor exposure
Applications exposed to cleaning agents, fuel splash or temperature cycling
Many traffic-sign products, including engineering-grade and prismatic reflective sheeting, use permanent acrylic PSAs formulated for metallic sign substrates. Buyers comparing engineering-grade reflective sheeting should still confirm the approved panel treatment and minimum application temperature for the exact product code.
Limitations of Standard Acrylic Adhesive
Standard acrylic adhesive may not wet untreated PE, PP, silicone-rich plastic, heavily textured powder coat or contaminated plastic effectively. Cold application can also prevent sufficient wet-out.
This does not mean “acrylic cannot bond to plastic.” It means the formulation must be selected for that plastic. Modified acrylic and LSE acrylic systems are available, but they should be identified specifically rather than assumed from the word acrylic.
Rubber-Based Adhesive for Reflective Sheeting
Rubber-based PSAs use natural or synthetic rubber polymers with tackifying resins. They are often selected for strong initial adhesion and rapid wet-out.
Where Rubber-Based Adhesive Can Be Useful
A suitable rubber-based adhesive may be considered for:
Short- to medium-term indoor safety marking
Controlled environments with limited UV exposure
Selected low-surface-energy plastics
Slightly textured surfaces requiring an aggressive high-tack system
Applications where fast initial grab is more important than repositioning
Temporary or replaceable reflective identification
Limitations of Rubber-Based Adhesive
Compared with a typical outdoor acrylic system, rubber adhesive may be more vulnerable to UV radiation, oxidation, elevated temperatures, solvents and long-term aging. It can also soften, discolor or leave residue, depending on the formula and exposure.
Rubber-based adhesive should therefore not be described as “indoor only” in every case, but neither should high tack be treated as proof of long outdoor durability. A supplier should provide product-specific evidence for the intended environment.

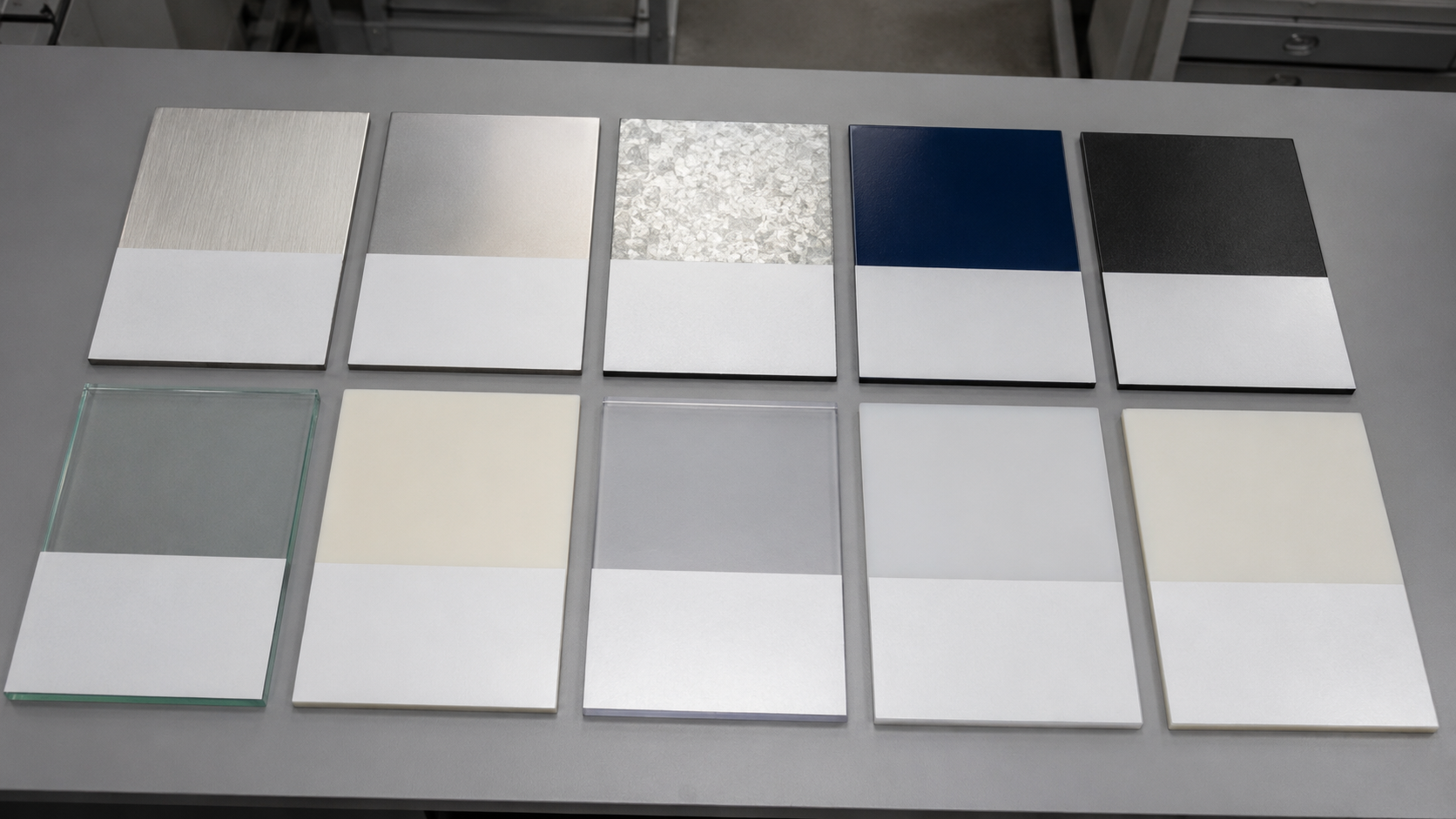

Substrate Compatibility Matrix for Reflective Sheeting
Substrate compatibility depends on the complete surface, not only the base material. Two aluminum panels can behave differently if one is chemically treated and the other is oily or oxidized. Two powder-coated panels can have different surface energy because their resin, pigment, texture and cure conditions differ.
Substrate | Normal Starting Point | Main Adhesion Risks | Required Buyer Action |
|---|---|---|---|
Treated aluminum sign blank | Outdoor acrylic PSA | Oil, white rust, oxide, fingerprints, poor conversion coating | Use approved alloy/treatment; clean, dry and test |
Stainless steel | Acrylic PSA | Rolling oil, polish, passivation residue | Degrease with an approved method and test after dwell |
Galvanized or zinc-coated steel | Product-specific acrylic PSA | Oil, unstable coating, corrosion, surface variation | Confirm the exact finish is approved |
Painted metal | Acrylic or modified acrylic PSA | Incomplete cure, wax, silicone, solvent release, weak paint bond | Confirm full cure and test adhesive-to-paint plus paint-to-metal bond |
Powder-coated metal | Modified acrylic, LSE acrylic or qualified high-tack system | Low surface energy, texture, additives, batch variation | Test each coating system and production batch when necessary |
Glass | Acrylic PSA | Cleaner residue, condensation, edge water exposure | Clean without residue and protect vulnerable edges where specified |
ABS or acrylic plastic | Modified acrylic or qualified high-tack PSA | Mold release, cleaning damage, thermal movement | Identify the resin and test actual molded/formed parts |
Polycarbonate or fiberglass | Specialized acrylic/high-tack PSA | Outgassing, surface coating, residual monomer | Conduct an outgassing and heat-exposure test |
Polyethylene or polypropylene | LSE-rated modified acrylic or high-tack rubber system | Very low surface energy, mold release, flexing | Pretreatment may be needed; standard sign adhesive is not enough |
Rigid PVC | Plastic-compatible PSA | Plasticizer or additive migration | Verify long-term chemical compatibility |
Flexible PVC, vinyl or banner | Specialized flexible construction | Plasticizer migration, movement, shrinkage | Use a product made for flexible media; do not substitute rigid sign sheeting |
MDO or sealed wood | Product approved for smooth sealed MDO | Porosity, moisture, roughness, edge absorption | Seal edges, prepare the face and qualify the complete panel |
Raw wood, concrete or masonry | Usually not suitable for standard reflective sheeting | Porosity, dust, moisture, alkalinity, roughness | Use a rigid intermediate panel or a purpose-designed marking system |
Rubber or fabric | Specialized flexible reflective tape/material | Plasticizer, movement, low energy, washing | Use a product specifically designed for the material |
Painted vehicle body | Conformable graphics-grade reflective film | Curves, repaint quality, wax, removal damage | Use a vehicle-approved film, not rigid traffic-sign sheeting |
Aluminum Sign Panels
Properly prepared aluminum is the reference substrate for many permanent traffic-sign products. It is smooth, stable, non-porous and relatively easy for an acrylic PSA to wet.
However, mill-finish aluminum may contain rolling oil, oxide or white rust. Reclaimed panels may carry old adhesive, scratches or corrosion. Preparation should follow the panel, reflective sheeting and project specification.
For production steps, read How to Apply Reflective Sheeting to Aluminum Sign Panels. For standard flat sign work, buyers can also evaluate ABLAZE Engineering Grade PET Reflective Sheeting using the actual aluminum blank.
Painted and Powder-Coated Metal
The adhesive bonds to the paint or powder coat, not directly to the metal beneath it. The total system can fail in two different ways:
Reflective sheeting separates from the coating.
The coating separates from the metal while the sheeting remains attached.
Fresh paint must be fully cured according to the coating manufacturer. A surface that feels dry can still release solvent or contain migrating additives. Powder coatings require particular care because texture and surface energy vary widely.
Plastic Substrates
“Plastic” is not a useful adhesive specification. ABS, acrylic, polycarbonate, fiberglass, PVC, PE and PP behave differently.
Polycarbonate and fiberglass can outgas after lamination, producing bubbles that appear hours or days later. PE and PP have low surface energy and may require flame, corona or plasma treatment plus a specially formulated adhesive. Mold-release agents can also create a weak boundary layer.
Pretreatment must be controlled and validated. An aggressive treatment can damage the plastic without producing a durable outdoor bond.
Curved and Flexible Surfaces
Adhesive strength cannot compensate for the wrong face film. A stiff PET or acrylic reflective sheeting forced around a tight curve stores recovery stress that pulls continuously against the edge.
For commercial graphics and simple curves, a flexible ABLAZE printable PVC reflective vinyl may be more appropriate. For qualified UV-printing applications, review ABLAZE acrylic reflective sheeting and confirm both ink and substrate compatibility.
Application Temperature Is Not the Same as Service Temperature
This distinction prevents many adhesive failures.
Minimum application temperature is the lowest substrate and material temperature at which the adhesive can be applied and develop the intended bond.
Service temperature is the range the bonded construction may withstand after correct application and sufficient dwell.
A reflective film may survive a cold winter after bonding but still fail if it is installed on a cold panel. At low application temperature, the adhesive becomes less able to flow and wet the surface. Heating only the air is not enough if a metal panel remains cold or condensation forms when it enters a warm room.
Do not use a generic temperature such as 10°C or 18°C for every product. Confirm the minimum application temperature stated for the exact model, then measure the substrate—not only the room.
Surface Preparation: Seven Steps for a Reliable Bond
1. Identify the Complete Substrate
Record the base material, alloy or resin, surface treatment, paint or powder-coat system, texture, age and production batch.
2. Complete Fabrication Before Final Cleaning
Drill, punch, cut and deburr the panel before the final cleaning stage. Metal chips and abrasive dust can create visible bumps or unbonded points.
3. Allow Coatings to Cure Completely
Follow the paint or powder supplier’s cure requirements. Do not treat “touch dry” as proof that a coating is ready for lamination.

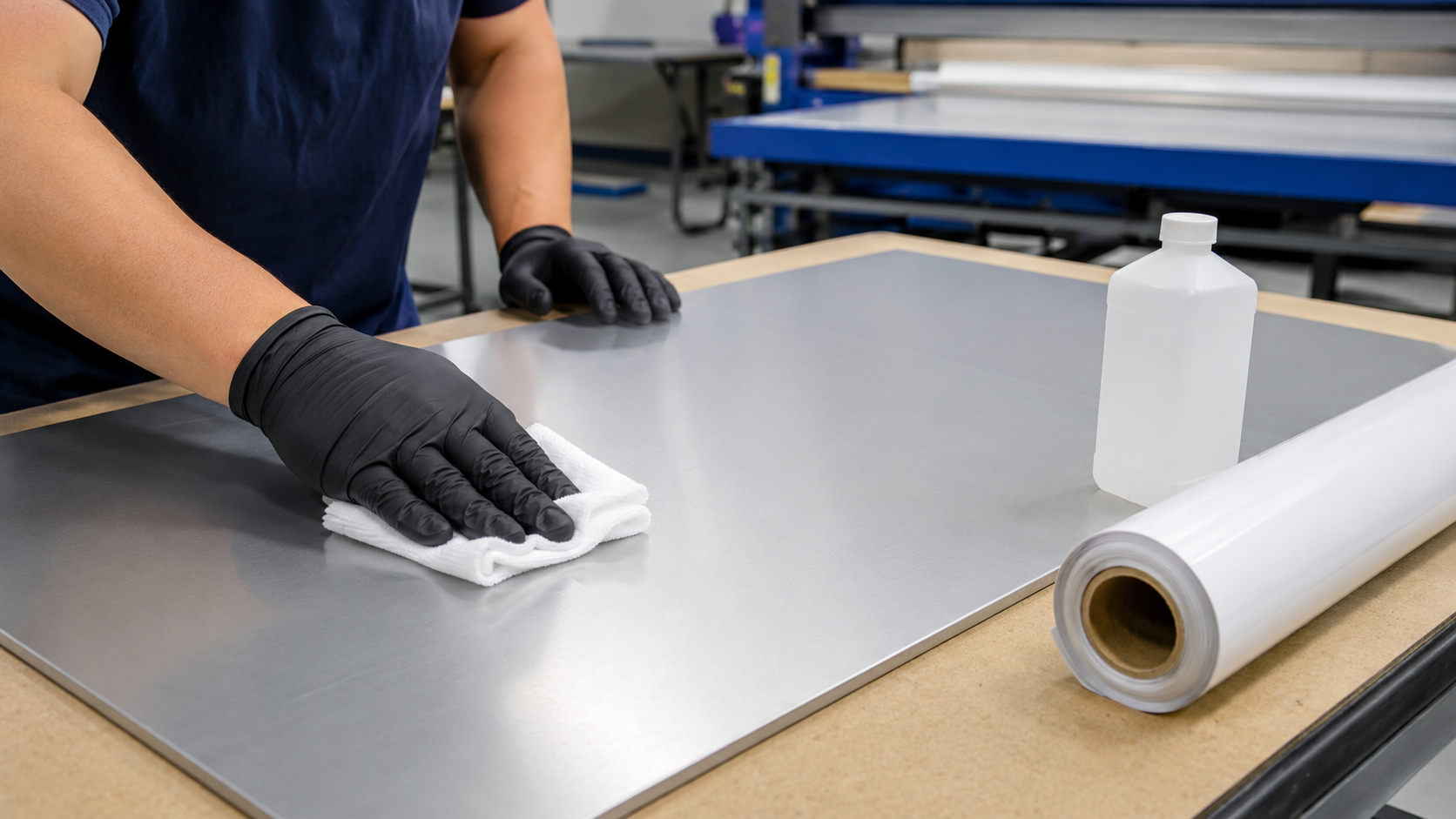

4. Remove Contamination With a Compatible Method
Remove dust, oil, wax, silicone, polish, mold release and cleaner residue. Use clean lint-free wipes and a cleaning agent approved for both the substrate and reflective sheeting.
A practical two-cloth method is to wipe with the approved cleaner and immediately dry with a second clean cloth before dissolved contamination is redeposited.
5. Confirm the Surface Is Dry and Stable
Inspect for moisture, condensation, oxide, chalking paint, loose coating and porous areas. A water-break or tape-cleanliness check can help reveal contamination, but it does not replace an adhesion test.

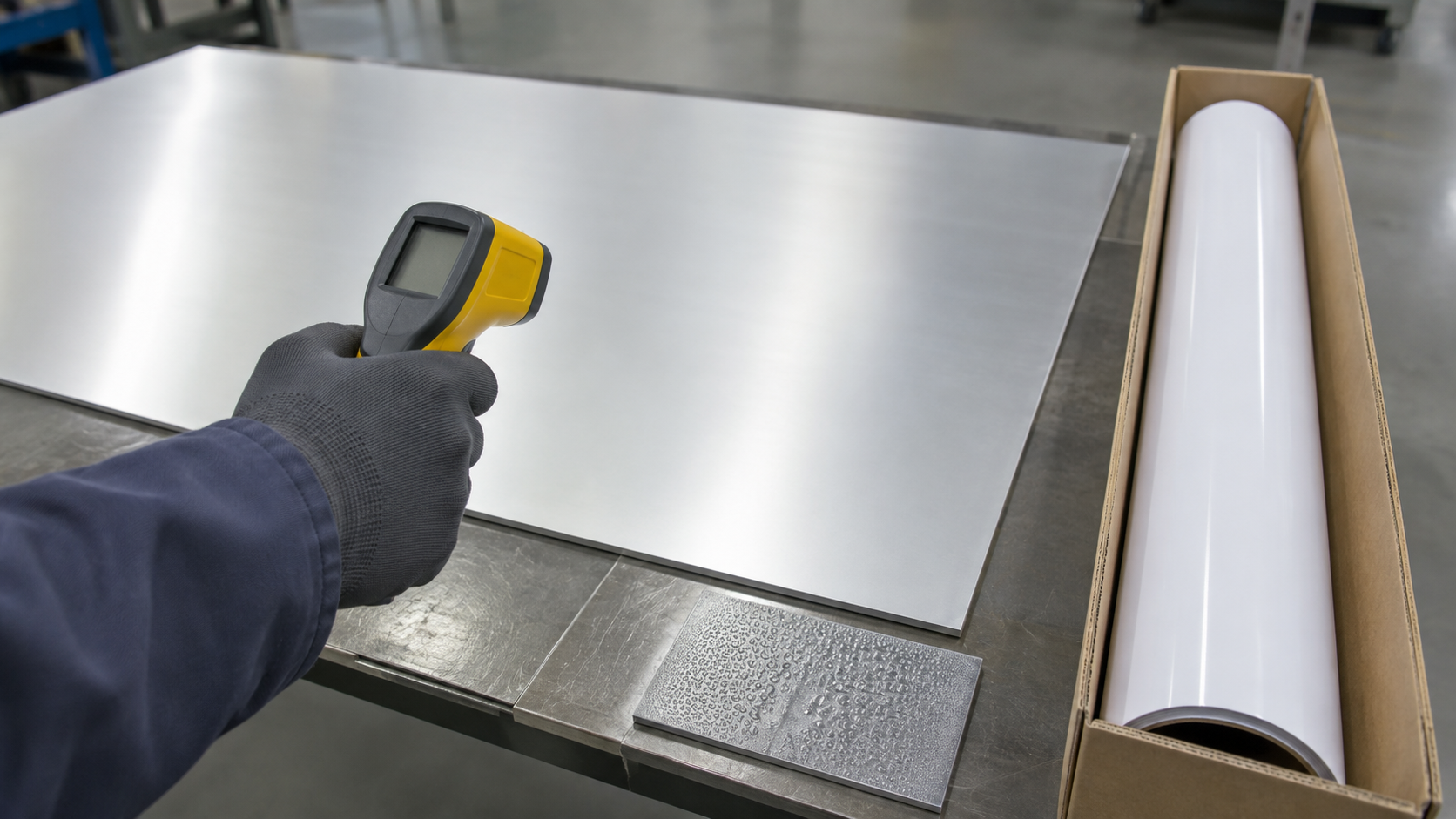

6. Condition Both Sheeting and Substrate
Allow the full roll, cut sheets and panels to reach the specified application environment. Avoid applying material to panels heated by direct sunlight or brought cold into a humid room.
7. Apply Uniform Pressure and Allow Bond Development
Use firm overlapping squeegee strokes for small areas or a correctly adjusted roll laminator for full panels. Remove the liner gradually, keep the sheeting relaxed and avoid stretching.
Many PSAs build adhesion over time. Protect newly applied panels from water, severe cold, stacking pressure and aggressive handling until the required dwell period has passed.
How to Test Reflective Sheeting Adhesion on the Actual Substrate
A standard laboratory result on stainless steel or smooth aluminum is useful for quality control, but it does not automatically predict performance on your painted panel, plastic component or powder-coated cabinet.
Use the following qualification sequence before a bulk order or production change.
Step 1: Prepare Representative Panels
Use the same substrate, coating, cleaning process and batch type intended for production. Include at least one accepted control material when possible.
Step 2: Standardize Application
Condition all samples together. Record substrate temperature, room conditions, sample width, roller or squeegee method, pressure and number of passes.
Step 3: Inspect at Multiple Dwell Times
Check immediate tack, then inspect at agreed times such as 24 hours, 72 hours and seven days. These intervals are a useful comparison schedule, not a universal standard.

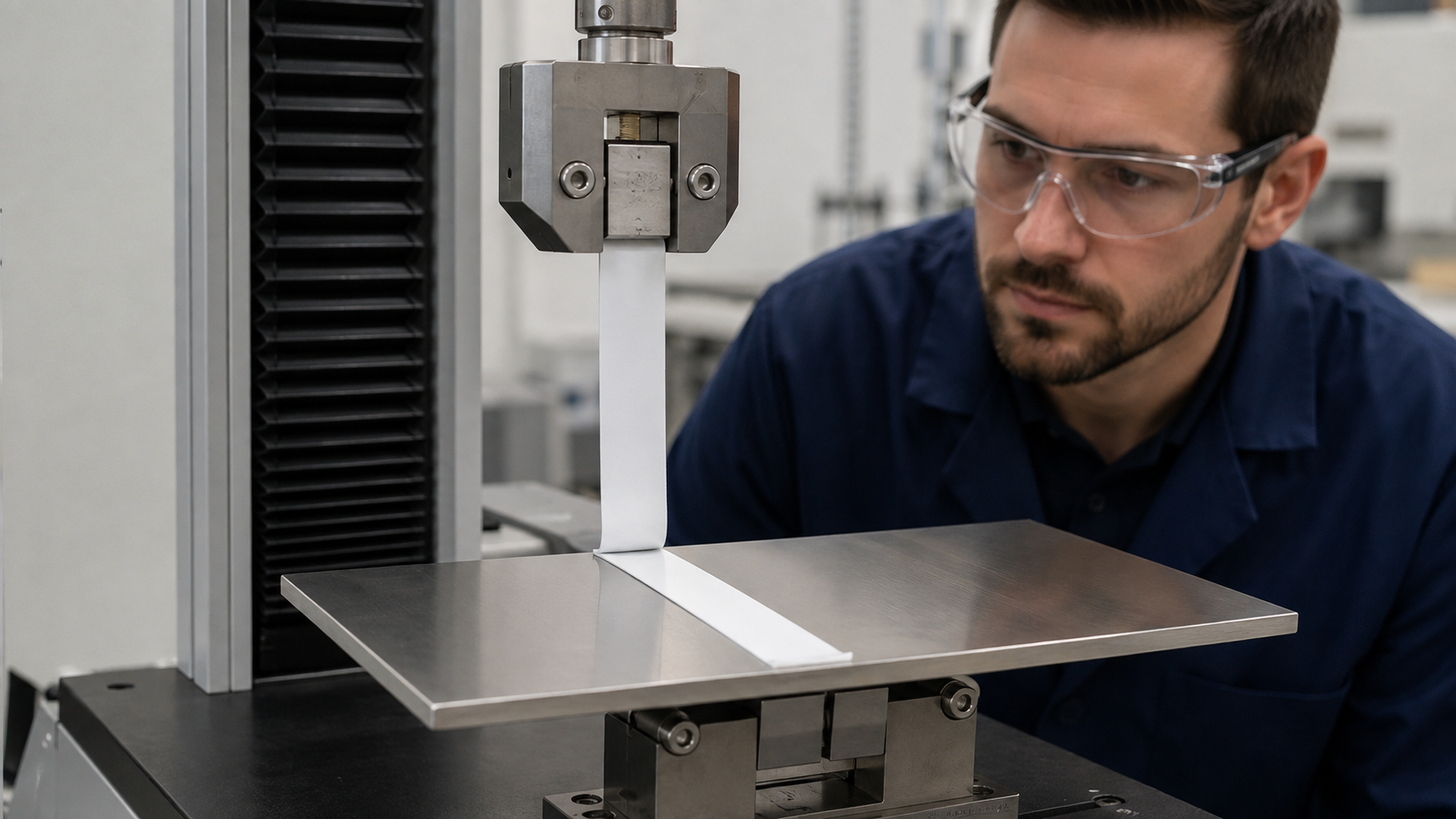

Step 4: Measure Peel Using One Defined Method
If numerical peel testing is required, agree on:
Sample width
90-degree or 180-degree peel geometry
Peel speed
Dwell time
Test temperature
Substrate specification
Application pressure
Pass/fail value
Do not compare two suppliers when their test conditions differ.
Step 5: Record the Failure Interface
After peeling, inspect where the adhesive remains.
Observation | Likely Failure Mode | What It Suggests |
|---|---|---|
Panel is clean and adhesive remains on film | Adhesive-to-substrate failure | Contamination, poor wet-out, low temperature or incompatible surface |
Adhesive residue remains on both sides | Cohesive split | Heat, chemical attack, aging or insufficient cohesive strength |
Adhesive remains on panel but film separates | Film-to-adhesive or internal failure | Internal delamination or construction incompatibility |
Paint comes off with the film | Coating-to-substrate failure | Weak or incompletely cured coating |
Bubbles appear without edge lifting | Outgassing or trapped moisture | Plastic/coating gas release or poor conditioning |
Step 6: Add Relevant Environmental Challenges
Depending on the application, expose qualified samples to water immersion, humidity, heat, cold, thermal cycling, fuel, cleaner or UV weathering. Use the project standard or product specification to define duration and acceptance criteria.
Step 7: Run a Production-Scale Trial
A small coupon cannot reveal every converting problem. Apply a full-size or representative sign using the intended laminator, operator and workflow, then inspect edges, corners, splices and printed areas.
For a detailed test plan, see How to Test Adhesion, Shrinkage and Weather Resistance of Reflective Sheeting. Buyers can also use the Reflective Sheeting Quality Checklist for incoming inspection and batch comparison.
Common Adhesive Failures and Their Causes
Edge Lifting Soon After Application
Typical causes include contaminated edges, low application temperature, insufficient pressure or stretching during installation.
Complete Sheet Peels Away Cleanly
This usually points to poor adhesive-to-substrate contact. Investigate wax, oil, silicone, oxide, LSE plastic, incompatible coating or application below the minimum temperature.
Bubbles Appear After 24–72 Hours
Delayed bubbles often suggest plastic or coating outgassing, trapped solvent, moisture or insufficient coating cure.
Adhesive Softens or Leaves Heavy Residue
Possible causes include excessive heat, fuel or solvent exposure, plasticizer migration, aging or an adhesive chemistry unsuited to the environment.
Film Lifts Around Curves or Rivets
The reflective sheeting may be too stiff for the shape. Selecting a more aggressive adhesive does not remove recovery stress from an unsuitable face film.
Adhesion Passes Initially but Fails Outdoors
Initial tack measured in a workshop does not represent UV, heat, water and thermal cycling. Review the adhesive chemistry, edge exposure and complete service conditions.
For layer-by-layer diagnosis, use the Reflective Sheeting Defects and Troubleshooting Guide.
Does ASTM D4956 Tell You Whether the Adhesive Is Acrylic or Rubber-Based?
Not by itself. ASTM D4956 identifies performance requirements for retroreflective sheeting and distinguishes adhesive/backing classes such as pressure-sensitive, heat-activated, repositionable low-tack, low-temperature pressure-sensitive and non-adhesive constructions.
An ASTM adhesive class describes how the backing is applied or handled; it does not fully identify the polymer chemistry, coat weight or compatibility with every substrate.
If a project references ASTM D4956, confirm:
Exact product type and color
Adhesive/backing class
Approved substrate
Minimum application temperature
Adhesion test method and acceptance criterion
Required weathering and durability documentation
How to Specify Reflective Sheeting Adhesive in an RFQ
Avoid writing only “strong adhesive” or “permanent glue.” Those terms cannot be tested consistently.
Include the following information in your request for quotation:
Final application and country
Applicable standard or project specification
Exact substrate material, alloy or plastic resin
Surface treatment, paint or powder-coat type
Surface texture and curvature
Indoor or outdoor use
Minimum application temperature
Expected service-temperature range
UV, humidity, salt, fuel and chemical exposure
Required service life
Film type: PVC, PET, acrylic or microprismatic construction
Printing, cutting, embossing or lamination process
Required adhesive type, if already specified
Peel or adhesion test method and pass value
Roll size, color, quantity and liner requirement
Sample and trial-panel requirement
This gives the supplier enough information to recommend a product-level construction rather than guessing from the reflective grade alone.
Choosing an ABLAZE Reflective Sheeting System
Changzhou Zhenghe New Material Technology Co., Ltd. recommends evaluating the reflective face film, optical system, adhesive, liner, substrate and converting process as one finished system.
For flat road-sign panels, start with the ABLAZE road-safety and traffic-sign reflective sheeting range, then confirm the exact product against the project standard and panel treatment. Higher-brightness traffic-sign applications may require ABLAZE High Intensity Prismatic Reflective Sheeting.
For printable commercial graphics, compare the face-film and ink requirements in our Printable Reflective Sheeting Buying Guide. The adhesive must match the substrate, while the face film must match the printer, ink, flexibility and outdoor-life requirement.
Before recommending a sample, send us:
A clear photo of the application surface
Substrate name and coating information
Flat, curved, rigid or flexible application
Application and service temperatures
Indoor or outdoor environment
Required reflective grade and color
Printing and converting method
Expected service life
Applicable standard
Roll size and estimated quantity
Our team can then identify a suitable ABLAZE product for controlled sample testing. Contact Changzhou Zhenghe New Material Technology Co., Ltd. to discuss your substrate and application.
Frequently Asked Questions
Is Acrylic Adhesive Always Better Than Rubber Adhesive for Outdoor Reflective Sheeting?
No. Acrylic PSA is generally the stronger starting point for long-term UV, heat and weather resistance, but performance is formulation-specific. A specialized system must still be tested on the actual substrate.
What Is the Best Adhesive for Reflective Sheeting on Aluminum?
A permanent outdoor acrylic pressure-sensitive adhesive formulated for properly prepared aluminum is commonly used. The aluminum must be clean, dry, stable and treated according to the product and project specification.
Will Reflective Sheeting Stick to Polyethylene or Polypropylene?
Standard reflective sheeting adhesive may not bond reliably to untreated PE or PP because they have low surface energy. Use an LSE-rated adhesive and evaluate approved surface treatment on the actual plastic.
Can Reflective Sheeting Be Applied to Powder-Coated Metal?
Sometimes, but powder coats vary widely. Test the exact coating, texture, cure and batch because some powder-coated surfaces have low surface energy or additives that reduce adhesion.
Does High Initial Tack Mean Better Outdoor Durability?
No. Initial tack measures rapid grab. Outdoor durability also depends on cohesive strength, UV and heat resistance, water and chemical resistance, film stress and edge protection.
Can Primer Solve Poor Adhesion?
A compatible primer may improve bonding on certain difficult surfaces, but it is not a universal repair. Primer can affect removability, appearance, warranty and substrate chemistry. Use only a qualified primer and controlled process.
How Long Does Reflective Sheeting Adhesive Take to Reach Full Strength?
Bond development varies by adhesive, substrate, pressure and temperature. Many PSAs gain adhesion over 24–72 hours or longer. Follow the exact product data rather than assuming one fixed time.
Can I Apply Reflective Sheeting in Cold Weather?
Only when the substrate and material are at or above the product’s minimum application temperature, or the product is specifically designed for low-temperature application. Cold service after proper bonding is a separate requirement.
Why Does Reflective Sheeting Bubble on Polycarbonate?
Polycarbonate can release trapped gases after lamination. Heat and sunlight can accelerate the process. Qualify the panel with an outgassing test and use a compatible film and adhesive system.
Can a Stronger Adhesive Make Rigid Reflective Sheeting Conform to a Tight Curve?
Not reliably. A rigid film stores recovery stress when forced around a curve. Choose a face film and adhesive construction designed for the required conformability.
Final Buyer Checklist
Before approving reflective sheeting for production, confirm:
Adhesive chemistry and backing type are identified
Exact substrate and coating are documented
Minimum application temperature is known
Service-temperature and outdoor exposure are defined
Paint or powder coat is fully cured
Surface preparation is repeatable
Sample is applied with controlled pressure
Adhesion is checked after a defined dwell time
Peel-test conditions and pass values are agreed
Failure interface is recorded
Water, heat, cold and chemical tests match the application
Full-size production trial is completed
Reflective performance and adhesive performance are both accepted
The best reflective sheeting adhesive is not simply the one that feels stickiest when the liner is removed. It is the adhesive that wets the actual substrate, survives the service environment and remains compatible with the complete reflective sheeting construction throughout its required life.
RELATED NEWS
# Trust, Then Measure: A Goods-In Inspection Routine for Reflective Sheeting **A certificate in an email is not an inspection. Here is the routine that catches a wrong lot, a degraded roll or a misma
Trust, Then Measure: A Goods-In Inspection Routine for Reflective SheetingA certificate in an email is not an inspection. Here is the routine that catches a wrong lot, a degraded roll or a mismatched batch while it is still the mill's problem — not yours.A distributor takes delivery of a pallet of p
The Cheapest Roll, the Most Expensive Sign: Costing Reflective Sheeting Over Its Whole Life
The Cheapest Roll, the Most Expensive Sign: Costing Reflective Sheeting Over Its Whole LifeSheeting is a small share of what a sign costs to put in the ground. Service life is not. Here is how to build the arithmetic that actually decides which material is cheaper.A contractor wins a signing package
