Ablaze Reflective Sheeting for License Plates

Government-Grade Reflective Sheeting for Motor Vehicle License Plates

ABLAZE HW8200 is an acrylic glass-bead reflective sheeting developed specifically for motor vehicle license plate manufacturing.

Unlike ordinary traffic sign sheeting or commercial reflective vinyl, license plate reflective sheeting must remain stable after being laminated to aluminum, punched, embossed, printed and hot stamped. It must also maintain the required color, adhesion and retroreflective performance throughout long-term outdoor service.

HW8200 is designed for professional license plate production systems, including:

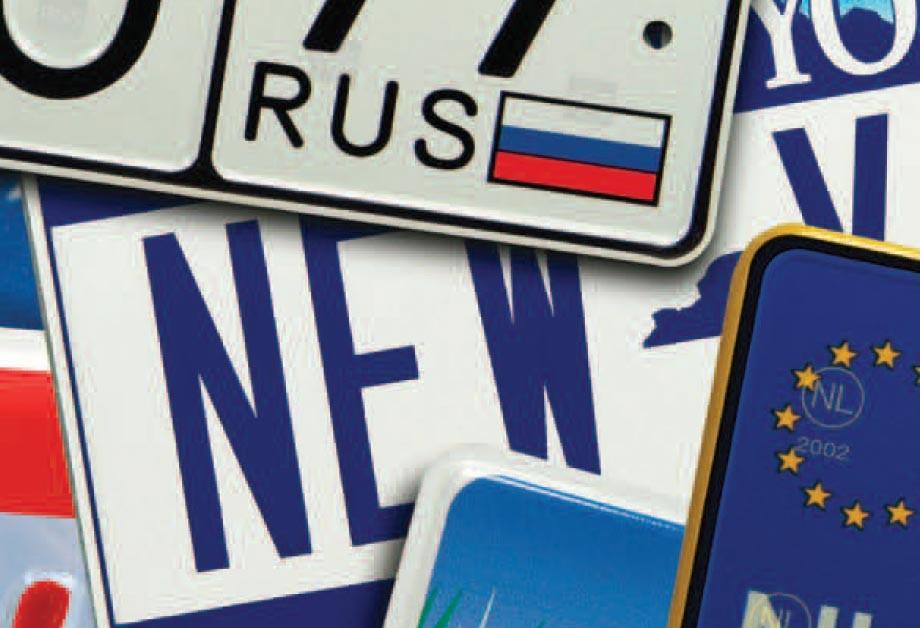

• Passenger vehicle license plates

• Commercial vehicle and truck plates

• Motorcycle license plates

• Trailer and special vehicle plates

• Low-speed vehicle identification plates

• New energy vehicle license plates

• Other government-controlled vehicle identification systems

ABLAZE HW8200 is suitable for centralized license plate factories, authorized personalization centers and high-volume government procurement projects.

Proven Supply Experience in Provincial License Plate Projects

ABLAZE is the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd.

Our company has successfully won competitive tenders for motor vehicle license plate reflective sheeting in several Chinese provinces and is currently supplying reflective materials to multiple provincial license plate production programs.

This experience gives ABLAZE practical knowledge of the requirements involved in government procurement and large-scale plate manufacturing, including:

• Batch-to-batch color consistency

• Stable retroreflectivity

• Aluminum lamination performance

• Embossing resistance

• Hot stamping compatibility

• Production traceability

• Consistent delivery for long-term projects

• Technical and compliance documentation support

Our product development is based not only on flat-sheet laboratory performance, but also on the converting and quality-control requirements of actual industrial license plate production.

Technical Specifications of HW8200 License Plate Reflective Sheeting

Actual service life depends on the climate, plate construction, aluminum preparation, production method, storage conditions and applicable project specification.

Adhesion Performance

HW8200 uses a permanent pressure-sensitive adhesive designed for bonding to properly prepared aluminum substrates.

Under the stated internal test condition of a 0.8 kg load applied for five minutes to a 10 cm test length, the measured displacement should not exceed 2 cm.

Final adhesion performance depends on:

• Aluminum surface cleanliness

• Aluminum surface treatment

• Lamination pressure

• Processing temperature

• Storage condition

• Time allowed for adhesive bonding

The aluminum must be clean, dry and free from oil, oxidation, dust and other contaminants before lamination.

Embossing Durability

HW8200 is designed to deform together with the aluminum plate during mechanical embossing without excessive cracking, whitening or delamination.

A representative evaluation method includes:

1. Laminating the sheeting to a 440 × 140 mm aluminum plate

2. Embossing the plate using the specified production tooling

3. Conditioning the embossed plate at −40 ± 3°C for two hours

4. Returning the sample to room temperature for one hour

5. Conditioning the sample at 70 ± 2°C for two hours

6. Inspecting the embossed characters for cracking, lifting or separation

The reflective film should remain intact after the specified conditioning cycle.

Daytime Color and Luminance Factor

Color measurements are performed using a D65 standard illuminant under 45/0 measurement geometry with a 2° standard observer.

Minimum Coefficient of Retroreflection

Unit: cd/lx/m²

The applicable minimum values and measurement conditions should always be confirmed against the latest project specification and test report.

Material Structure of HW8200

HW8200 uses a multilayer acrylic glass-bead retroreflective construction.

The main layers include:

1. UV-resistant acrylic/PMMA face film

2. Precision glass-bead optical layer

3. Focusing and bonding resin layer

4. Vacuum-metallized aluminum reflective layer

5. Permanent pressure-sensitive adhesive

6. Poly-coated release liner

The glass beads receive incoming light through the transparent face film. The optical and aluminum layers redirect the light back toward its source, creating the nighttime retroreflective effect.

This structure provides a balance of:

• Stable optical performance

• Daytime color consistency

• Flexibility during embossing

• Reliable hot stamping compatibility

• Strong aluminum adhesion

• Outdoor weather resistance

Technical Performance of HW8200

Reliable Nighttime Retroreflectivity

The glass-bead optical structure returns vehicle headlight illumination toward the driver, enforcement officer or camera system.

Stable retroreflectivity helps improve:

• Nighttime plate visibility

• Vehicle identification

• Character recognition

• Traffic enforcement efficiency

• Roadside safety

Retroreflectivity should be evaluated on the finished plate because printing, embossing, contamination and surface damage can affect final performance.

Excellent Embossing Resistance

HW8200 is engineered for the localized stretching that occurs when letters, numbers and borders are mechanically raised.

A suitable plate film should resist:

• Cracking at character corners

• Whitening along embossed edges

• Surface splitting

• Adhesive separation

• Delamination around raised characters

• Loss of reflective uniformity

Final performance depends on the reflective sheeting, aluminum temper, embossing pressure, die clearance, tooling condition and processing temperature.

Stable Hot Stamping Compatibility

After embossing, the raised characters can be colored using a compatible hot stamping foil.

HW8200 is designed to support:

• Uniform pigment transfer

• Sharp character edges

• Strong foil adhesion

• High color contrast

• Reduced pinholes and missing areas

• Efficient high-volume production

Hot stamping conditions must be optimized according to the foil, machine, temperature, pressure and production speed. The reflective sheeting and hot stamping foil should always be tested together before mass production.

Multiple License Plate Conversion Processes

Depending on the approved plate system, HW8200 can support:

• Aluminum coil or sheet lamination

• Mechanical embossing

• Hot stamping

• Roller coating

• Screen printing

• Background graphic printing

• Security-mark incorporation

• Plate blanking and edge forming

Compatibility should be confirmed through a complete plate-conversion trial rather than by testing only the flat reflective film.

Long-Term Outdoor Durability

HW8200 is designed to resist outdoor conditions commonly experienced by motor vehicle license plates, including:

• Ultraviolet exposure

• Rain and moisture

• Temperature variation

• Road dust and pollution

• Vehicle washing

• Normal transportation chemicals

• Long-term outdoor aging

Actual durability depends on environmental exposure, plate construction, processing quality and maintenance conditions.

Quality Control for License Plate Reflective Sheeting

Changzhou Zhenghe New Material Technology Co., Ltd. applies quality control throughout the production of ABLAZE HW8200 to maintain stable performance for government and industrial license plate projects.

Retroreflectivity Inspection

Retroreflective performance is measured under specified observation and entrance angles to verify:

• Minimum coefficient of retroreflection

• Reflective uniformity

• Roll-to-roll consistency

• Batch-to-batch stability

• Performance of white, yellow and blue materials

Measurements should be conducted using calibrated retroreflective testing equipment.

Color and Luminance Inspection

Daytime color and luminance factor are checked under controlled measurement conditions.

This helps control:

• Color-coordinate compliance

• Visual uniformity across the roll

• Batch color consistency

• Finished-plate background appearance

• Matching between paired license plates

Adhesive Performance Testing

The adhesive system is evaluated for:

• Initial tack

• Bonding strength

• Holding performance

• Adhesion to prepared aluminum

• Resistance to edge lifting

• Stability after temperature conditioning

Because contamination can significantly reduce adhesion, aluminum surface preparation should also be included in production-line quality control.

Embossing Performance Testing

Laminated aluminum samples are embossed and inspected for:

• Cracks

• Whitening

• Film lifting

• Delamination

• Character-edge damage

• Plate distortion

• Reflective appearance around embossed areas

Testing the finished embossed plate is essential because an acceptable flat roll can still fail during mechanical forming.

Hot Stamping and Printing Inspection

Converted samples are inspected for:

• Complete foil transfer

• Character color uniformity

• Sharp character edges

• Pinholes

• Background pickup

• Hot stamping adhesion

• Screen-printing adhesion

• Resistance to rubbing and normal cleaning

The hot stamping foil, reflective sheeting and machine settings must be evaluated as one system.

Environmental and Durability Testing

Depending on the project specification, testing may include:

• High- and low-temperature conditioning

• Temperature cycling

• Water resistance

• Humidity resistance

• Outdoor weathering

• UV aging

• Chemical resistance

• Adhesion retention

• Retroreflectivity retention

• Color stability

Batch Identification and Traceability

For government procurement and large-volume projects, material identification and production records can be maintained to support:

• Batch traceability

• Quality documentation

• Complaint investigation

• Project-specific inspection

• Long-term supply management

Applications of HW8200 License Plate Reflective Sheeting

Passenger Vehicle License Plates

Suitable for standard passenger cars and other civilian motor vehicle registration systems.

Commercial Vehicle and Truck Plates

Provides reflective visibility and durable identification for trucks, buses, logistics fleets and other commercial vehicles.

Motorcycle License Plates

Suitable for motorcycle and other two-wheel vehicle registration plate systems.

Trailer and Special Vehicle Plates

Can be used for trailers, agricultural vehicles, engineering vehicles and other regulated vehicle categories.

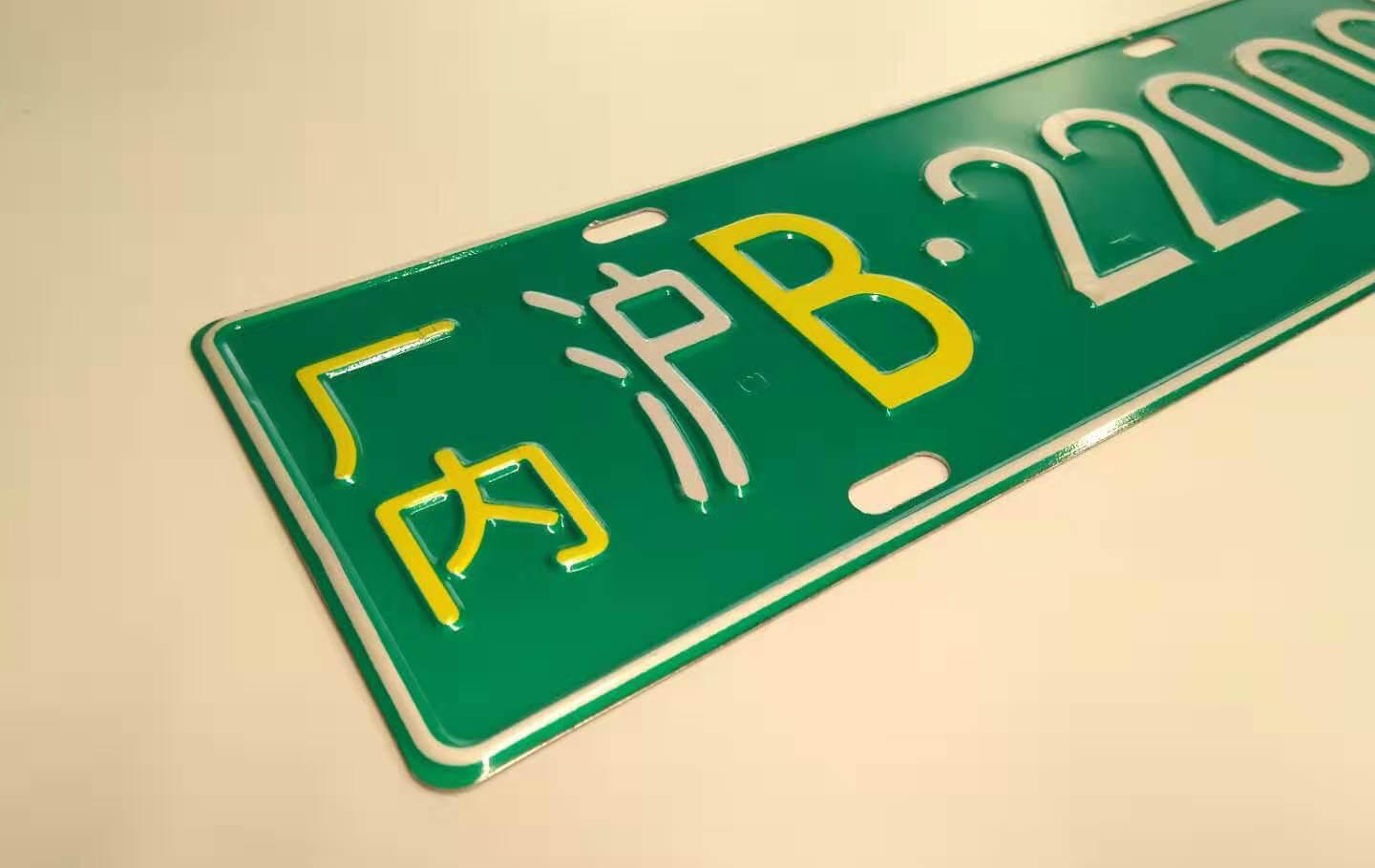

New Energy Vehicle License Plates

Available for license plate production systems requiring specific colors, layouts and processing methods for electric and new energy vehicles.

Government Vehicle Registration Projects

Designed for centralized plate factories, authorized production facilities and government-controlled vehicle identification programs.

Government Project and OEM Supply Capability

ABLAZE supports license plate manufacturers, authorized plate-production organizations and government procurement projects with:

• Standard and customized roll widths

• Project-specific colors

• Customized roll lengths

• Adhesive and release-liner configuration

• Background printing

• Watermarks and security graphics

• Serial-number or code integration

• Compliance documentation

• Batch identification

• Export packaging

• Production trial support

• Stable bulk-order supply

Security graphics, watermarks and project-specific identification elements are developed and supplied according to the customer’s authorization and technical requirements.

Support for International License Plate Projects

HW8200 is primarily developed for professional motor vehicle license plate production. For international projects, the product can be evaluated against the buyer’s specified plate standard and manufacturing process.

Relevant international or regional references may include ISO 7591 and other country-specific vehicle registration plate requirements.

Standards are not interchangeable. Final compliance must be confirmed through the required testing and approval procedures of the target country or issuing authority.

Before recommending a material configuration, ABLAZE requests information including:

• Target country and applicable standard

• Plate dimensions

• Required colors

• Aluminum thickness and temper

• Embossing method

• Character height

• Hot stamping foil

• Printing process

• Security-feature requirements

• Annual purchasing volume

Packaging, Shipping and Storage

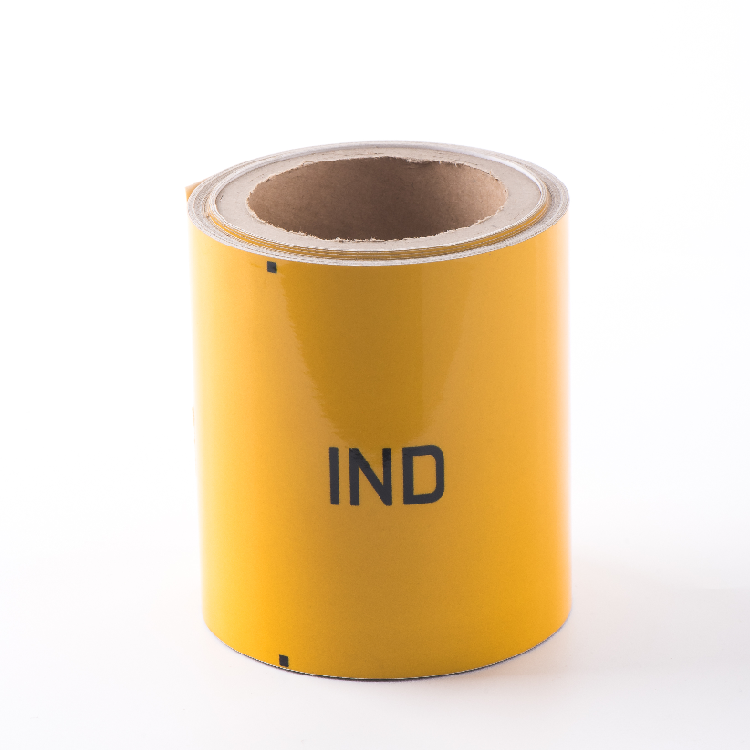

Standard Packaging

Customized roll widths, lengths, labels, cartons and shipping marks are available for approved OEM and project orders.

Shipping Methods

• Sea freight for bulk orders

• Air freight for urgent orders

• International express delivery for samples

Storage Recommendations

• Store in a clean, cool and dry indoor environment

• Keep the rolls in their original packaging

• Avoid direct sunlight, heat sources and moisture

• Recommended storage temperature: 18–24°C

• Recommended relative humidity: 30–50%

• Store rolls vertically or according to the specified packaging method

• Use the material within the recommended storage period

• Allow cold material to reach the processing-room temperature before opening the package

Proper storage helps maintain adhesive performance, surface quality and embossing stability.

Technical FAQ

What is HW8200 license plate reflective sheeting?

HW8200 is an acrylic glass-bead retroreflective sheeting developed for motor vehicle license plate production. It is designed for lamination to aluminum and subsequent embossing, hot stamping, roller coating or screen printing.

Does HW8200 comply with GA 666-2018?

HW8200 is designed and manufactured to meet the applicable technical requirements of GA 666-2018 for motor vehicle license plate reflective sheeting. Buyers may request the current test and compliance documentation applicable to their project.

Has ABLAZE supplied government license plate projects?

Yes. Changzhou Zhenghe New Material Technology Co., Ltd. has successfully won license plate reflective sheeting tenders in several Chinese provinces and currently supplies materials to multiple provincial license plate production programs.

Can HW8200 be embossed without cracking?

HW8200 is engineered for mechanical embossing. Final results depend on aluminum temper, plate temperature, embossing pressure, die clearance, character geometry and tooling condition. A production trial is recommended before bulk use.

Is HW8200 compatible with hot stamping?

Yes. HW8200 supports compatible license plate hot stamping systems. The selected foil, temperature, pressure and production speed must be tested together before mass production.

Can ordinary traffic sign sheeting replace HW8200?

Ordinary traffic sign sheeting should not be used unless it has been approved for the complete license plate conversion process. License plate sheeting must withstand aluminum lamination, punching, embossing, character coloring and long-term outdoor service.

What colors are available?

Standard colors include white, yellow and blue. Project-specific colors should be confirmed according to the applicable license plate standard and minimum order quantity.

Does ABLAZE support customized security features?

Yes. Depending on project authorization and technical feasibility, ABLAZE can support background graphics, watermarks, logos, serial numbers, barcodes, 2D codes and other security or traceability elements.

Can ABLAZE provide samples for production testing?

Yes. Samples can be provided for lamination, embossing, hot stamping, printing, adhesion and retroreflectivity evaluation. Customers should provide information about their aluminum, machine, foil and target standard before testing.

Contact ABLAZE

For samples, technical data, compliance documents or a customized quotation, please send us:

• Target country or province

• Applicable plate standard

• Required color

• Roll or sheet dimensions

• Aluminum specification

• Embossing and hot stamping method

• Security-feature requirements

• Estimated annual volume

Contact Changzhou Zhenghe New Material Technology Co., Ltd. to evaluate ABLAZE HW8200 for your license plate production project.
