How Does Reflective Tape Work?

You have probably seen reflective tape on trucks, traffic signs, safety barriers, construction equipment, and commercial signs.

During the day, it may look like an ordinary colored material. But when headlights or a flashlight hit it at night, the surface suddenly appears much brighter.

So, how does reflective tape work?

The answer is retroreflection.

Reflective tape contains microscopic optical elements—typically glass beads or microprisms—that redirect incoming light back toward the direction it came from. That returned light is what makes the material highly visible to a driver or person positioned near the light source.

Quick Answer: How Does Reflective Tape Work?

Reflective tape does not create its own light.

Instead, it works through a simple process:

Light Source → Reflective Tape → Returned Light → Observer

For example:

Vehicle Headlights → Reflective Tape → Returned Light → Driver

This is why reflective traffic signs and vehicle markings become much easier to see at night.

Most reflective materials use one of two optical technologies:

• Glass bead retroreflection

• Microprismatic retroreflection

Both perform the same basic job, but they redirect light in different ways.

Reflective vs Retroreflective: What Is the Difference?

People often use the words “reflective” and “retroreflective” as if they mean exactly the same thing.

Technically, they are different.

A mirror is reflective. Light hits the surface and is redirected at another angle.

A retroreflective material is designed to return incoming light approximately toward the direction from which it came.

A simple way to remember the difference is:

Reflection redirects light. Retroreflection sends useful light back toward the source.

That light source may be:

• Vehicle headlights

• A flashlight

• Work lights

• Other directed illumination

This ability to return light toward the source makes retroreflective materials particularly useful for nighttime visibility and safety.

How Retroreflection Works

The real work happens inside the optical structure of the reflective material.

Reflective tape may look simple from the outside, but its surface contains thousands or even millions of tiny optical elements.

These elements control how incoming light travels through or across the material.

The two most common technologies are glass bead and microprismatic retroreflection.

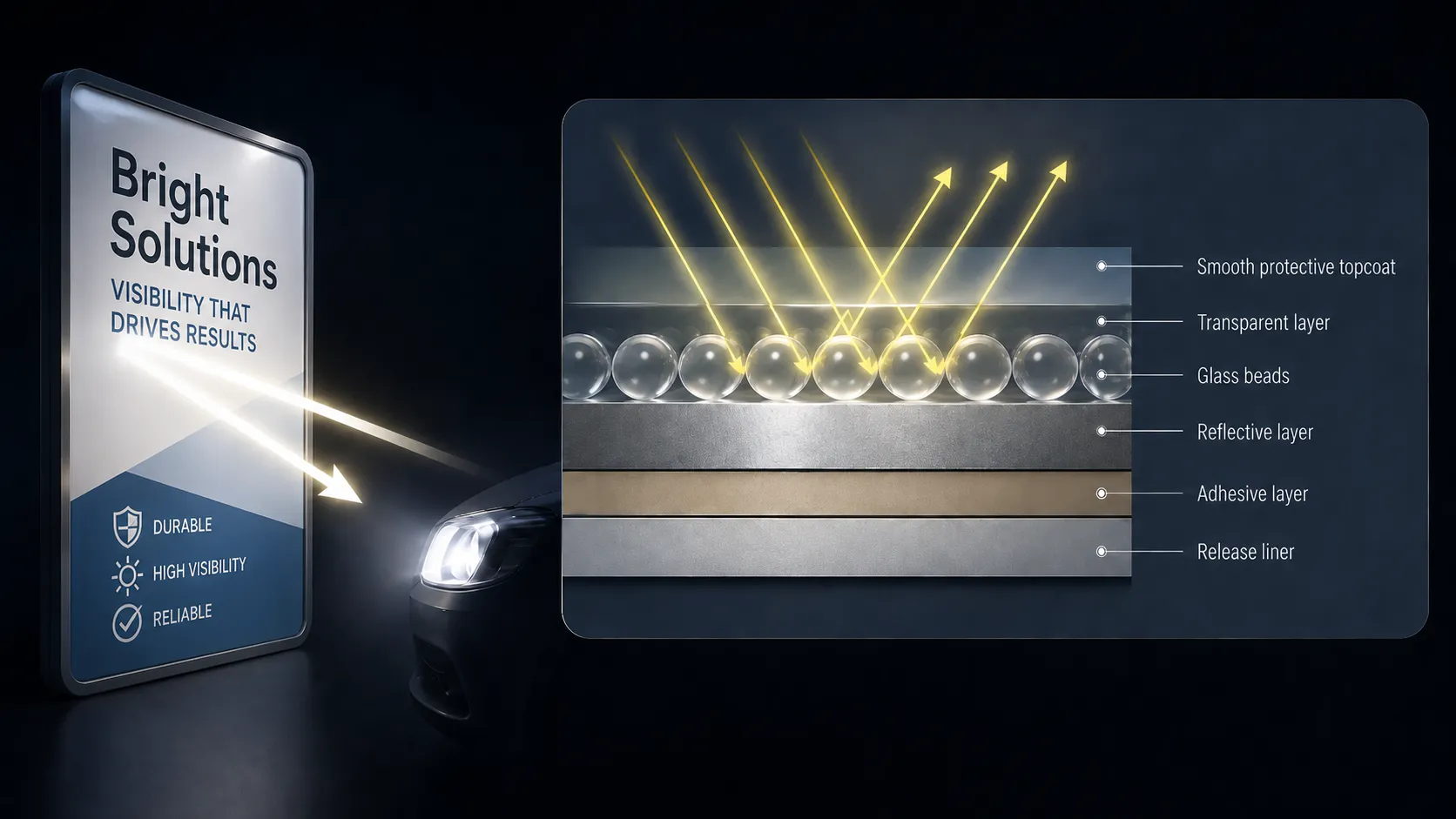

How Glass Bead Reflective Tape Works

Glass bead reflective material contains microscopic transparent glass spheres.

When light reaches the material:

1. Light enters the glass bead.

2. The curved surface refracts the incoming light.

3. The light interacts with the reflective layer behind the bead.

4. It travels back through the bead.

5. Part of the light returns toward the original source.

Millions of tiny beads repeat this process across the reflective surface.

This technology is widely used in economical and moderate-performance reflective materials.

Typical applications include:

• Commercial signs

• Advertising graphics

• Parking signs

• Property signs

• General safety markings

• Some Engineering Grade reflective products

Glass bead technology is valued for its balance of visibility, cost, flexibility, and general outdoor performance.

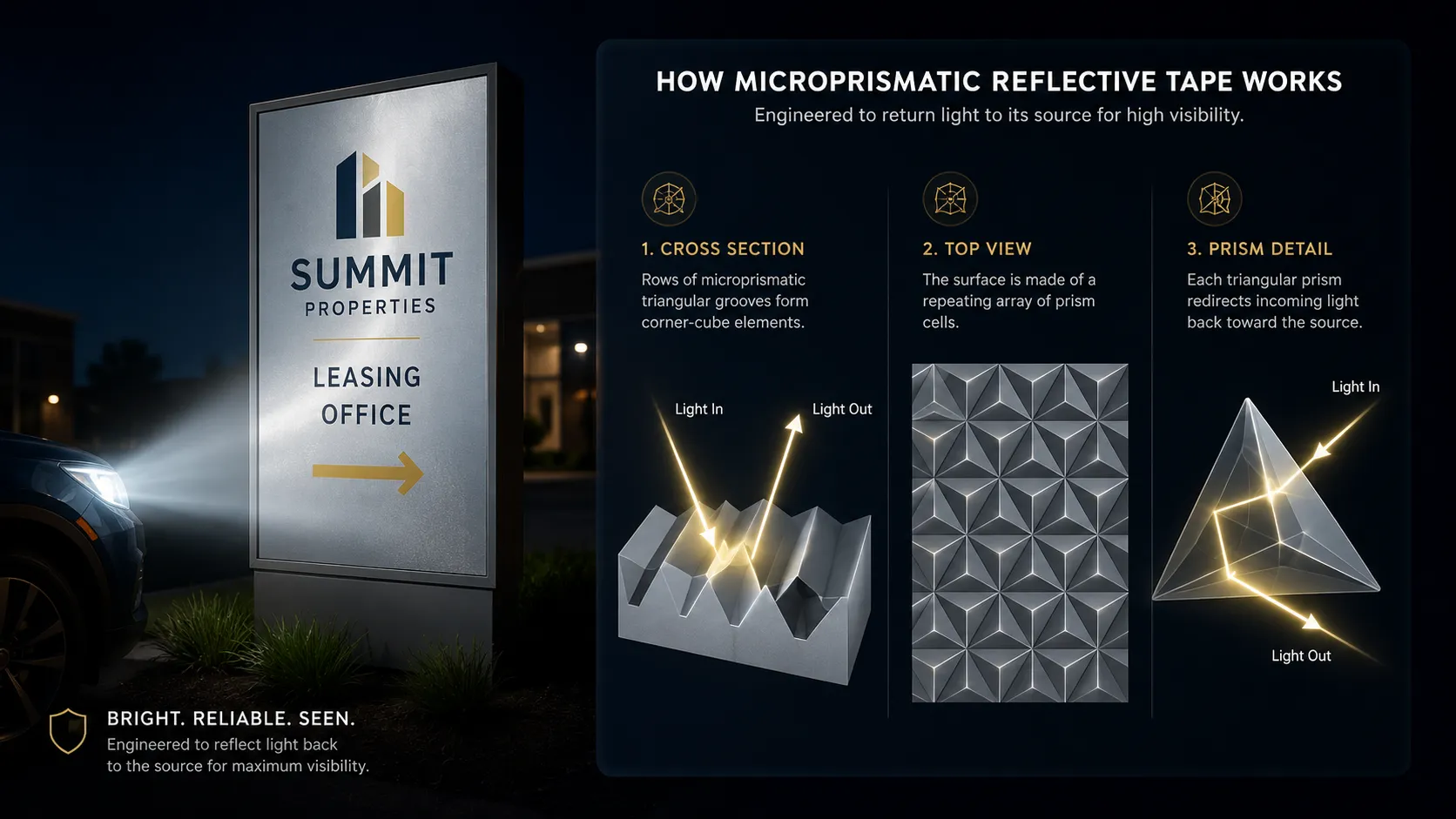

How Microprismatic Reflective Tape Works

Microprismatic reflective materials use very small geometric prism structures instead of spherical glass beads.

Incoming light enters the prism structure and undergoes controlled internal reflection before being redirected toward the original light source.

Because these optical structures can use incoming light efficiently, microprismatic materials generally provide stronger retroreflective performance than traditional glass bead materials.

Typical applications include:

• Traffic signs

• Warning signs

• Regulatory signs

• Construction-zone signs

• Highway signage

• Road-safety equipment

High Intensity Prismatic (HIP) reflective sheeting is one common example of microprismatic technology.

Higher-performance microprismatic materials are also used where greater nighttime visibility is required.

Glass Bead vs Microprismatic: What Is the Practical Difference?

Although both technologies are retroreflective, their optical structures and typical applications are different.

This does not mean that microprismatic reflective material is automatically the best choice for every project.

A commercial advertising sign and a highway warning sign have very different performance requirements.

The correct material should always be selected according to the application.

Why Does Reflective Tape Look So Bright at Night?

Imagine driving toward a traffic sign at night.

Your headlights send light toward the sign.

An ordinary surface scatters much of that light in different directions.

Retroreflective material redirects a useful portion of the light back toward your vehicle.

Because the driver's eyes are located relatively close to the headlights, the returned light makes the reflective surface appear much brighter.

This is why reflective tape can appear extremely bright even though it contains no internal light source.

The same principle is used on:

• Traffic signs

• Trucks

• Trailers

• Safety barriers

• Construction equipment

• Roadside delineators

• Industrial safety markings

What Is the Cone of Retroreflection?

Returned light does not travel back in one perfectly narrow line.

Instead, it spreads through a small area around the original light source.

This is often described as the cone of retroreflection.

If the observer is located within this useful return area, the reflective material appears bright.

If the observer moves too far away from the ideal viewing position, the apparent brightness may decrease.

This explains why the same reflective tape can look very bright from one position but noticeably weaker when viewed from another angle.

Observation Angle and Entrance Angle Matter

Reflective performance cannot be judged only by asking:

“How bright is this reflective tape?”

Viewing geometry also matters.

Two important concepts are observation angle and entrance angle.

Observation Angle

Observation angle relates to the separation between the illumination direction and the observer's viewing direction.

In a vehicle, this is influenced by the relationship between:

• The driver's eyes

• The headlights

• The reflective sign or marking

Different vehicle sizes and viewing distances can therefore affect how reflective material appears.

Entrance Angle

Entrance angle describes how the incoming light reaches the reflective surface.

For example, a sign directly in front of a vehicle has different lighting geometry from a sign located far to the side or mounted high above the road.

Different reflective technologies can respond differently to these viewing conditions.

For professional applications, buyers should therefore compare technical data measured under specified observation and entrance angles rather than relying only on a simple flashlight test.

Does Reflective Tape Glow in the Dark?

No.

This is one of the most common misunderstandings about reflective materials.

Reflective tape requires an external light source.

Without headlights, a flashlight, or another suitable source of illumination, normal reflective tape does not continuously emit light.

Glow-in-the-dark materials work differently.

Photoluminescent materials absorb energy from surrounding light and gradually release that stored energy after the environment becomes dark.

The difference can be summarized simply:

Reflective Tape:
Incoming light → immediate returned light

Photoluminescent Film:
Light absorbed → energy stored → glow released later

Therefore, the correct material depends on the application.

If vehicle headlights or another light source will normally be present, reflective material is often suitable.

If visibility is required during a power failure without an external light source, photoluminescent material may be more appropriate.

Where Is Reflective Tape Used?

Retroreflection is used across many different industries.

The required reflective performance depends heavily on the application.

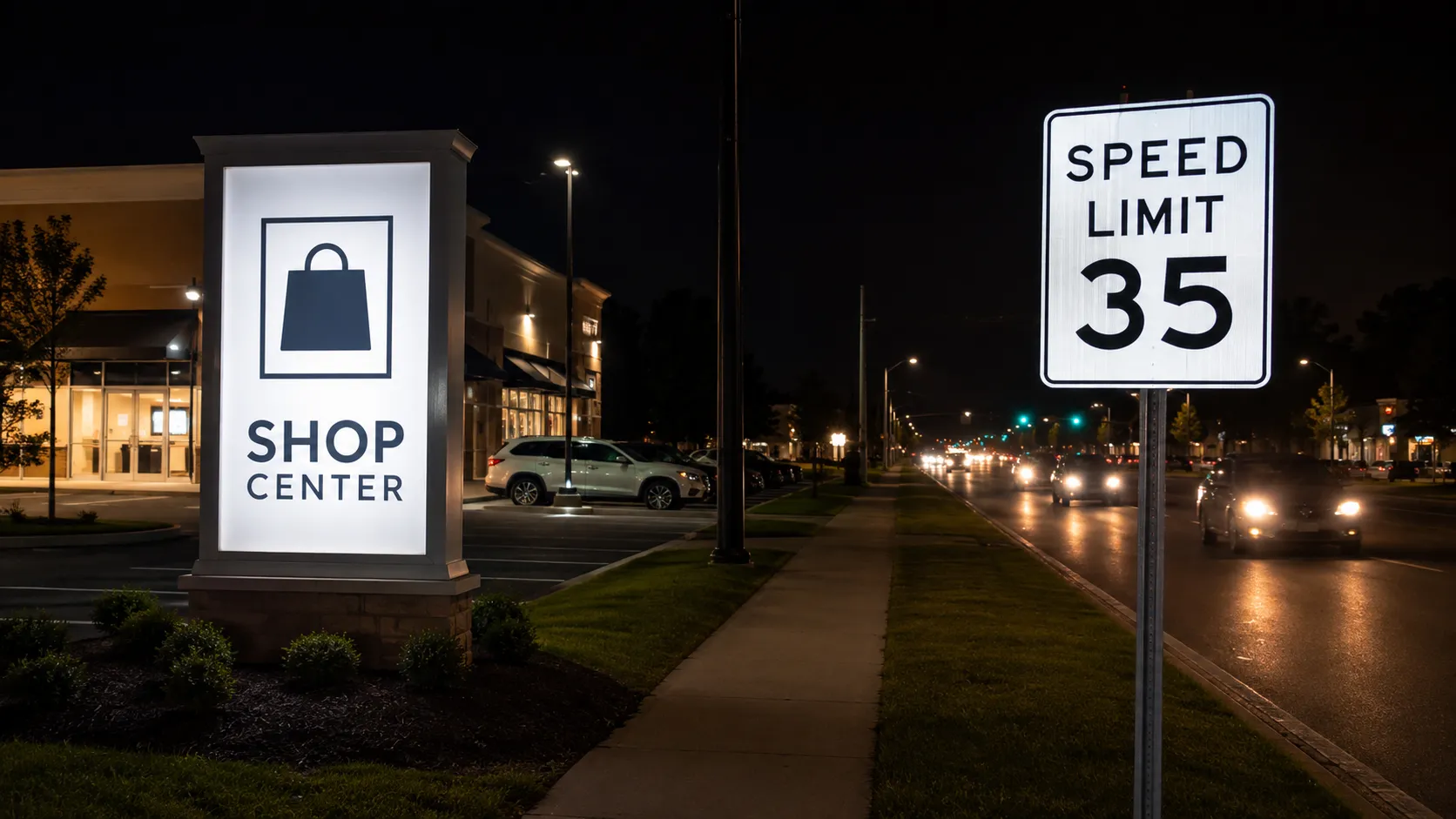

Traffic Signs

Traffic signs are one of the most familiar applications of reflective materials.

At night, vehicle headlights illuminate reflective sign sheeting so drivers can recognize:

• Warning signs

• Regulatory signs

• Direction signs

• Construction signs

• Guide signs

Higher-performance road environments generally require stronger retroreflective performance than ordinary commercial signage.

Trucks and Trailers

Reflective safety marking tape can help other drivers identify the position, width, and outline of a large vehicle at night.

Common applications include:

• Trucks

• Trailers

• Commercial vehicles

• Construction vehicles

• Heavy machinery

Red, white, yellow, and other reflective markings are frequently used depending on local regulations and applications.

Commercial and Advertising Signs

Not every reflective application is related to road traffic.

Reflective films can also be used for:

• Shop signs

• Promotional graphics

• Advertising boards

• Property signs

• Reflective stickers

• Commercial displays

For these applications, an economical advertising-grade material may be more practical than higher-cost traffic-grade reflective sheeting.

Industrial Safety Marking

Reflective materials are also commonly used around:

• Warehouses

• Factories

• Loading areas

• Barriers

• Machinery

• Hazard areas

• Safety equipment

The correct product depends on the required visibility, substrate, outdoor durability, and working conditions.

Which Reflective Technology Should You Choose?

The best way to choose reflective material is to start with the application rather than the technology name.

Choose a Cost-Effective Reflective Material When:

• The project is mainly commercial

• Moderate nighttime visibility is sufficient

• Cost is an important factor

• The material is used for advertising or general marking

• Maximum traffic-sign performance is not required

Consider Engineering Grade When:

• The project involves general outdoor signage

• Longer outdoor durability is required

• Moderate retroreflective performance is sufficient

• The application includes parking or property signs

Consider HIP or Microprismatic Material When:

• Higher nighttime visibility is required

• Traffic speeds are higher

• Signs need to be recognized from greater distances

• Long-term road-safety performance is important

• Project specifications require higher reflective performance

Using the most expensive reflective material is not always necessary.

The goal should be to match:

Performance + Application + Durability + Budget

What Affects Reflective Tape Performance?

Optical technology is only one part of reflective performance.

Actual visibility and service life can also be affected by:

• Surface cleanliness

• Adhesive quality

• Installation quality

• UV exposure

• Rain and humidity

• Dirt

• Abrasion

• Chemicals

• Viewing geometry

• Product age

For example, high-performance reflective tape covered with road dirt may appear much weaker than a clean surface.

Likewise, material that has faded, cracked, peeled, or physically deteriorated may no longer provide its original retroreflective performance.

Regular inspection and proper maintenance are therefore important for long-term outdoor applications.

FAQ About How Reflective Tape Works

Does Reflective Tape Need Electricity?

No.

Reflective tape does not require an internal electrical power source.

It uses external light from vehicle headlights, flashlights, or other illumination.

Why Does Reflective Tape Look Brighter With a Flashlight?

When you hold a flashlight close to your eyes or camera, the light source and viewing position are close together.

The reflective material returns part of that light toward you, making it appear very bright.

Is All Reflective Tape Made With Glass Beads?

No.

Modern reflective materials may use glass bead technology or microprismatic technology.

Is Microprismatic Tape Brighter Than Glass Bead Tape?

Microprismatic technology generally provides higher optical efficiency, but actual retroreflective performance depends on the specific product, grade, color, and measurement conditions.

Why Can't I Always See Reflective Tape From the Side?

Retroreflection depends on viewing geometry.

If you move outside the useful returned-light area, the material may appear less bright.

Does Reflective Tape Work During the Day?

Yes.

Reflective tape remains visible during daylight, but its retroreflective advantage becomes particularly important at night or in low-light conditions when a directed light source is present.

Is Reflective Tape the Same as Glow-in-the-Dark Tape?

No.

Reflective tape immediately returns incoming light.

Glow-in-the-dark material stores light energy and releases it gradually when the surrounding environment becomes dark.

Bottom Line

So, how does reflective tape work?

The principle is straightforward:

Light reaches the reflective material → glass beads or microprisms redirect the light → useful light returns toward the source.

This process is called retroreflection.

Glass bead technology provides a cost-effective solution for many commercial, advertising, and general visibility applications.

Microprismatic technology generally provides higher optical efficiency and is widely used in demanding traffic and road-safety applications.

The best material should be selected according to:

Application → Required Reflectivity → Viewing Conditions → Durability → Budget
