How to Choose the Right Reflective Grade for Traffic Signs

Introduction

Imagine driving down a highway late at night during heavy rain. Your headlights illuminate the road ahead, but without reflective traffic signs, finding the right exit or recognizing a sharp curve would become much more difficult. Reflective sheeting is one of the most important safety components of modern traffic signs, ensuring drivers receive critical information when visibility is poor.

However, not all reflective materials perform the same way. Traffic signs use different reflective grades depending on where they will be installed, how fast vehicles travel, the surrounding environment, and the required service life. Choosing the wrong reflective grade can lead to reduced nighttime visibility, increased maintenance costs, and even compromised road safety.

In this guide, we'll explain how reflective grades work, compare the major types of reflective sheeting available today, and help you determine which grade is the best choice for your traffic sign project.

Why Reflective Grades Matter for Road Safety

Traffic signs serve one purpose above all else: delivering information quickly and clearly. During the daytime, this seems straightforward. At night, however, the situation changes dramatically.

Unlike illuminated displays, conventional traffic signs rely entirely on vehicle headlights to become visible. This is where reflective sheeting plays a vital role.

High-quality reflective materials return light directly toward its source—a phenomenon known as retroreflection. This allows drivers to recognize signs from hundreds of feet away, giving them enough time to react safely.

Choosing the appropriate reflective grade affects several critical aspects of road safety, including:

• Longer nighttime detection distances

• Better visibility during rain and fog

• Improved sign recognition at high speeds

• Enhanced safety for older drivers

• Reduced accident risk at intersections and highways

Studies consistently show that higher-performance reflective sheeting improves driver recognition distance, especially on high-speed roads where every second matters.

Understanding How Reflective Sheeting Works

Before comparing different grades, it's helpful to understand how reflective sheeting actually works.

Unlike ordinary colored vinyl or painted surfaces, reflective sheeting is engineered to redirect incoming light back toward its source instead of scattering it in multiple directions.

This unique optical property enables traffic signs to remain bright and highly visible even in complete darkness.

The Science Behind Retroreflection

Retroreflection occurs when incoming light is redirected back toward the driver's headlights.

Imagine throwing a tennis ball against a wall—it bounces away in another direction. Now imagine throwing it into a funnel that sends it almost directly back toward you. Reflective sheeting behaves much like that funnel.

The efficiency of this process determines how bright a traffic sign appears at night.

Several factors influence retroreflective performance:

• Material structure

• Viewing angle

• Entrance angle

• Weather conditions

• Vehicle headlight intensity

Higher-grade reflective sheeting is designed to maintain brightness across wider viewing angles and longer distances.

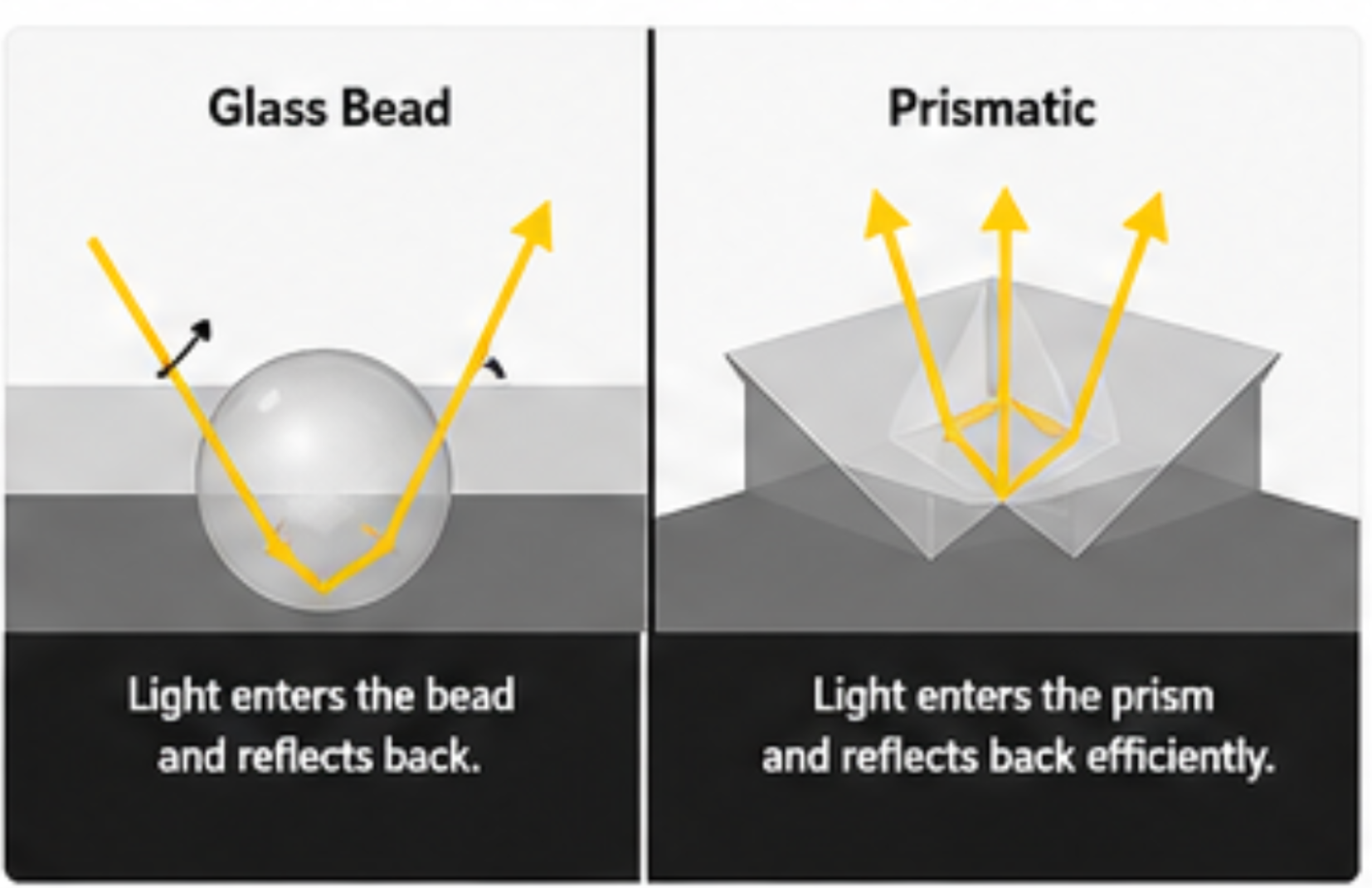

Glass Bead vs. Prismatic Technology

Modern reflective sheeting generally falls into two major technology categories.

Glass Bead Reflective Sheeting

Glass bead reflective sheeting contains millions of microscopic glass spheres embedded within the film.

Each tiny sphere acts like a miniature lens, bending incoming light before reflecting it back toward the vehicle.

Advantages include:

• Cost-effective

• Smooth appearance

• Suitable for urban roads

• Easy manufacturing

Limitations include:

• Lower brightness

• Shorter visibility distance

• Reduced performance under demanding highway conditions

Glass bead technology is commonly used for Commercial Grade and Engineering Grade reflective sheeting.

Prismatic Reflective Sheeting

Prismatic reflective sheeting uses thousands of microscopic cube-corner prisms instead of glass beads.

Rather than relying on curved glass spheres, these precisely engineered prisms efficiently redirect light back toward the driver.

The result is dramatically higher retroreflectivity and longer recognition distances.

Key advantages include:

• Much brighter at night

• Longer viewing distance

• Superior performance during rain

• Excellent wide-angle visibility

• Longer outdoor durability

This technology is used in High Intensity Prismatic (HIP) and Diamond Grade reflective sheeting.

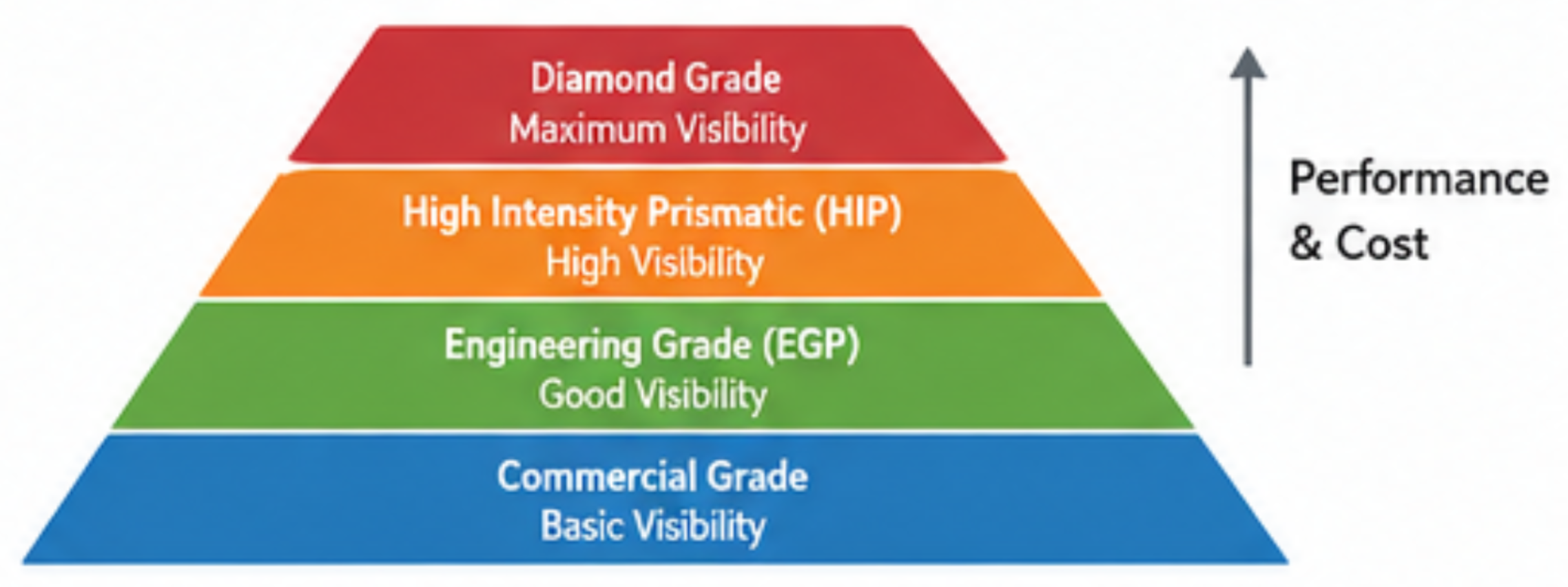

Overview of Reflective Sheeting Grades

Choosing the correct reflective grade begins with understanding the characteristics of each option.

Although different countries may have slightly different standards, most traffic sign materials fall into four major categories.

Commercial Grade Reflective Sheeting

Commercial Grade is typically the entry-level reflective material designed for applications where maximum brightness is not essential.

It is commonly found on:

• Parking signs

• Temporary information signs

• Indoor safety signs

• Warehouse identification

• Commercial advertising boards

Typical Characteristics

Because of its limited retroreflective performance, Commercial Grade is generally not recommended for permanent public road traffic signs.

Engineering Grade Reflective Sheeting (EGP)

Engineering Grade Reflective Sheeting is one of the most widely used materials for permanent traffic signs worldwide.

It offers a practical balance between performance, durability, and cost, making it a popular choice for municipalities and urban road networks.

Engineering Grade sheeting is suitable for:

• Speed limit signs

• Parking regulations

• Local street name signs

• Residential traffic control

• Urban directional signs

Advantages

• Affordable pricing

• Reliable daytime appearance

• Good nighttime visibility

• Long service life

• Easy fabrication

For many city streets with moderate traffic speeds, Engineering Grade provides sufficient performance while helping control project costs.

When Is Engineering Grade the Right Choice?

Engineering Grade works best when traffic conditions are relatively predictable.

It is commonly recommended for:

• Urban roads

• Residential communities

• Municipal streets

• Industrial parks

• School zones

• Bicycle paths

• Low-speed intersections

If vehicles typically travel below 60 km/h (40 mph), Engineering Grade often delivers an excellent balance between visibility and budget.

However, as traffic speeds increase, driver reaction time decreases significantly. In these situations, higher-performance reflective materials become increasingly important.

High Intensity Prismatic (HIP) Reflective Sheeting

As road speeds increase, so do the demands placed on traffic signs. Drivers traveling at highway speeds have only a few seconds to identify, understand, and react to road information. This is where High Intensity Prismatic (HIP) Reflective Sheeting becomes the preferred solution.

Unlike Engineering Grade materials, HIP reflective sheeting uses advanced microprismatic technology, which significantly improves brightness and long-distance visibility. Instead of relying on glass beads, thousands of precisely engineered cube-corner prisms efficiently redirect light back toward approaching vehicles.

Because of its superior optical performance, HIP reflective sheeting has become a standard choice for many national highways and major transportation projects around the world.

Typical Applications

HIP reflective sheeting is commonly used for:

• Highway regulatory signs

• Directional guide signs

• Expressway exits

• Major intersection signs

• Warning signs on high-speed roads

• Permanent construction safety signs

Key Advantages

• Excellent nighttime visibility

• Long recognition distance

• Outstanding performance in rain and fog

• High durability for outdoor environments

• Lower maintenance frequency

• Better readability at wider viewing angles

Compared with Engineering Grade, HIP reflective sheeting can provide significantly greater brightness, allowing drivers to recognize important information much earlier.

Diamond Grade Reflective Sheeting (DG)

When maximum visibility is required, Diamond Grade Reflective Sheeting represents the highest level of reflective performance available for traffic signs.

Diamond Grade is also based on microprismatic technology but incorporates even more advanced optical engineering to maximize retroreflectivity. It delivers exceptional brightness at long distances and across wide observation angles, making it ideal for the most demanding road environments.

Many transportation authorities specify Diamond Grade for locations where driver reaction time is critical.

Typical Applications

Diamond Grade reflective sheeting is commonly installed on:

• Freeways

• Motorways

• High-speed expressways

• Overhead guide signs

• Complex interchanges

• Airport traffic systems

• High-risk intersections

Key Advantages

• Maximum retroreflective performance

• Superior long-distance visibility

• Excellent readability in adverse weather

• Outstanding durability

• Reduced replacement frequency

• Enhanced safety for aging drivers

Although Diamond Grade has a higher initial cost, its extended service life and reduced maintenance requirements often result in lower lifetime ownership costs.

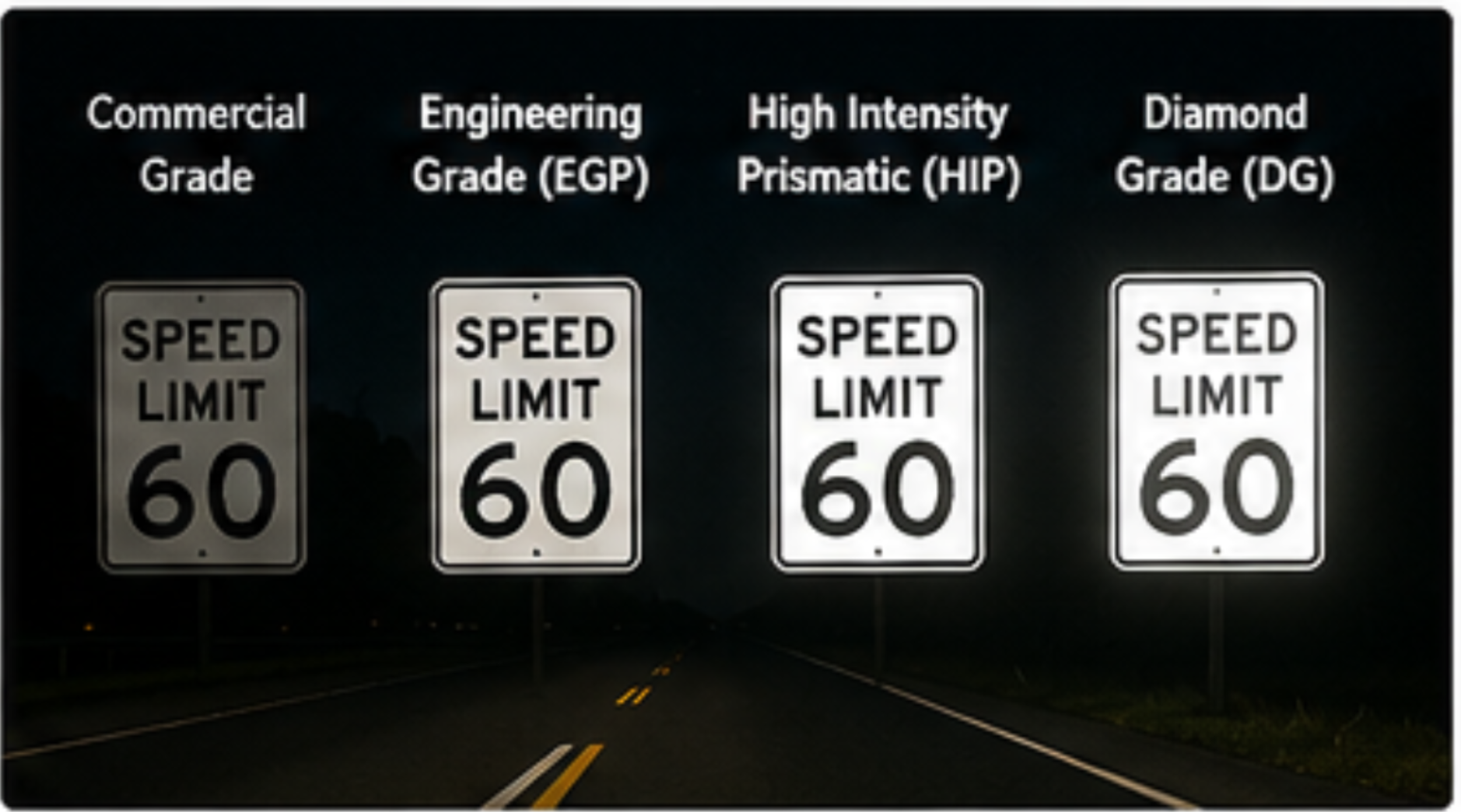

Reflective Grade Comparison

Selecting the right material becomes much easier when the differences are viewed side by side.

This comparison highlights an important principle: higher traffic speeds require higher reflective performance.

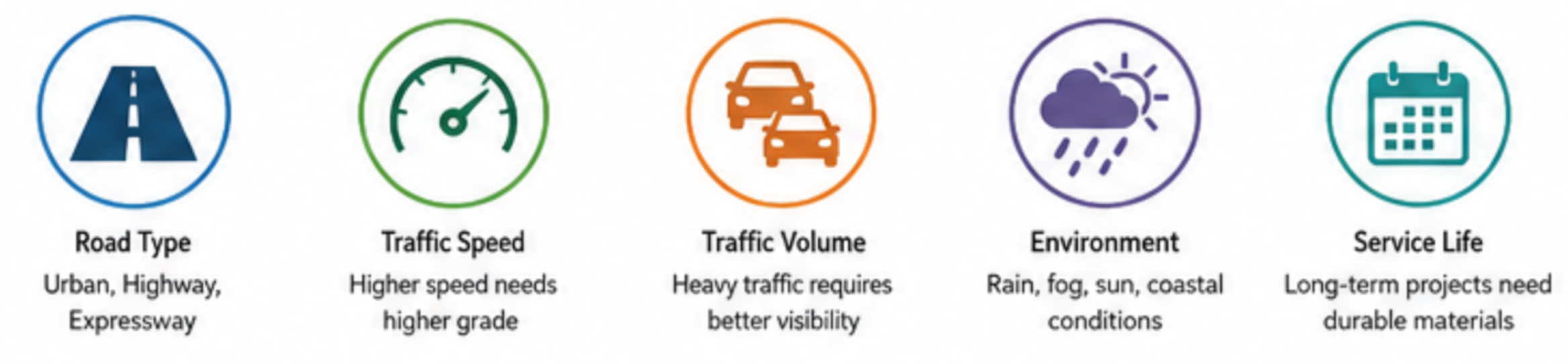

Factors to Consider Before Choosing a Reflective Grade

Choosing reflective sheeting isn't simply about buying the brightest material available. The best solution depends on how and where the traffic sign will be used.

Let's examine the most important factors.

Road Type

Different roads present different safety requirements.

Urban Streets

City roads generally have:

• Lower vehicle speeds

• Frequent street lighting

• Heavy pedestrian traffic

• Shorter stopping distances

Engineering Grade reflective sheeting is often sufficient for these environments.

Highways and Expressways

High-speed roads require drivers to identify signs from much greater distances.

For these applications, transportation agencies typically recommend:

• HIP Reflective Sheeting

• Diamond Grade Reflective Sheeting

These materials provide earlier sign recognition and improve driver reaction time.

Traffic Speed

Vehicle speed has one of the greatest influences on reflective material selection.

Consider this simple example:

A vehicle traveling at 40 km/h covers approximately 11 meters per second.

At 100 km/h, the same vehicle travels nearly 28 meters every second.

This means drivers have dramatically less time to read and react to traffic signs.

Higher reflective performance helps compensate by increasing the distance at which signs become visible.

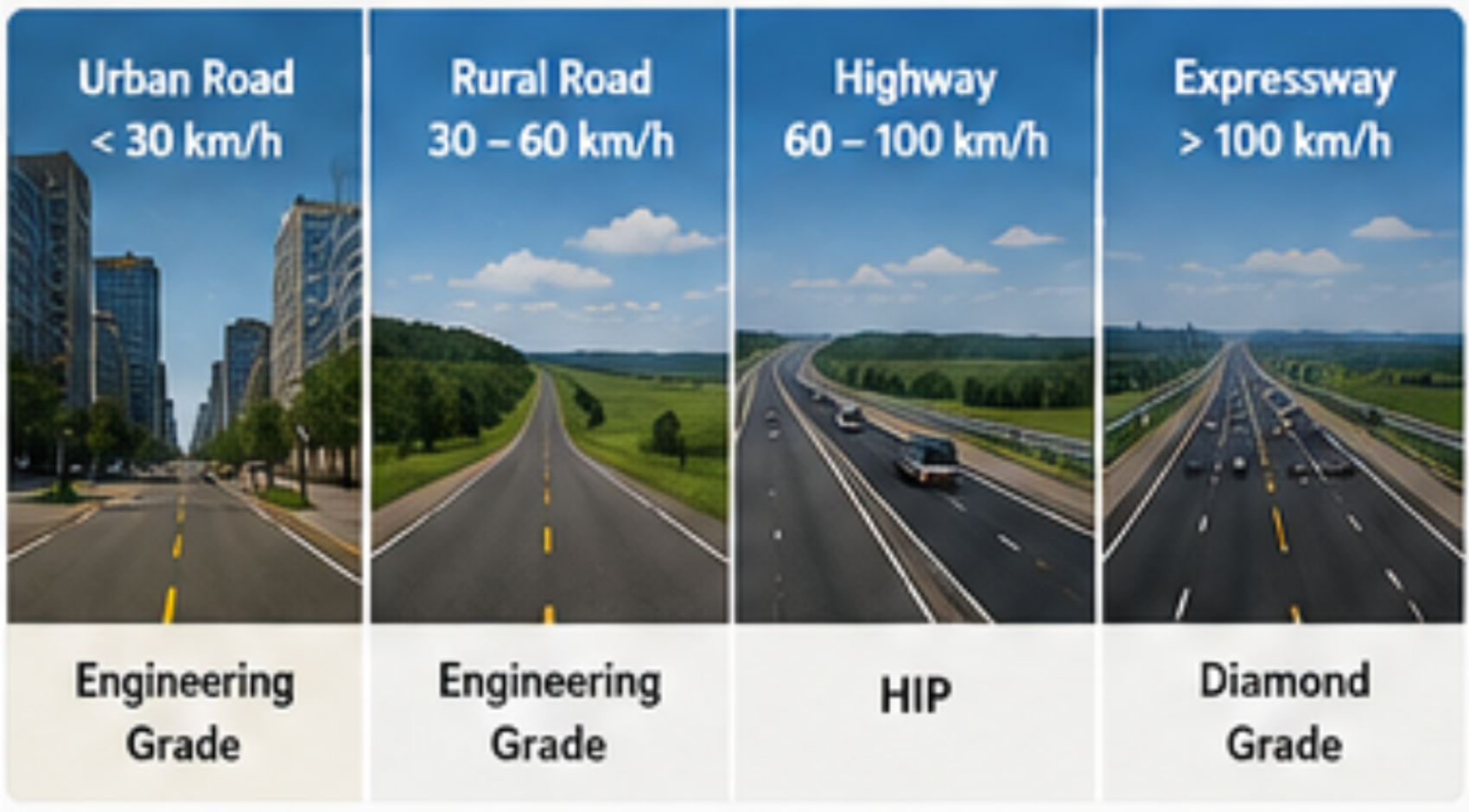

General Recommendations

Traffic Volume

Roads with heavy traffic place greater demands on traffic signs.

High traffic density often means:

• More headlight glare

• Multiple viewing angles

• Increased visual distractions

• Faster decision-making

Higher-grade reflective sheeting maintains visibility under these more complex driving conditions.

Environmental Conditions

The surrounding environment also affects sign performance.

Ask yourself:

• Is the road frequently exposed to heavy rain?

• Does the area experience dense fog?

• Are there mountains or winding roads?

• Is the sign located in coastal regions with high UV exposure?

More challenging environments typically justify upgrading to HIP or Diamond Grade materials.

Expected Service Life

Traffic signs are long-term infrastructure investments.

Replacing signs too frequently increases:

• Maintenance costs

• Labor expenses

• Road closures

• Traffic disruptions

Higher-quality reflective sheeting generally lasts much longer, reducing total lifecycle costs.

For projects expected to remain in service for ten years or more, investing in premium materials often provides better long-term value.

How Different Reflective Grades Perform in Real-World Conditions

Laboratory testing provides useful data, but actual road performance is what matters most.

Night Driving

Higher reflective grades produce brighter, clearer signs with better readability from greater distances.

Heavy Rain

Water can reduce the effectiveness of lower-grade reflective materials.

Microprismatic reflective sheeting maintains better visibility under wet conditions because of its advanced optical structure.

Fog

Although fog naturally reduces visibility, brighter reflective materials improve the chances that drivers will recognize traffic signs earlier.

Curved Roads

Wide observation angles become especially important on winding roads.

HIP and Diamond Grade reflective sheeting provide more consistent brightness across different approach angles, making them ideal for mountain roads and highway curves.

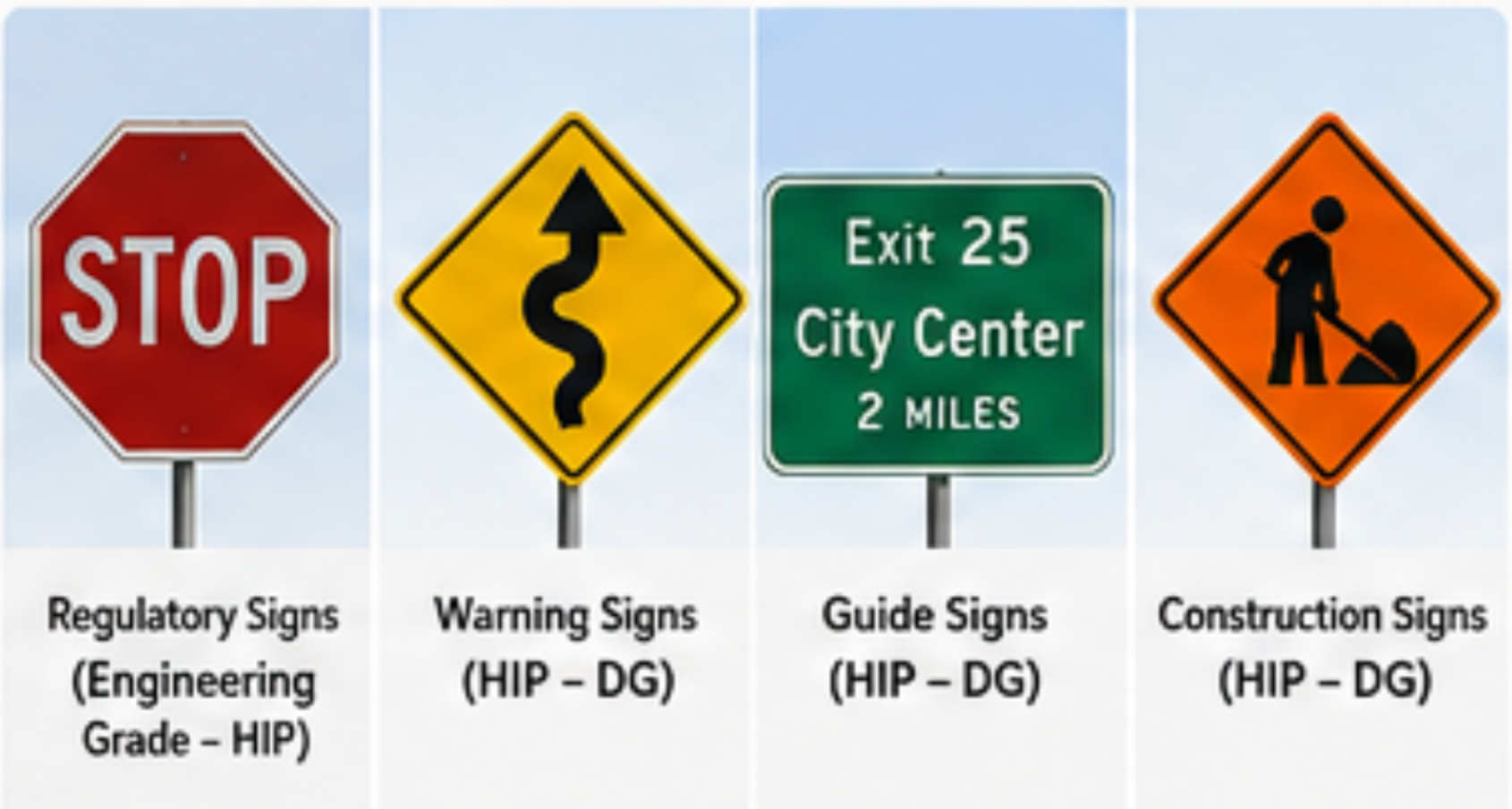

Choosing the Right Reflective Grade for Different Traffic Signs

Not every traffic sign requires the same level of reflectivity. Matching the material to the sign's purpose helps balance safety, performance, and cost.

Regulatory Signs

Regulatory signs communicate legally enforceable instructions such as speed limits, stop signs, and no-entry restrictions.

Recommended grades:

• Urban roads: Engineering Grade

• High-speed roads: HIP or Diamond Grade

Warning Signs

Warning signs alert drivers to potential hazards including sharp curves, pedestrian crossings, and animal crossings.

Since these signs require immediate driver attention, higher visibility is extremely important.

Recommended grades:

• Engineering Grade for residential streets

• HIP for rural highways

• Diamond Grade for expressways and hazardous locations

Guide Signs

Guide signs provide navigation information and must be readable from long distances.

Because drivers need time to read destination names and prepare for lane changes, guide signs benefit greatly from premium reflective materials.

Construction Zone Signs

Construction zones are among the most dynamic and hazardous environments on the road. Traffic patterns can change daily, lanes may shift unexpectedly, and drivers often have limited time to react. In these situations, highly visible traffic signs are essential for protecting both motorists and road workers.

Since construction work frequently takes place at night or under temporary lighting conditions, reflective sheeting plays an even more critical role.

Recommended Reflective Grades

For temporary construction signs:

• Engineering Grade (EGP): Suitable for low-speed urban maintenance projects.

• High Intensity Prismatic (HIP): Recommended for most highway construction zones.

• Diamond Grade (DG): Ideal for high-speed expressways or locations with particularly high safety risks.

Many transportation authorities specify fluorescent orange prismatic sheeting for work zone signs because it offers exceptional visibility during both daytime and nighttime conditions.

How to Balance Performance and Budget

One of the most common questions buyers ask is:

"Should we always choose the highest reflective grade?"

The answer is not necessarily.

While Diamond Grade offers the best performance, it also comes with the highest initial investment. For many municipal roads, Engineering Grade or HIP provides excellent visibility without exceeding project budgets.

A smart purchasing strategy considers the total cost of ownership, not just the purchase price.

Questions to Ask Before Purchasing

• What is the road classification?

• What is the average traffic speed?

• How many years should the sign remain in service?

• What are the local weather conditions?

• Does the project follow national or regional standards?

• What is the maintenance budget?

Answering these questions helps identify the most cost-effective reflective grade for each project.

Common Mistakes When Selecting Reflective Sheeting

Choosing reflective sheeting may seem straightforward, but several common mistakes can reduce road safety and increase long-term costs.

Mistake #1: Focusing Only on Price

The lowest-cost material isn't always the best value.

Cheaper reflective sheeting may require earlier replacement, increasing maintenance expenses over time.

Mistake #2: Ignoring Road Speed

A reflective grade suitable for residential streets may not provide sufficient visibility on highways.

Always match the reflective performance to vehicle speed.

Mistake #3: Overlooking Environmental Conditions

Signs installed in coastal regions, mountainous areas, or locations with intense sunlight require materials with excellent weather resistance and UV durability.

Mistake #4: Using One Grade for Every Project

Not every traffic sign has the same requirements.

For example:

• Parking signs don't require Diamond Grade.

• Highway guide signs should not use Commercial Grade.

Selecting different grades based on application improves both safety and budget efficiency.

Mistake #5: Choosing Suppliers Based Only on Price

The quality of reflective sheeting depends not only on the material itself but also on manufacturing consistency, quality control, and technical support.

When evaluating suppliers, consider:

• Manufacturing experience

• Quality certifications

• Product testing reports

• Technical documentation

• OEM capabilities

• After-sales service

A reliable manufacturer can provide valuable guidance throughout the project lifecycle.

How International Standards Influence Reflective Grade Selection

Many countries specify minimum reflective performance requirements for traffic signs.

Some of the most widely recognized standards include:

• ASTM D4956 (United States)

• EN 12899-1 (Europe)

• National transportation specifications adopted by local road authorities

These standards classify reflective sheeting based on optical performance, durability, and intended application.

Before selecting a reflective grade, always verify the applicable regulations for your project.

Expert Tips for Choosing the Right Reflective Sheeting

If you're still unsure which reflective grade is best, these practical recommendations can help.

For Urban Roads

Choose Engineering Grade (EGP) for cost-effective performance and reliable visibility.

For National Highways

Select High Intensity Prismatic (HIP) to improve recognition distance and nighttime safety.

For Expressways and Critical Infrastructure

Use Diamond Grade (DG) where maximum visibility and long-term durability are essential.

For Temporary Projects

Consider Engineering Grade for short-term installations and HIP for higher-speed work zones.

Frequently Asked Questions (FAQ)

What is the difference between Engineering Grade and HIP reflective sheeting?

Engineering Grade typically provides medium-level retroreflectivity and is suitable for urban roads and municipal traffic signs. HIP reflective sheeting uses microprismatic technology to deliver significantly higher brightness, making it ideal for highways and higher-speed roads.

Is Diamond Grade always the best choice?

Diamond Grade offers the highest level of visibility and durability, but it may not be necessary for every application. For many city streets and local roads, Engineering Grade or HIP provides an excellent balance between performance and cost.

How long does reflective sheeting last?

The service life depends on the material, environmental conditions, and installation quality.

Typical ranges are:

• Commercial Grade: 3–5 years

• Engineering Grade: 7–10 years

• HIP: 10–12 years

• Diamond Grade: 12 years or more

Always refer to the manufacturer's specifications for expected durability.

Can reflective sheeting withstand harsh weather?

Yes. High-quality reflective sheeting is designed to resist:

• UV radiation

• Rain

• Snow

• Temperature fluctuations

• Humidity

Premium microprismatic materials generally provide superior long-term weather resistance.

What is the best reflective grade for highway traffic signs?

For most highways, High Intensity Prismatic (HIP) is the preferred choice. On expressways, overhead guide signs, or critical safety installations, Diamond Grade is often recommended.

Does brighter reflective sheeting improve road safety?

Yes. Brighter reflective materials increase sign recognition distance, allowing drivers more time to process information and react safely—especially at higher speeds and in low-light conditions.

Conclusion

Choosing the right reflective grade is about more than selecting a material—it's about improving road safety, reducing maintenance costs, and ensuring long-term performance.

Each reflective grade serves a different purpose:

• Commercial Grade is suitable for low-speed and non-critical applications.

• Engineering Grade (EGP) offers an excellent balance of performance and affordability for urban traffic signs.

• High Intensity Prismatic (HIP) is ideal for highways, major roads, and demanding traffic environments.

• Diamond Grade (DG) delivers the highest level of visibility for expressways and critical infrastructure.

By considering factors such as road type, traffic speed, environmental conditions, expected service life, and applicable standards, you can confidently select the reflective sheeting that best meets your project's requirements.

Investing in the appropriate reflective grade not only enhances driver safety but also maximizes the long-term value of your traffic signage system.

Why Choose Ablaze Reflective Sheeting?

Whether you're supplying municipal road projects, national highway systems, or international infrastructure developments, selecting a trusted manufacturing partner is just as important as selecting the right reflective grade.

At Ablaze, we provide a comprehensive range of reflective sheeting solutions, including:

• Commercial Grade Reflective Sheeting

• Engineering Grade Reflective Sheeting (EGP)

• High Intensity Prismatic (HIP) Reflective Sheeting

• Diamond Grade Reflective Sheeting

• Printable Reflective Sheeting

• Photoluminescent (Glow-in-the-Dark) Film

Why Customers Choose Ablaze

• OEM & private label manufacturing

• Consistent product quality

• Competitive factory-direct pricing

• International export experience

• Technical support and product documentation

• Fast sample delivery

Whether you're a distributor, contractor, or traffic sign manufacturer, our team is ready to help you choose the most suitable reflective solution for your market.
