How To Calculate Reflective Sheeting Quantity for Traffic Signs

When preparing a traffic sign project, knowing the total sign area is only the first step.

A project may require 200 m² of finished reflective sign faces, but this does not necessarily mean that buying 200 m² of reflective sheeting is enough.

Actual material consumption also depends on:

• Sign size

• Sign shape

• Roll width

• Cutting layout

• Material orientation

• Different colors

• Printing method

• Test pieces

• Production waste

• Replacement pieces

This is why a simple calculation based only on square meters can underestimate the number of rolls required.

For a more accurate order, calculate both the theoretical sign area and the actual roll layout.

Start With the Sign Schedule

Before calculating reflective sheeting, organize the project information.

A basic sign schedule should include:

Do not combine everything into one total too early.

Different colors and reflective grades normally need to be calculated separately.

For example, a project containing:

• White Engineering Grade

• Yellow Engineering Grade

• White HIP

• Red HIP

should normally be treated as four separate material groups.

1. Calculate the Net Area of Each Sign

For rectangular signs, the calculation is simple:

Sign Area = Width × Height

Make sure all dimensions use the same unit.

For example:

A sign measuring:

600 mm × 800 mm

becomes:

0.6 m × 0.8 m

So:

0.6 × 0.8 = 0.48 m²

If the project requires 100 signs:

0.48 × 100 = 48 m²

The theoretical reflective area is 48 m².

But this is still not the final purchasing quantity.

Circular Signs

For a circular sign:

Area = π × radius²

For example, a 600 mm diameter circular sign has a radius of 300 mm, or 0.3 m.

So:

3.1416 × 0.3 × 0.3 ≈ 0.283 m²

For 100 signs:

0.283 × 100 ≈ 28.3 m²

However, 28.3 m² is only the geometric area of the finished circles.

The actual material required may be higher because circles must still be arranged across a rectangular roll.

That difference is important.

Triangular Signs

For a triangle:

Area = Base × Height ÷ 2

But again, the geometric area should not be used alone for purchasing.

A triangular sign occupies a larger rectangular cutting area before the waste around the triangle is removed.

Smart nesting can reduce this waste, but it cannot always remove it completely.

2. Do Not Confuse Net Sign Area With Material Consumption

This is one of the most common mistakes in project calculations.

Imagine a circular sign with a diameter of 600 mm.

Its geometric area is about:

0.283 m²

But if one circle is cut from a 600 mm × 600 mm piece, the material envelope is:

0.6 × 0.6 = 0.36 m²

The difference becomes cutting waste.

With hundreds or thousands of signs, that difference becomes significant.

For this reason, use two numbers:

Net area
The actual finished sign-face area.

Layout area
The reflective sheeting consumed by the production layout.

For purchasing, layout area is usually more useful.

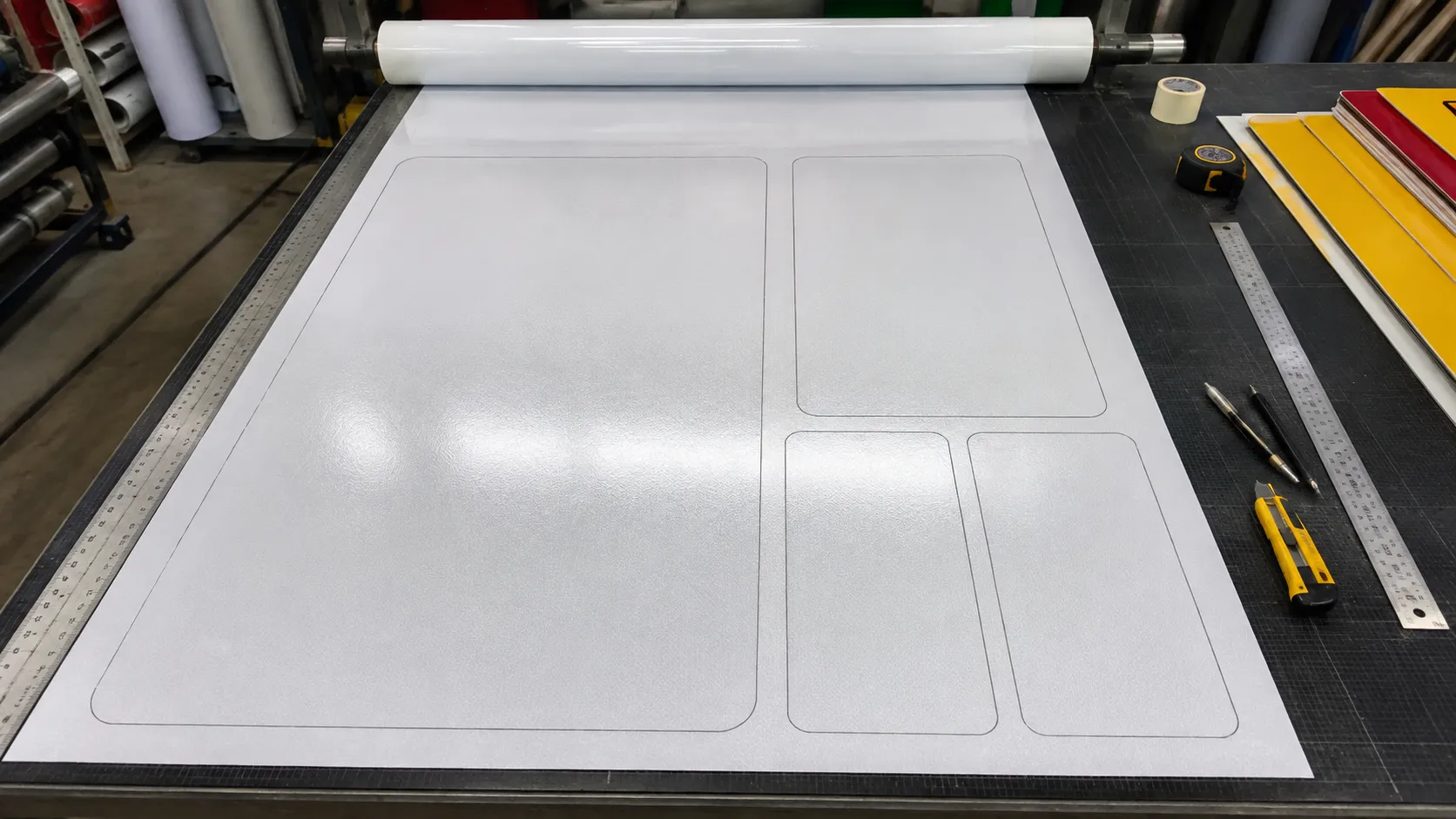

3. Roll Width Can Change the Result Completely

Suppose two suppliers both offer the same total square meters of reflective sheeting.

That does not automatically mean both options will produce the same number of signs.

Roll width affects how efficiently signs can be arranged.

Imagine your sign is:

550 mm wide.

With a 1.22 m wide roll, two 550 mm pieces can fit across the roll:

550 + 550 = 1100 mm

This leaves some space for cutting and production tolerance.

But if the sign is:

650 mm wide,

two pieces would require:

650 + 650 = 1300 mm

They will not fit across a 1.22 m roll.

Now only one may fit across the width.

Material usage can increase significantly even though the finished sign area changed only slightly.

This is why roll width should be checked before confirming the order quantity.

4. Decide the Best Cutting Orientation

A rectangular sign can sometimes be rotated to use the roll more efficiently.

For example:

An 800 × 550 mm sign can be placed with:

550 mm across the roll

and

800 mm along the roll

On a 1.22 m roll:

550 + 550 = 1100 mm

So two signs can fit across the width.

If you rotate the same sign:

800 mm across the width

only one sign fits.

The amount of material needed becomes much higher.

For large orders, a simple layout decision can save a large amount of reflective sheeting.

5. Calculate by Roll Length, Not Only Square Meters

Once you know how the signs will be arranged, calculate the required roll length.

This method is often more accurate than using area alone.

For example:

If two signs fit across the roll and each row uses 800 mm of roll length:

90 rows require:

90 × 0.8 m = 72 m

Now you know how many linear meters of that roll width are actually required.

Repeat this process for every sign size.

Then add the required lengths together.

Practical Example: 500 Traffic Signs

Consider a project containing 500 rectangular signs.

For this example only, assume the reflective sheeting roll is:

1.22 m × 45.7 m

The project contains:

The theoretical sign area is:

201.8 m²

Now calculate the theoretical area of one roll:

1.22 × 45.7 = 55.754 m²

If we simply add an illustrative 10% allowance:

201.8 × 1.10 = 221.98 m²

Then:

221.98 ÷ 55.754 ≈ 3.98 rolls

A simple area calculation would therefore suggest:

4 rolls

But now look at the actual layout.

Layout 1: 500 × 500 mm Signs

Two 500 mm signs fit across a 1.22 m roll.

For 200 signs:

200 ÷ 2 = 100 rows

Each row uses:

0.5 m

Required length:

100 × 0.5 = 50 m

Layout 2: 800 × 550 mm Signs

Place the 550 mm dimension across the roll.

Two pieces fit:

550 + 550 = 1100 mm

For 180 signs:

180 ÷ 2 = 90 rows

Each row uses:

0.8 m

Required length:

90 × 0.8 = 72 m

Layout 3: 1100 × 550 mm Signs

One 1100 mm piece fits across the 1.22 m roll.

Each sign therefore uses:

0.55 m of roll length

For 120 signs:

120 × 0.55 = 66 m

Total Layout Length

Add the three groups:

50 + 72 + 66 = 188 m

Now add an illustrative 5% production allowance:

188 × 1.05 = 197.4 m

With each roll containing 45.7 m:

197.4 ÷ 45.7 ≈ 4.32 rolls

You cannot buy 0.32 of a full roll.

Therefore the project requires:

5 full rolls

This example shows why square-meter calculation alone can be misleading.

The simple area calculation suggested 4 rolls.

The actual layout calculation suggested 5 rolls.

For real projects, always calculate the production layout before confirming the purchase quantity.

The 5% allowance in this example is only for demonstration. Your actual allowance should be based on your own cutting method, equipment, sign design and production history.

6. Calculate Different Colors Separately

Do not combine all colors into one total area.

For example:

A project may require:

• 120 m² white

• 35 m² yellow

• 15 m² red

• 8 m² blue

The total is:

178 m²

But ordering 178 m² of white reflective sheeting obviously does not solve the project.

Calculate each color separately:

This becomes even more important when the minimum order quantity or roll length is different for different colors.

7. Calculate Different Reflective Grades Separately

The same rule applies to material grades.

If one project includes both Engineering Grade and HIP reflective sheeting, do not combine them into one material calculation.

For example:

Parking signs may use one grade.

Higher-demand road signs may require another grade.

Each grade should have its own:

• Sign schedule

• Color schedule

• Roll calculation

• Purchase quantity

Choose the reflective grade before calculating the final purchase order.

Otherwise the calculation may be accurate but based on the wrong material.

8. Include Cutting Waste

Some material loss is normal during production.

Possible sources include:

• Space between signs

• Edge trimming

• Plotter margins

• Registration marks

• Irregular sign shapes

• Test cuts

• Damaged pieces

• Setup material

• Printing registration

• Operator error

There is no universal waste percentage that works for every project.

A factory producing simple rectangular signs with an efficient nesting system may have low waste.

A project containing many:

• Circles

• Triangles

• Small mixed sizes

• Multiple colors

• Complex graphics

may produce more waste.

Use your own production records whenever possible.

That is more accurate than automatically adding the same percentage to every project.

9. Printing Can Also Affect Material Consumption

If the reflective sheeting will be screen printed or digitally printed, the printing workflow may require additional material.

For example:

• Printer loading area

• Color registration area

• Test printing

• Ink calibration

• Print defects

• Cutting registration marks

A screen-printing factory producing repeated traffic signs may calculate material differently from a company cutting solid-color reflective graphics.

Tell the reflective sheeting supplier how the material will be processed.

This helps avoid ordering too little material.

10. Allow Material for Production Testing

For a new reflective sheeting product, do not use every meter for finished signs.

Keep some material available for:

• Adhesion testing

• Plotter test cuts

• Screen-print tests

• Digital-print tests

• Lamination tests

• Color approval

• Final sign approval

This is especially important before a large project.

Using one or two small samples to confirm the production process can prevent much larger losses later.

11. Keep Some Material for Replacement Signs

Large traffic-sign projects may also need replacement material.

Possible reasons include:

• Installation damage

• Transport damage

• Incorrect sign fabrication

• Site changes

• Additional signs requested later

• Sign replacement during the project

If replacement signs must match the original batch closely, buying a small amount of extra material with the original production order may be useful.

The appropriate amount depends on the project.

Do not automatically add a large reserve without considering actual needs.

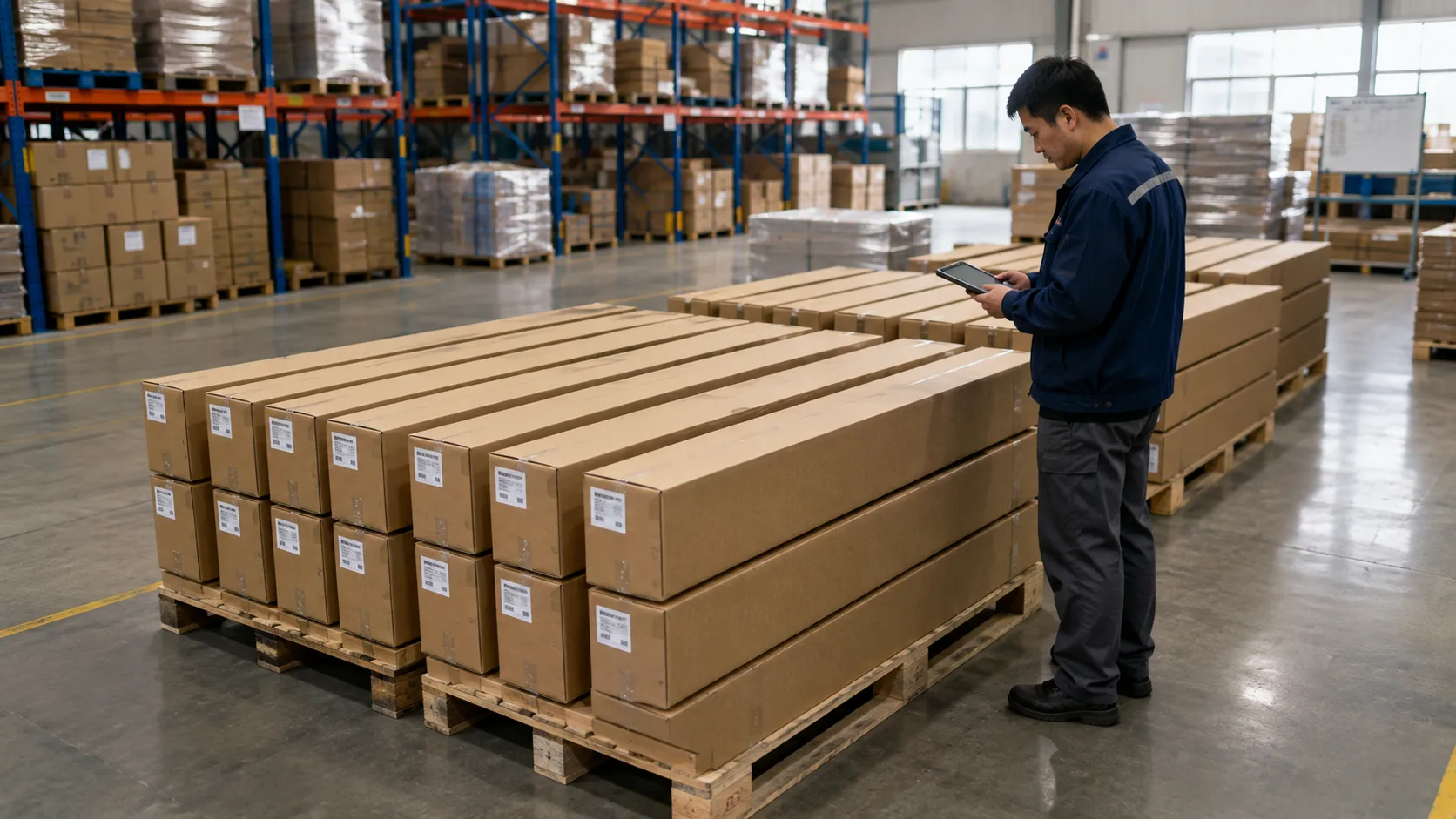

12. Batch Consistency Matters

Suppose a project needs four rolls and you order exactly four.

Later, one additional roll is required.

The new roll may come from another production batch.

Depending on the product and color, small differences in:

• Shade

• Surface appearance

• Reflective appearance

may become visible when materials are installed side by side.

For large projects, calculate the full requirement before purchasing and discuss batch consistency with the supplier.

This is another reason accurate quantity planning matters.

Simple Reflective Sheeting Calculation Workflow

A practical calculation can follow this order:

1. Separate by reflective grade

Engineering Grade, HIP and other grades should be calculated independently.

2. Separate by color

White, yellow, red, blue and other colors should have their own calculations.

3. Group signs by size

Create a list of identical dimensions.

4. Find the best orientation

Check how many signs fit across the available roll width.

5. Calculate required rows

Quantity ÷ pieces per row.

Round up when necessary.

6. Calculate linear meters

Rows × sign length along the roll.

7. Add production allowance

Use a percentage or fixed quantity based on the actual production process.

8. Divide by roll length

Required linear meters ÷ meters per roll.

9. Round up to full rolls

You normally need to purchase complete rolls unless the supplier offers custom lengths.

Reflective Sheeting Project Calculation Table

A useful internal project sheet can look like this:

Then add:

Total layout length

Production allowance

Final required length

Roll length

Number of rolls

This type of calculation is much easier to check than simply writing:

“Approximately 200 m² required.”

Common Calculation Mistakes

Mistake 1: Using Only Net Area

Net area does not show nesting and cutting waste.

Mistake 2: Ignoring Roll Width

Two rolls with similar total area can produce different material utilization.

Mistake 3: Mixing Different Colors

Each color normally needs its own roll calculation.

Mistake 4: Mixing Different Grades

Engineering Grade and HIP should not be treated as one material.

Mistake 5: Forgetting Production Tests

A project needs material for setup and QC, not only finished signs.

Mistake 6: Ordering the Exact Theoretical Quantity

Any production problem can then create an immediate material shortage.

Mistake 7: Using the Same Waste Percentage for Every Project

A rectangular-sign project and a mixed circular-sign project may have very different material utilization.

What Information Should You Send the Supplier?

If you want your reflective sheeting supplier to help calculate quantity, send the complete project information.

Useful information includes:

• Sign size

• Quantity of each size

• Sign shape

• Reflective grade

• Color

• Available roll width

• Preferred roll length

• Printing method

• Cutting method

• Final substrate

• Required standard

• Country or project market

• Expected production waste if known

A spreadsheet, sign schedule or project drawing is much more useful than a message saying:

“Please quote reflective sheeting for 500 signs.”

With the sign schedule, the supplier can better understand the real requirement.

FAQ

How do I calculate the square meters of reflective sheeting?

For a rectangular sign:

Width × Height × Quantity

Convert millimeters to meters before calculating.

However, this gives net sign area, not necessarily the final purchasing quantity.

How many square meters are in one reflective sheeting roll?

Use:

Roll Width × Roll Length

For example, a 1.22 m × 45.7 m roll has a theoretical area of:

55.754 m²

This does not mean every square meter can always become a finished sign.

How much waste should I add?

There is no universal percentage.

Waste depends on sign shape, dimensions, roll width, printing, cutting method and production efficiency.

Use previous production data whenever possible.

Should I calculate circular signs by circle area?

Circle area is useful for calculating the net finished area.

For material purchasing, also check the actual nesting layout on the roll because unused material remains around the circles.

Can I calculate all sign colors together?

No.

Different colors should normally be calculated separately because they require separate reflective sheeting materials.

Should I order exactly the calculated number of rolls?

The final order should include realistic production needs such as cutting loss, tests and possible replacement pieces.

Avoid ordering only the theoretical geometric area.

Final Thoughts

Reflective sheeting quantity calculation is not only a square-meter calculation.

For an accurate traffic-sign project estimate, consider:

Sign size → Quantity → Grade → Color → Roll width → Layout → Production allowance → Roll quantity

The most important step is checking how the signs actually fit across the roll.

A theoretical calculation may suggest four rolls, while the real cutting layout requires five.

Doing this calculation before ordering helps reduce two common problems:

Buying too little material and stopping production

or

Buying much more material than the project actually needs

If you are preparing a traffic-sign project, send ABLAZE your sign schedule, including sign sizes, quantities, colors, reflective grades and required roll size.

We can review the material requirement and help you prepare a more accurate quantity before bulk ordering.
