How to Read a Reflective Sheeting TDS: RA, Adhesive & Tolerances

Two reflective sheeting quotations may appear almost identical.

Both may state:

• High reflectivity

• Pressure-sensitive adhesive

• 0.25 mm thickness

• 150 gsm release liner

• 1.22 m × 45.7 m roll size

• Three or five years of outdoor durability

However, these descriptions do not necessarily represent equivalent products.

One thickness may include the adhesive but exclude the liner. Another may describe the complete construction, including the release paper. One RA value may be a guaranteed minimum, while another is only a typical laboratory result. Even the same adhesive can perform differently depending on the substrate, application temperature and test method.

This guide explains how to read a reflective sheeting technical data sheet, or TDS, field by field. It is intended for reflective material distributors, traffic-sign manufacturers, printing companies, license plate producers and bulk buyers.

ABLAZE is the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd. We manufacture glass-bead and microprismatic reflective materials for traffic safety, commercial signage, printing, vehicle identification and OEM applications.

Quick Answer: What Should You Check on a Reflective Sheeting TDS?

Before comparing prices, check these ten items:

1. Exact product code and color

2. Reflective technology and face material

3. Applicable standard or declared product grade

4. RA values at specified observation and entrance angles

5. Whether RA values are minimum or typical

6. Which layers are included in the stated thickness

7. Adhesive type, application surface and application temperature

8. Release-liner material, weight, thickness and release behavior

9. Roll dimensions and manufacturing tolerances

10. Printing, durability, storage and warranty conditions

A reliable comparison requires all suppliers to quote these items on the same basis.

What Is a Reflective Sheeting Technical Data Sheet?

A technical data sheet is a product-level document that describes the construction, physical properties, optical performance, processing conditions and intended applications of a specific reflective sheeting model.

A complete TDS may include:

• Product name and model

• Reflective technology

• Face-film material

• Available colors

• Coefficient of retroreflection

• Daytime color

• Thickness or caliper

• Adhesive type

• Release liner

• Recommended substrates

• Minimum application temperature

• Service-temperature range

• Printing and cutting compatibility

• Outdoor durability

• Shelf life

• Roll sizes

• Applicable standards

• Test methods

• Warranty limitations

A TDS is not the same as a certificate of analysis, third-party test report or safety data sheet.

A product TDS is a starting point. It does not automatically prove that every production batch meets a project specification or that the finished printed sign will perform correctly.

How Should You Read a Reflective Sheeting TDS?

Do not begin with the largest RA number or the longest durability claim.

A more reliable reading order is:

1. Confirm the exact product identity.

2. Confirm the intended application.

3. Identify the reflective construction.

4. Check the required standard.

5. Read the complete RA table.

6. Define the thickness basis.

7. Evaluate the adhesive and substrate.

8. Check the release liner.

9. Review printing and converting compatibility.

10. Confirm tolerances, test methods and durability conditions.

This order prevents a common purchasing mistake: comparing two materials that were designed for different applications.

Step 1: Confirm the Exact Product Identity

The first section of a TDS should identify the exact product rather than relying on a general description such as “engineering grade,” “high intensity” or “premium reflective film.”

Check for:

• Manufacturer

• Brand

• Product code

• Product series

• Color

• Reflective construction

• Face material

• Adhesive version

• Liner version

• TDS revision date

One product series may contain several constructions.

For example, white material may use a printable surface while colored versions may not. The same reflective face may also be offered with permanent, repositionable or low-temperature adhesive.

The technical document must match the exact model and color shown on the quotation and purchase order.

Do Not Confuse Material, Technology and Grade

These terms describe different product properties:

A PET reflective sheeting product is not automatically engineering grade. A microprismatic material does not automatically meet a particular ASTM type.

If you are still selecting the face material, read PET vs PVC vs Acrylic Reflective Sheeting.

For more information about grade names and certification marks, see Reflective Sheeting Grades Decoded.

Step 2: Read the RA Table Correctly

RA, or Rₐ, is the coefficient of retroreflection. It describes how effectively reflective sheeting returns light toward an observer positioned close to the light source.

RA is normally expressed in:

cd/lx/m²

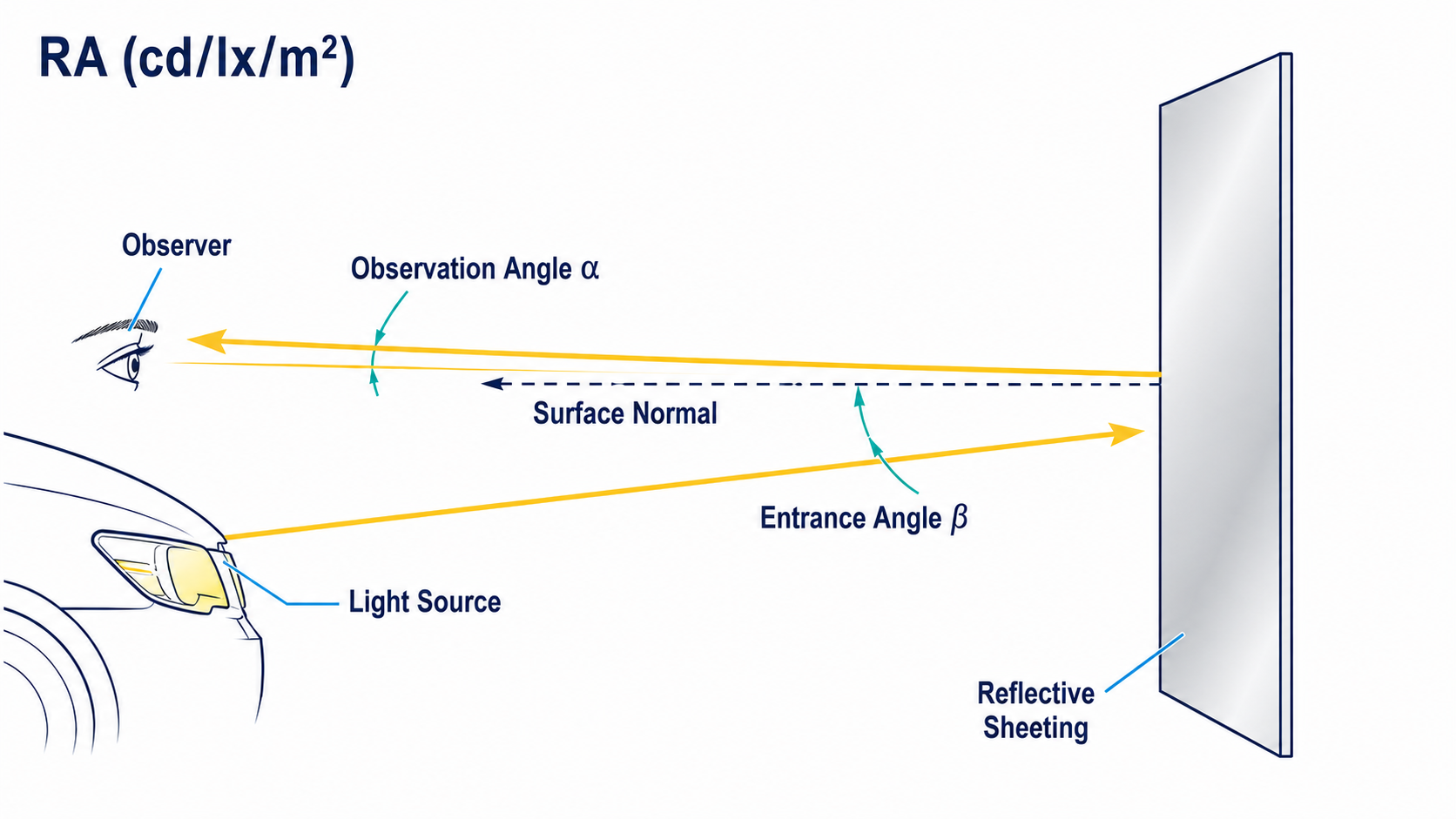

The number cannot be evaluated correctly unless the TDS also identifies:

• Observation angle

• Entrance angle

• Material color

• Sample orientation

• Test method

• Sample condition

• Minimum or typical status

Never Compare RA Values at Different Angles

Consider this example:

Product A has the larger number, but the two results cannot be compared directly because they were measured at different geometries.

To make a valid comparison, request values for both products at the same:

• Observation angle

• Entrance angle

• Color

• Orientation

• Test method

• Material condition

A strong value at 0.2°/-4° does not guarantee strong performance at wider observation or entrance angles.

For a full explanation, read Coefficient of Retroreflection Explained: RA, Observation Angle and Entrance Angle.

Minimum RA vs Typical RA

This distinction is critical.

Minimum RA is normally a lower acceptance limit that the product is expected or required to meet under the stated test conditions.

Typical RA is an average or representative result. Unless the supplier states otherwise, it should not be treated as a guaranteed minimum.

For example:

• Typical white RA: 100 cd/lx/m²

• Guaranteed minimum white RA: 70 cd/lx/m²

A production result of 78 cd/lx/m² may comply with the guaranteed specification even though it is lower than the published typical value.

When comparing quotations, do not compare one supplier’s typical result with another supplier’s guaranteed minimum.

Initial RA vs Retained RA

A newly manufactured sheet may meet the initial RA requirement but lose performance after weathering.

Check whether the value represents:

• New, unexposed material

• Material after accelerated weathering

• Material after outdoor exposure

• Printed material

• Laminated material

• Finished sign construction

Ask for retained RA data when long-term outdoor performance is important.

RA Varies by Color

White reflective sheeting generally has a higher RA value than yellow, red, green or blue material.

A white-material test result cannot represent every color in the same product series.

For multi-color orders, request the RA table for each ordered color.

Orientation Matters for Prismatic Sheeting

Microprismatic reflective sheeting can be sensitive to rotation or machine direction.

The TDS should state:

• Recommended orientation

• Datum or machine direction

• Required test orientation

• Rules for cutting letters

• Rules for assembling multi-panel signs

If adjacent prismatic pieces are installed in different directions, the finished sign may show uneven nighttime brightness even when all pieces come from the same roll.

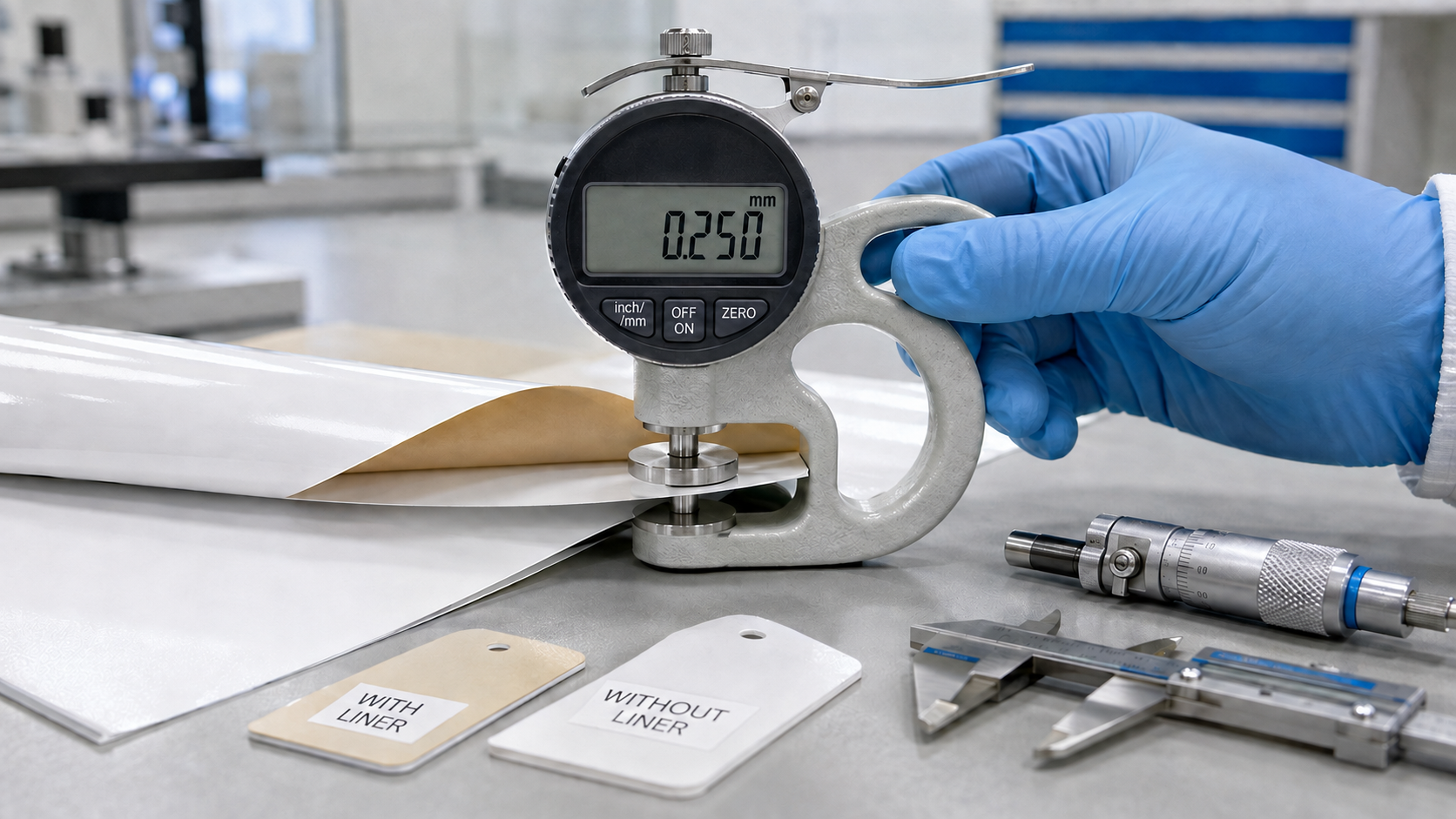

Step 3: Determine What the Thickness Actually Includes

“Thickness: 0.25 mm” is not a complete specification.

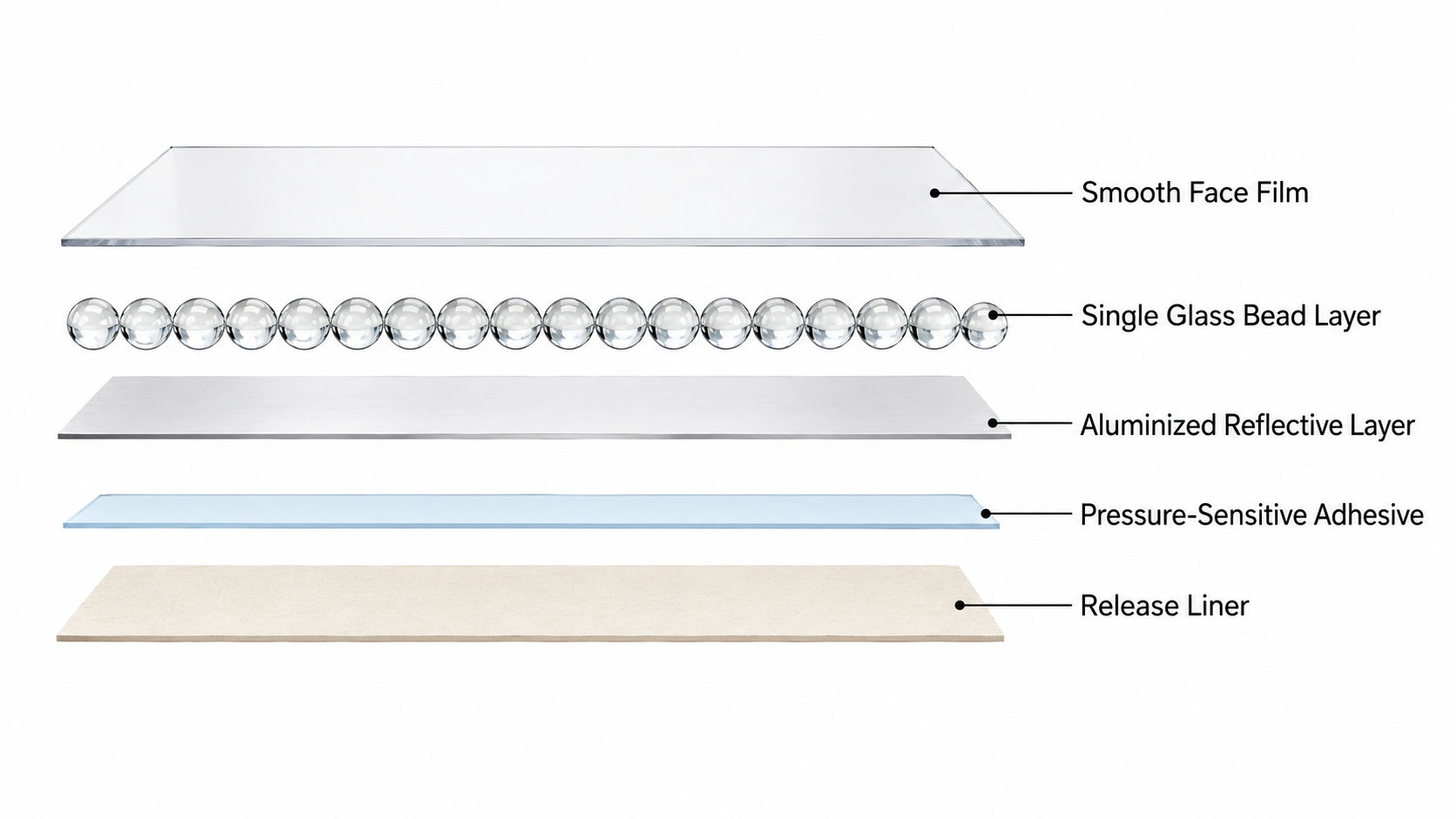

Reflective sheeting is a multilayer material. Depending on the supplier, the published thickness may refer to different parts of the construction.

Common Thickness Definitions

Never assume that “film thickness,” “sheeting thickness” and “total product thickness” are interchangeable.

Questions to Ask About Thickness

Ask the supplier:

1. Does the stated thickness include the adhesive?

2. Does it include the release liner?

3. Is it a nominal, typical, minimum or maximum value?

4. What test method and measuring pressure were used?

5. What is the permitted tolerance?

6. Is the value the same for every color?

7. Is the measurement taken before or after embossing, printing or lamination?

Why Measuring Pressure Matters

Soft PVC, adhesive layers and structured reflective materials can compress during measurement.

Two laboratories may obtain different results if they use different:

• Gauge types

• Measuring-foot areas

• Contact pressures

• Conditioning temperatures

• Measurement locations

For important projects, the TDS or agreed inspection method should state how thickness is measured.

Convert Mils and Microns Correctly

North American data sheets frequently use mils.

1 mil = 0.001 inch = 25.4 microns = 0.0254 mm

Round only after completing the conversion. Excessive rounding can hide meaningful differences between thin films.

Does Thicker Reflective Sheeting Mean Higher Quality?

Not necessarily.

Thickness may affect:

• Rigidity

• Flexibility

• Plotter-cutting settings

• Weeding

• Embossing

• Lamination pressure

• Conformability

• Edge behavior

• Roll weight

It does not independently determine RA, weather resistance, ink adhesion or adhesive quality.

A thinner product can outperform a thicker product if it has a better optical construction, surface film or adhesive system.

Step 4: Understand the Adhesive Specification

Most self-adhesive reflective sheetings use a pressure-sensitive adhesive, or PSA.

“Pressure-sensitive” means the adhesive develops contact when pressure is applied. It does not tell you:

• Whether it is permanent or removable

• Whether it is high-tack or repositionable

• Which substrates it can bond to

• Its minimum application temperature

• Its final peel strength

• Its outdoor durability

Common Adhesive Descriptions

The adhesive category alone is not enough. The TDS must also identify the recommended substrate and application method.

Adhesive Chemistry vs Adhesive Performance

A TDS may describe an adhesive as acrylic, solvent-based acrylic, water-based acrylic or rubber-based.

Chemistry can help explain the product design, but it does not replace performance data.

Important properties include:

• Initial tack

• Peel adhesion

• Shear resistance

• Edge-lifting resistance

• Water resistance

• Heat resistance

• Plasticizer resistance

• Adhesive color

• Adhesive transfer after removal

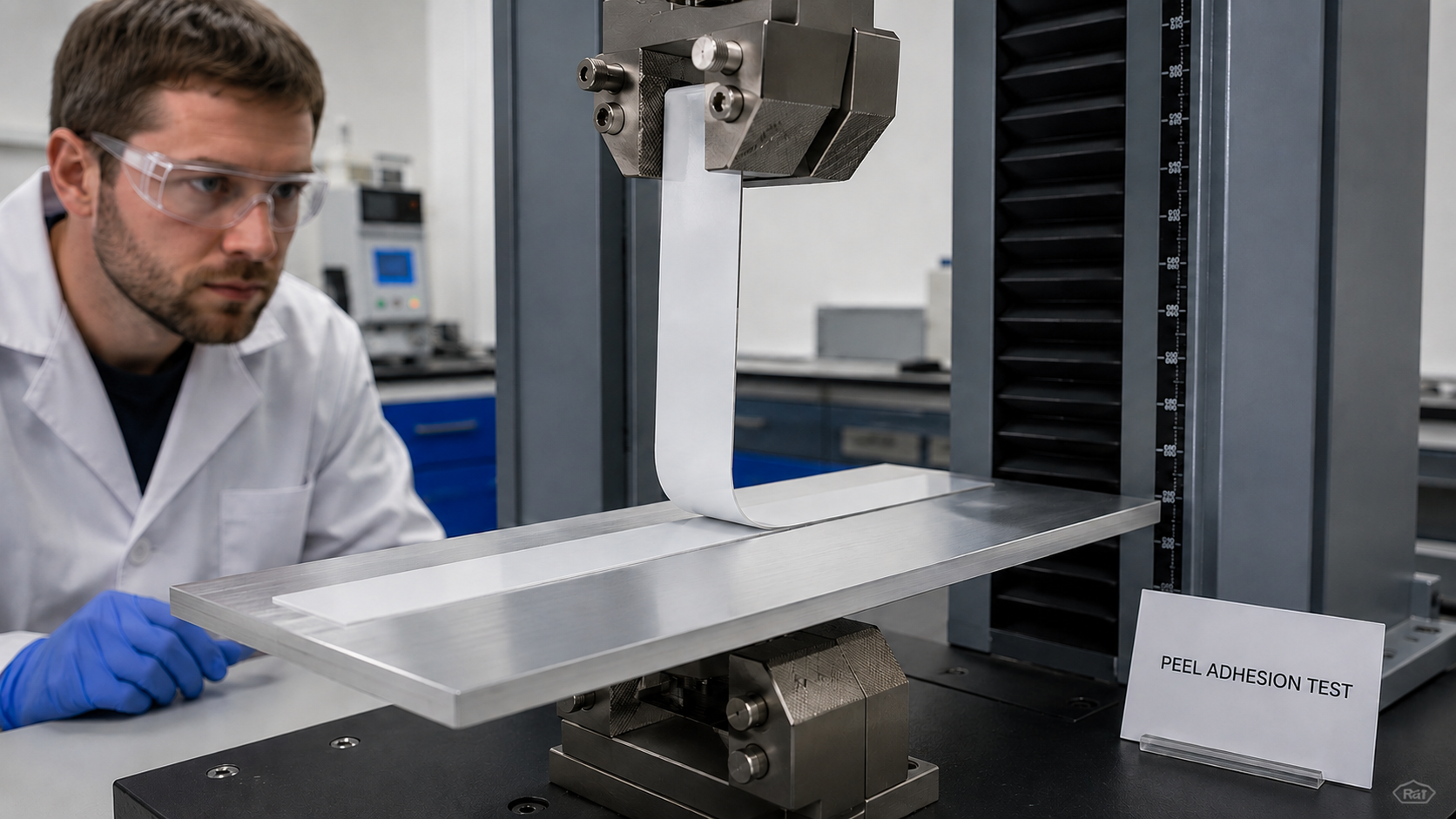

Adhesion Values Need Test Conditions

A statement such as “adhesion strength: 20 N” is incomplete.

The report should identify:

• Test substrate

• Sample width

• Dwell time

• Application pressure

• Peel angle

• Peel speed

• Test temperature

• Conditioning time

• Failure mode

Adhesion to smooth aluminum cannot automatically predict adhesion to polyethylene, polypropylene, powder-coated metal, painted panels or plastic safety devices.

Minimum Application Temperature Is Not Service Temperature

These two values describe different conditions.

Minimum application temperature is the lowest recommended temperature of the air, substrate and material during installation.

Service-temperature range describes the temperature the installed product may experience after the adhesive has developed its bond.

For example, a product may tolerate sub-zero temperatures after application but still require installation at approximately room temperature.

Do not apply a roll in cold conditions simply because its service-temperature range includes cold weather.

Check the Actual Application Surface

The TDS should state whether the material is suitable for:

• Flat aluminum

• Painted metal

• Powder-coated metal

• Glass

• Rigid plastic

• Polyethylene or polypropylene

• Curved vehicle panels

• Riveted surfaces

• Flexible or reboundable devices

For rigid signs, follow the substrate-preparation procedures in How to Apply Reflective Sheeting to Aluminum Sign Panels.

Step 5: Read the Release-Liner Specification

The release liner protects the adhesive during storage, printing, cutting and handling. It is removed before the reflective sheeting is installed.

A TDS may describe the liner by:

• Material

• Weight

• Thickness

• Surface coating

• Release treatment

• Color

• Printing marks

• Air-release construction

Common Release-Liner Materials

Liner GSM Is Weight, Not Thickness

A description such as “150 gsm liner” means the paper weighs approximately 150 grams per square metre.

It does not mean the liner is 150 microns thick.

Two 150 gsm liners can have different:

• Thicknesses

• Densities

• PE-coating weights

• Moisture contents

• Stiffness

• Release forces

• Flatness

Therefore, do not convert GSM directly into millimetres.

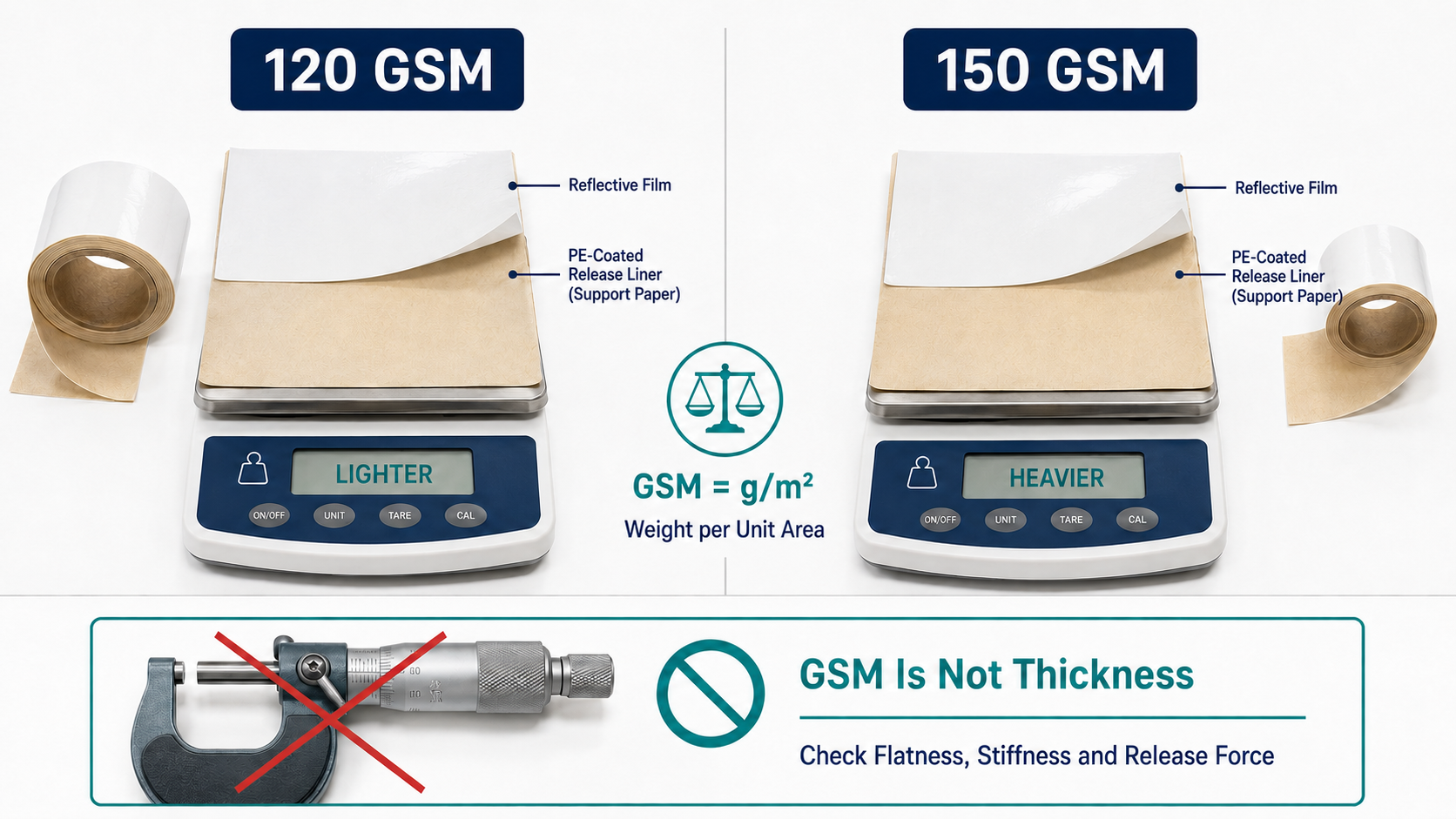

120 GSM vs 150 GSM Release Paper

A heavier liner can provide greater stiffness and handling stability during plotter cutting, printing and sheet conversion. It may reduce curling or feeding problems in some production systems.

A lighter liner may reduce roll weight and cost.

However, GSM alone does not determine performance. The buyer should also test:

• Cutting stability

• Liner flatness

• Release consistency

• Paper tearing

• Moisture sensitivity

• Adhesive transfer

• Printer feeding

• Roll winding

For precision cutting or multi-color conversion, a stable liner can be more valuable than a small reduction in material cost.

Release Force Matters

The liner should peel away smoothly without:

• Tearing

• Paper-fiber contamination

• Adhesive transfer

• Premature separation

• Excessive force

• Sudden release

• Curling the reflective film

Release force that is too high slows production and may distort thin material. Release force that is too low can cause premature separation during slitting, printing or transport.

Step 6: Understand Nominal, Typical, Minimum and Tolerance

These terms are not interchangeable.

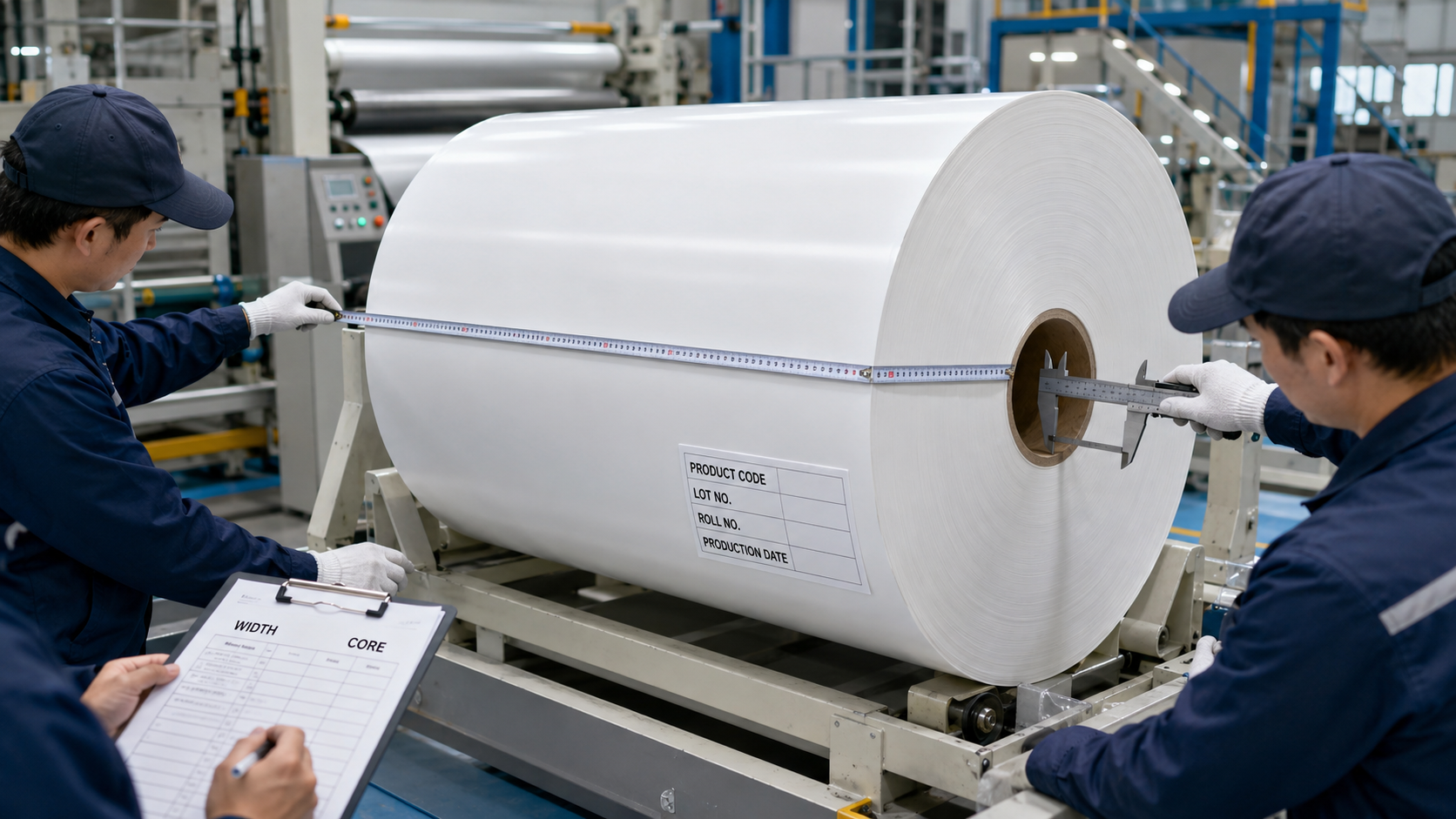

If a TDS states “width: 1.22 m,” it may be a nominal commercial size rather than an acceptance limit.

The buyer still needs to know the permitted width variation.

Important Reflective Sheeting Tolerances

A bulk-order specification may need tolerances for:

• Roll width

• Roll length

• Face-film thickness

• Total sheeting thickness

• Adhesive coat weight

• Liner GSM

• Liner thickness

• RA

• Daytime color

• Roll weight

• Core diameter

• Edge alignment

• Winding tension

• Splices per roll

• Color difference between batches

Do Not Invent Missing Tolerances

If a supplier states:

“Roll size: 1.22 m × 45.7 m”

but provides no tolerance, ask the supplier to confirm the permitted variation in writing.

The buyer should not assume a particular ± value based on another manufacturer’s product.

TDS Tolerance vs Purchase-Order Tolerance

A manufacturer’s standard tolerance may not be suitable for every project.

For example, a standard roll-width tolerance may be acceptable for full-panel lamination but unsuitable for a customer who needs precision slitting into narrow strips.

When the project requires tighter limits, include them in:

• Quotation

• Approved sample record

• Purchase order

• Inspection agreement

• Packing specification

The supplier must confirm that the requested tolerance is technically achievable before production.

Step 7: Check Printing and Converting Compatibility

“Printable” is not a complete technical specification.

The TDS should identify the approved or recommended processes, such as:

• Eco-solvent printing

• Solvent printing

• Latex printing

• UV digital printing

• Screen printing

• Thermal transfer

• Hot stamping

• Plotter cutting

• Die cutting

• Embossing

• Lamination

A product compatible with screen printing is not automatically compatible with UV or eco-solvent printing.

Ask for the Complete Printing System

Confirm:

• Printer type

• Ink chemistry

• Ink brand or approved ink series

• Surface treatment

• Curing or drying requirements

• Recommended ink limit

• Overlaminate

• Clear coat

• Post-print waiting time

• RA after printing

• Warranty coverage for printed graphics

Printing can change ink adhesion, color, flexibility and retroreflectivity.

For more information, read the Printable Reflective Sheeting for Digital Printing: Complete Buying Guide.

Run a Real Production Trial

Before approving a bulk order, test the material with your actual:

• Printer

• Ink

• RIP settings

• Curing settings

• Cutting plotter

• Blade

• Laminate

• Aluminum or plastic substrate

• Application equipment

Check the sample immediately and again after 24 to 72 hours.

Step 8: Interpret Durability and Warranty Claims

“Five-year reflective sheeting” does not mean the product will perform for five years under every condition.

Durability may depend on:

• Vertical or horizontal exposure

• Climate zone

• UV intensity

• Material color

• Installation direction

• Substrate preparation

• Application temperature

• Printing system

• Overlaminate

• Cleaning method

• Chemical exposure

• Edge sealing

• Sign orientation

Check whether the durability statement is:

• Expected service life

• Tested performance

• Limited warranty period

• Unprinted-film durability

• Finished-graphic durability

• Vertical-exposure-only durability

A TDS should be read together with the warranty document. The two documents may apply different conditions and exclusions.

Step 9: Check Storage Conditions and Shelf Life

Shelf life is the period during which an unused roll should remain suitable for processing when stored under the stated conditions.

Check:

• Storage temperature

• Relative humidity

• Original packaging requirements

• Roll orientation

• Maximum stacking

• Direct-sunlight restrictions

• Manufacturing-date basis

• Purchase-date basis

• Recommended use after opening

Shelf life is not the same as outdoor durability.

A product with one year of shelf life may still provide several years of field performance after correct application.

Example: How to Decode an Incomplete TDS

The following example is hypothetical and is not an ABLAZE product specification.

The purpose of reading a TDS is not only to find values. It is also to identify which values are missing.

How to Compare Two Reflective Sheeting Data Sheets

Use the following comparison table before selecting a supplier.

Do not make a purchasing decision until the two columns are completed on the same basis.

Common Red Flags on a Reflective Sheeting TDS

Be cautious when a technical data sheet contains:

• One RA value without test angles

• White-only RA data for a multi-color order

• “High intensity” without a stated standard

• Thickness without stating the included layers

• “Strong glue” without substrate or test conditions

• Pressure-sensitive adhesive without application temperature

• Liner GSM without liner material

• Roll dimensions without tolerance

• “Printable” without naming the ink system

• Outdoor durability without exposure conditions

• A certificate for a different product code

• No revision date

• No manufacturer or traceable model

• No batch or roll identification

• Only typical values when the purchase requires guaranteed minimums

These issues do not automatically prove that the material is poor. They show that the documentation is insufficient for an informed purchasing decision.

Technical Information to Put on the Purchase Order

For a bulk reflective sheeting order, include:

1. Manufacturer and product code

2. Reflective technology

3. Face-film material

4. Color

5. Applicable standard and class

6. Minimum RA at every required geometry

7. Thickness definition and tolerance

8. Adhesive type and color

9. Approved substrate

10. Minimum application temperature

11. Release-liner material and GSM

12. Roll width, length and tolerances

13. Core size and winding direction

14. Permitted number of splices

15. Printing or converting method

16. Required durability

17. Packaging and labeling

18. Lot and roll traceability

19. Pre-shipment test documents

20. Approved sample reference

The purchase order should refer to the current TDS revision and approved sample.

Test the Product—Not Only the Document

A clear TDS reduces risk, but it cannot replace sample testing.

Before placing a container or large production order, verify:

• Surface appearance

• RA at the required angles

• Color

• Thickness

• Adhesion

• Liner release

• Printing

• Cutting

• Weeding

• Lamination

• Shrinkage

• Water and heat resistance

• Roll uniformity

• Batch traceability

Use an A4 sample for preliminary evaluation and a full-width pilot roll for production testing.

For a complete procedure, read How to Test Reflective Sheeting Quality Before a Bulk Order.

How ABLAZE Supports Technical Evaluation

ABLAZE, the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd., supplies reflective sheeting for:

• Commercial advertising

• Digital and screen printing

• Aluminum traffic signs

• Road-safety products

• Vehicle identification

• License plates

• Industrial safety

• OEM and private-label programs

Depending on the application, buyers can evaluate:

• ABLAZE Printable PVC Reflective Vinyl

• ABLAZE PET Reflective Sheeting

• ABLAZE Acrylic Reflective Sheeting

• ABLAZE Engineering Grade PET Reflective Sheeting

To recommend the correct product, please provide:

• Intended application

• Destination market

• Required standard

• Material color

• Substrate

• Printing or cutting method

• Required roll size

• Expected outdoor life

• Order quantity

• Packaging requirements

Changzhou Zhenghe can then provide a suitable product recommendation, technical data, samples and testing support.

Contact ABLAZE to request a reflective sheeting technical data sheet, sample or bulk quotation.

Frequently Asked Questions

What does RA mean on a reflective sheeting data sheet?

RA is the coefficient of retroreflection. It describes how effectively the material returns light toward the source under defined observation and entrance angles.

An RA value must include the test angles, color, unit, method and sample condition.

Is a typical RA value guaranteed?

Not necessarily.

A typical value normally represents an average or representative result. Use a stated minimum value or an agreed purchase specification for acceptance.

Does reflective sheeting thickness include the adhesive?

It depends on the manufacturer’s definition.

Some data sheets report film thickness without adhesive, while others report thickness with adhesive. Always confirm which layers are included.

Is the release liner included in total product thickness?

Sometimes, but not always.

Ask the supplier to separate face-film thickness, sheeting thickness with adhesive, liner thickness and total construction thickness.

Is a 150 gsm liner 150 microns thick?

No.

GSM measures weight per square metre. Microns measure thickness. Paper density and coating construction affect the relationship between the two.

Is a heavier release liner always better?

No.

A heavier liner can improve stiffness, cutting stability and handling, but its actual performance also depends on the paper construction, PE coating, moisture resistance and release force.

What does pressure-sensitive adhesive mean?

It means the adhesive forms contact when pressure is applied.

The term does not define whether the adhesive is permanent, removable, repositionable, high-tack or suitable for a particular substrate.

Can two RA values be compared directly?

Only when they use the same observation angle, entrance angle, color, orientation, test method and sample condition.

What tolerances should be listed on a reflective sheeting order?

Important tolerances may include width, length, thickness, liner weight, RA, color, roll weight, core size and permitted splices.

The exact limits should be agreed with the supplier.

Is a TDS enough to approve a bulk order?

No.

Use the TDS to define the product, then verify it through samples, a pilot roll, production testing, batch inspection and applicable third-party documentation.

Can ABLAZE provide samples before a bulk order?

Yes.

ABLAZE can provide suitable samples and technical information based on the buyer’s application, substrate, printing method, required grade, target market and expected outdoor life.
