The coefficient of retroreflection, written as RA or Rₐ, is the main photometric value used to describe how effectively reflective sheeting returns light toward its source.
However, an RA value is never a complete performance specification by itself.
A claim such as “RA = 400 cd/lx/m²” cannot be evaluated correctly unless the supplier also states the observation angle, entrance angle, material color, test method and sample condition.
This guide explains what RA means, how observation and entrance angles affect reflective performance, how laboratory geometry relates to real driving conditions, and how buyers should compare reflective sheeting test reports.
Quick Answer: What Does RA Mean?
The coefficient of retroreflection measures how much light a retroreflective surface returns toward an observer located close to the original light source.
It is normally expressed in:
candelas per lux per square metre — cd/lx/m²
For traffic signs, the light source is represented approximately by a vehicle headlamp, while the observer is represented by the driver’s eye.
A higher RA value normally indicates a stronger light return—but only when the following conditions are the same:
Observation angle
Entrance angle
Rotation or orientation
Sheeting color
Test method
Material condition
Printing or overlay condition
The most important rule is:
Never compare two RA values unless they were measured at the same geometry and under comparable test conditions.
What Is the Coefficient of Retroreflection?
Retroreflective materials return light in directions close to the direction from which it came.
This behavior is different from ordinary reflection.
A mirror redirects light according to the angle of incidence. A matte surface scatters light in many directions. Retroreflective sheeting concentrates a significant part of the returned light near the original source.
That is why a traffic sign illuminated by vehicle headlights can appear bright to the driver while appearing much less bright to someone standing away from the vehicle.
The International Commission on Illumination, or CIE, defines the coefficient of retroreflection as the coefficient of luminous intensity of a plane retroreflective surface divided by its area.
The RA Formula
The simplified formula is:
RA = I / (E⊥ × A)
Where:
RA = coefficient of retroreflection
I = luminous intensity returned in the observation direction, measured in candelas
E⊥ = illuminance at the sample on a plane perpendicular to the incident light, measured in lux
A = area of the retroreflective sample, measured in square metres
The result is expressed as:
cd/lx/m²
Conceptually, RA indicates how efficiently one square metre of reflective sheeting returns the available incident light toward a specified observation position.
What Does cd/lx/m² Mean?
Each part of the unit describes one element of the measurement:
Unit | Meaning |
|---|---|
cd | Candela: luminous intensity returned toward the observer |
lx | Lux: illuminance reaching the retroreflective material |
m² | Surface area of the tested material |
An RA value of 300 cd/lx/m² therefore represents the material’s light-return efficiency per unit of incident illumination and per square metre, at the stated test geometry.
RA Is Not the Same as Ordinary Brightness or Reflectance
RA should not be confused with:
Daytime brightness
Gloss
Color luminance factor
Percentage reflectance
Light emitted by a lamp
The exact luminance a driver will see on the road
Retroreflective sheeting does not generate light. Its visible appearance depends on the available illumination and the positions of the light source, material and observer.
A high RA value at one geometry does not guarantee equally high performance at every driving position.

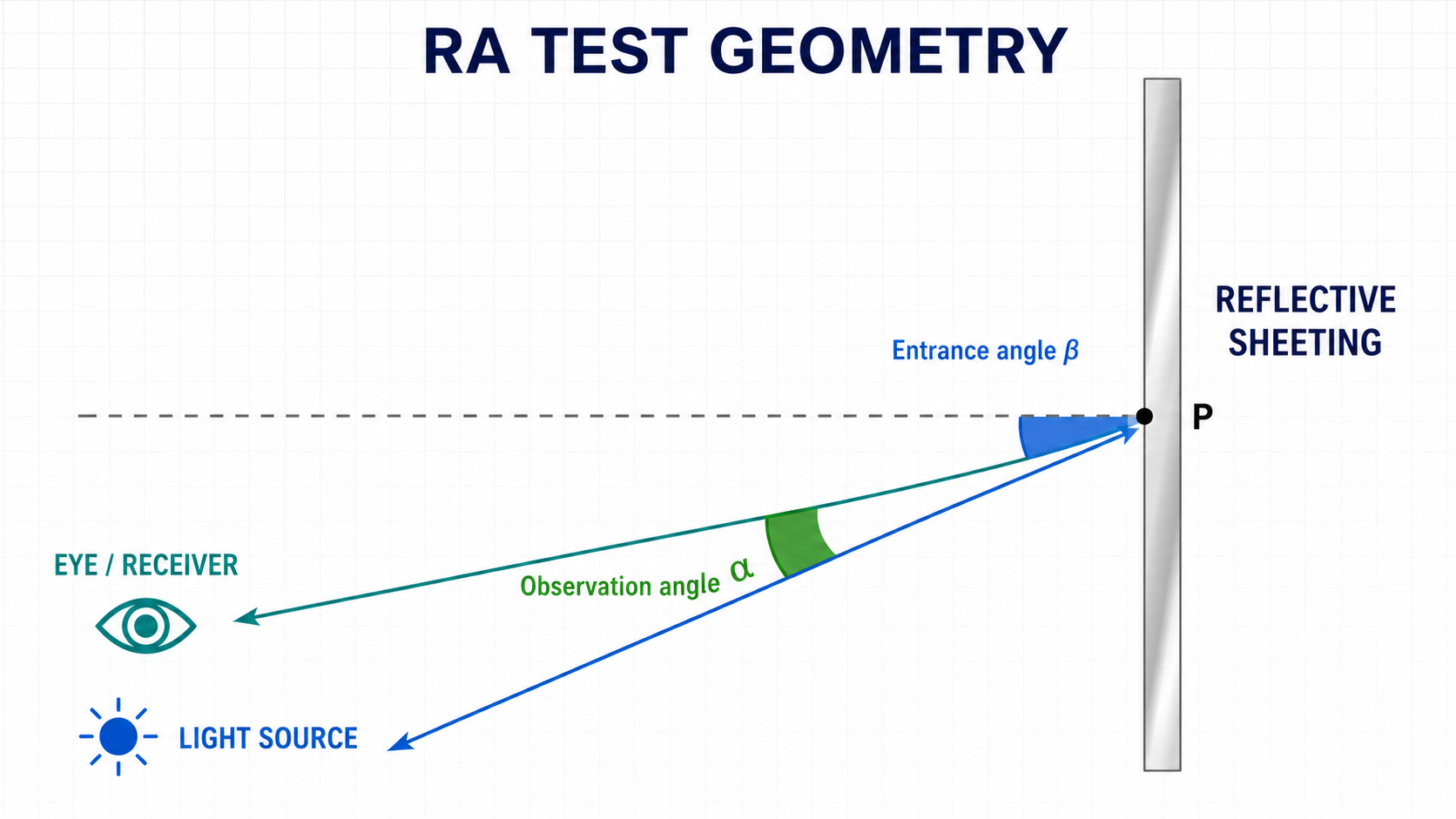

How Retroreflective Measurement Geometry Works
Three points define the basic geometry:
The light source
The retroreflective surface
The observer or measuring receiver
For a road sign, these points correspond approximately to the vehicle headlamp, the sign and the driver’s eye.
The two most important angles are the observation angle and the entrance angle.
What Is the Observation Angle?
The observation angle, represented by alpha (α), is the angle between:
The illumination axis from the light source to the retroreflective surface; and
The observation axis from the retroreflective surface to the observer or measuring receiver.

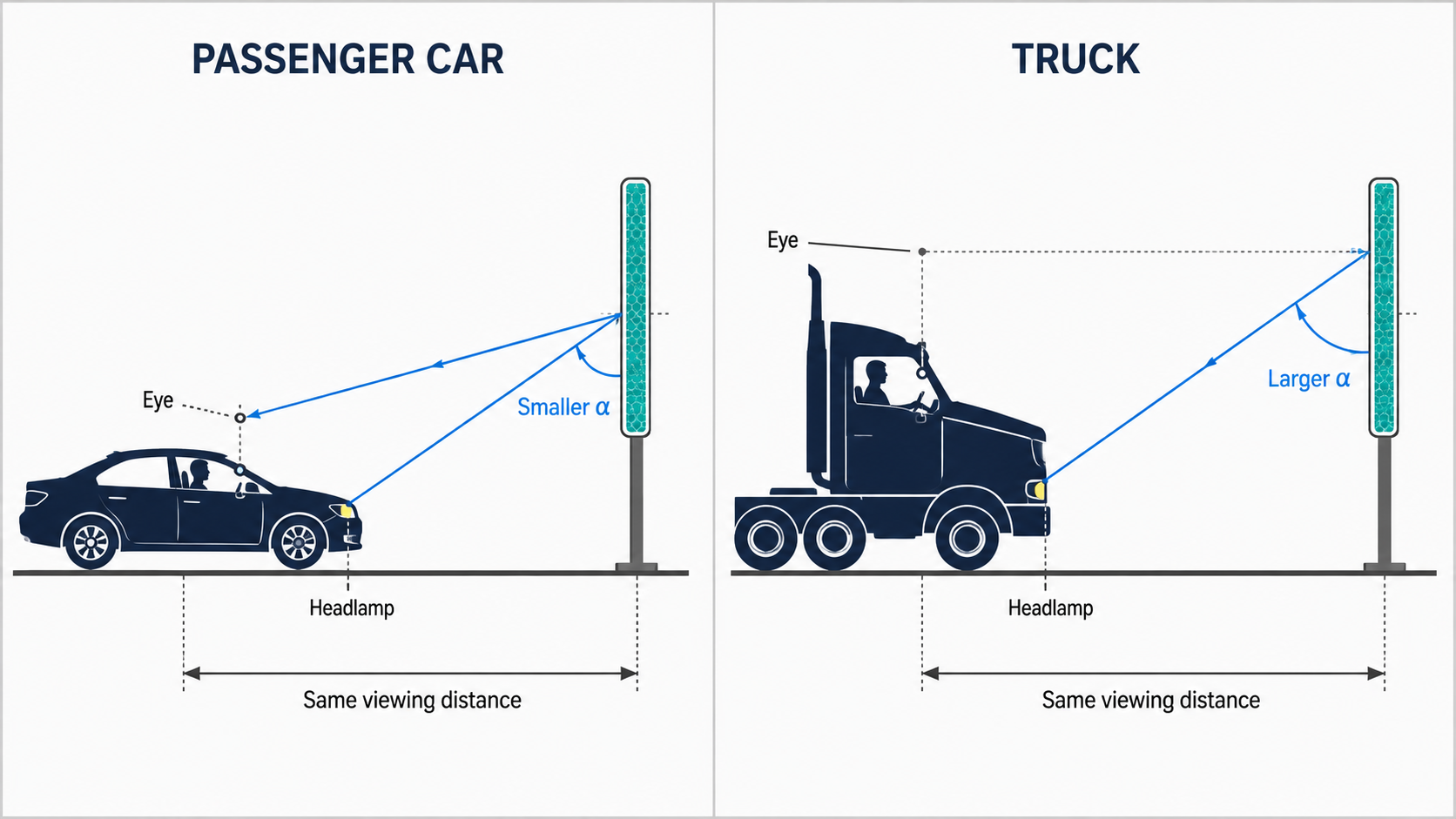

In practical driving terms, it is created by the separation between the vehicle headlamp and the driver’s eye.
The observation angle becomes larger when:
The vehicle moves closer to the sign
The driver’s eyes are positioned farther from the headlamps
The driver is seated higher, as in a truck or bus
The observer is displaced from the headlamp axis
Most reflective sheetings produce their highest RA values at small observation angles. The measured value normally decreases as the observation angle increases.
This is why RA at 0.2° is usually higher than RA at 0.5°, 1.0° or 2.0°.

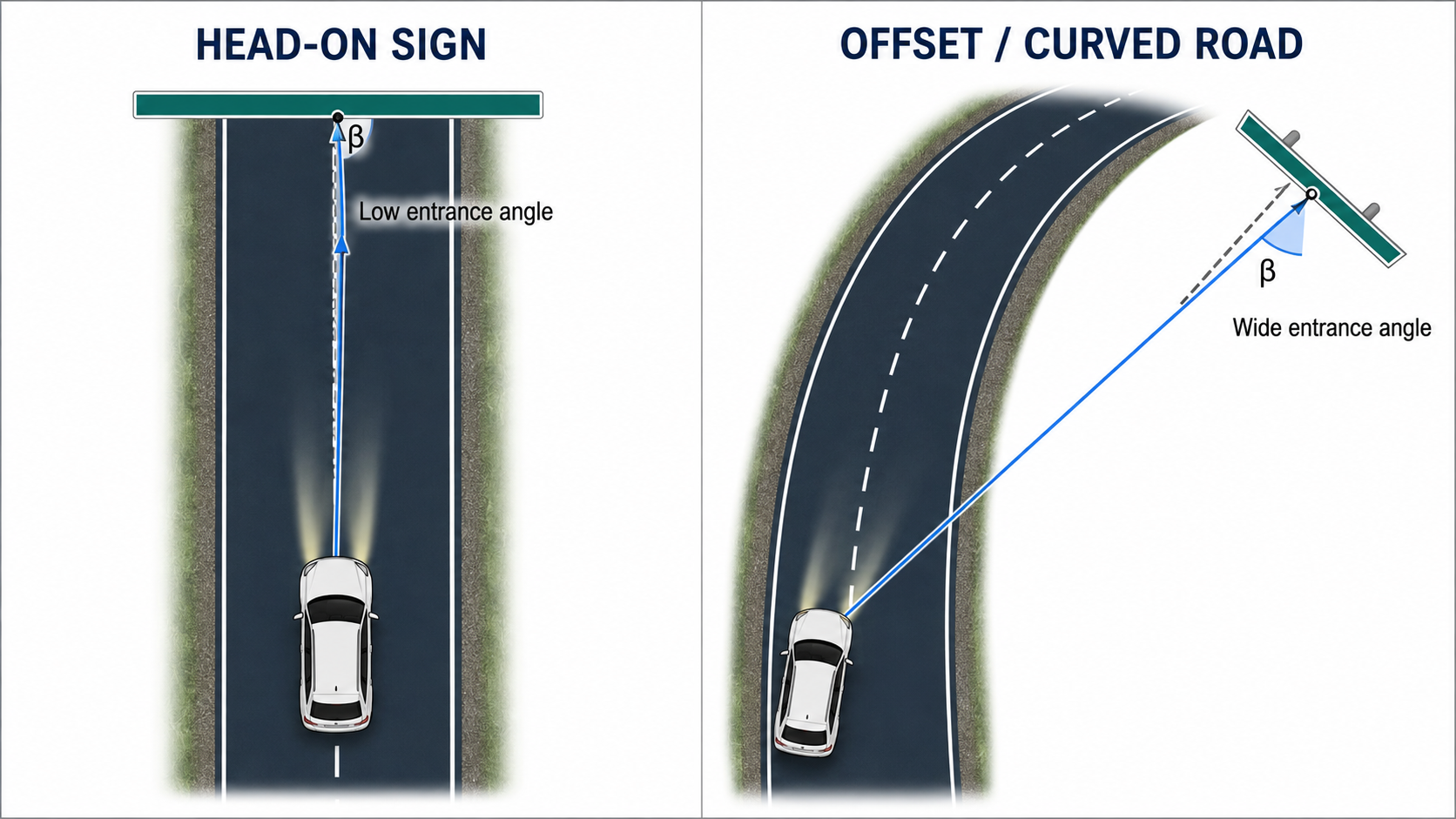

What Is the Entrance Angle?
The entrance angle, represented by beta (β), describes the relationship between the incoming light and the axis perpendicular to the reflective surface.
When light hits the sheeting almost head-on, the entrance angle is close to 0°.
The entrance angle becomes larger when:
A sign is installed far from the traffic lane
The road curves before the sign
The sign is mounted overhead
The sign face is tilted
A vehicle approaches from a side road
The sign is placed at an intersection or wide multilane road
The vehicle is close to an offset sign
Wide entrance-angle performance is therefore important for signs that are not located directly in front of approaching traffic.
Why Do Test Reports Show -4° and +30°?
This is a common source of confusion.
The magnitude of the true entrance angle is non-negative. However, technical specifications frequently describe entrance-angle components such as β₁ and β₂, which may be reported with positive or negative signs.
Therefore, a test table showing an entrance angle of -4° normally refers to a signed entrance-angle component used to define the test geometry. It does not mean that the physical angular separation is “less than zero.”
Common traffic-sign test geometries include combinations such as:
0.2° observation angle and -4° entrance-angle component
0.2° observation angle and +30° entrance-angle component
0.5° observation angle and -4° entrance-angle component
1.0° observation angle and +30° entrance-angle component
The exact combinations required depend on the applicable standard, sheeting type, color and project specification.
What Are Rotation and Orientation Angles?
Observation and entrance angles are not always the complete geometry.
Microprismatic reflective sheeting contains structured prism patterns. Depending on the optical design, its RA may change when the sample is rotated.
A complete technical evaluation may therefore include:
Observation angle, α
Entrance-angle components, β₁ and β₂
Rotation angle, ε
Sheeting orientation or datum direction
This is particularly important when comparing prismatic reflective sheeting.
Installers should follow the manufacturer’s orientation instructions and maintain consistent roll direction where required. A test report for prismatic sheeting should identify the test orientation when the applicable specification requires it.
What Do Common Observation and Entrance Angles Represent?
The following table provides a practical interpretation. It is a simplified guide rather than a substitute for a project standard.
Test Geometry | What It Helps Evaluate |
|---|---|
0.2° observation, near-head-on entrance | Long-distance light return under relatively favorable geometry |
0.5° observation, near-head-on entrance | Medium-distance performance or vehicles with greater eye-to-headlamp separation |
1.0° observation, near-head-on entrance | Shorter viewing distances and wider observation geometry |
0.2° observation, +30° entrance component | Long-distance visibility when the sign is significantly offset or angled |
0.5° or 1.0° observation with wide entrance angle | More demanding combined geometry involving proximity, vehicle height or sign placement |
A low-angle value is useful, but it does not describe the entire retroreflective performance envelope.
For highway, overhead, curved-road and heavy-vehicle applications, multi-angle data can be more informative than one headline RA value.

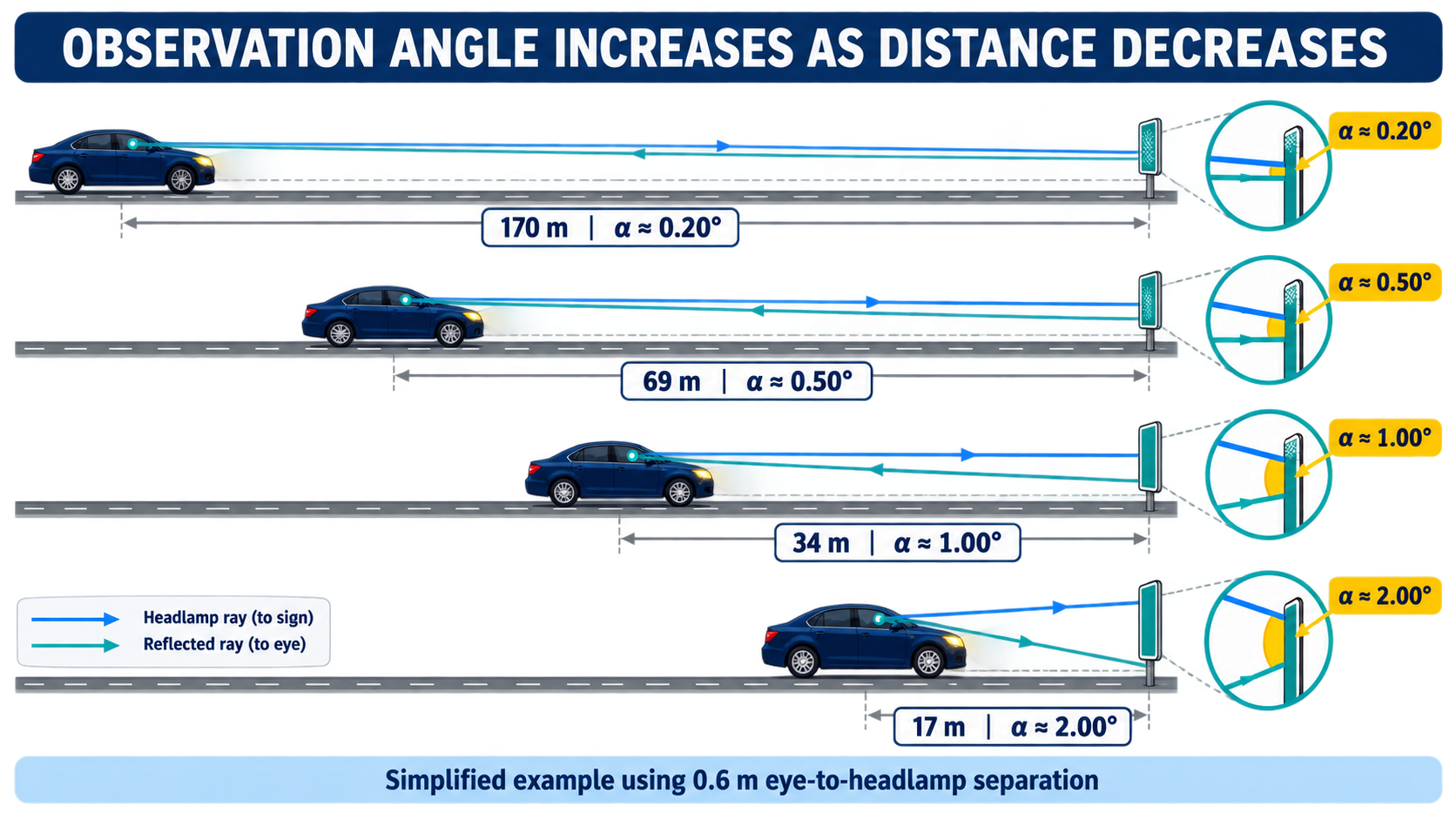

How Vehicle Distance Changes the Observation Angle
In a simplified two-dimensional model:
Observation angle ≈ arctan (eye-to-headlamp separation ÷ viewing distance)
If the effective separation between the headlamp and the driver’s eye is approximately 0.6 m, the observation angle changes roughly as follows:
Distance from the Sign | Approximate Observation Angle |
|---|---|
170 m | 0.20° |
69 m | 0.50° |
34 m | 1.00° |
17 m | 2.00° |
These values are illustrative. Actual road geometry also depends on vehicle dimensions, sign height, lateral offset, road curvature and which headlamp is used as the reference.
The important lesson is that the observation angle increases as the vehicle approaches the sign.
The geometry at which a driver first detects a sign is different from the geometry when the driver is close enough to read or pass it. A well-designed reflective material should therefore be evaluated over the angular range relevant to the application.

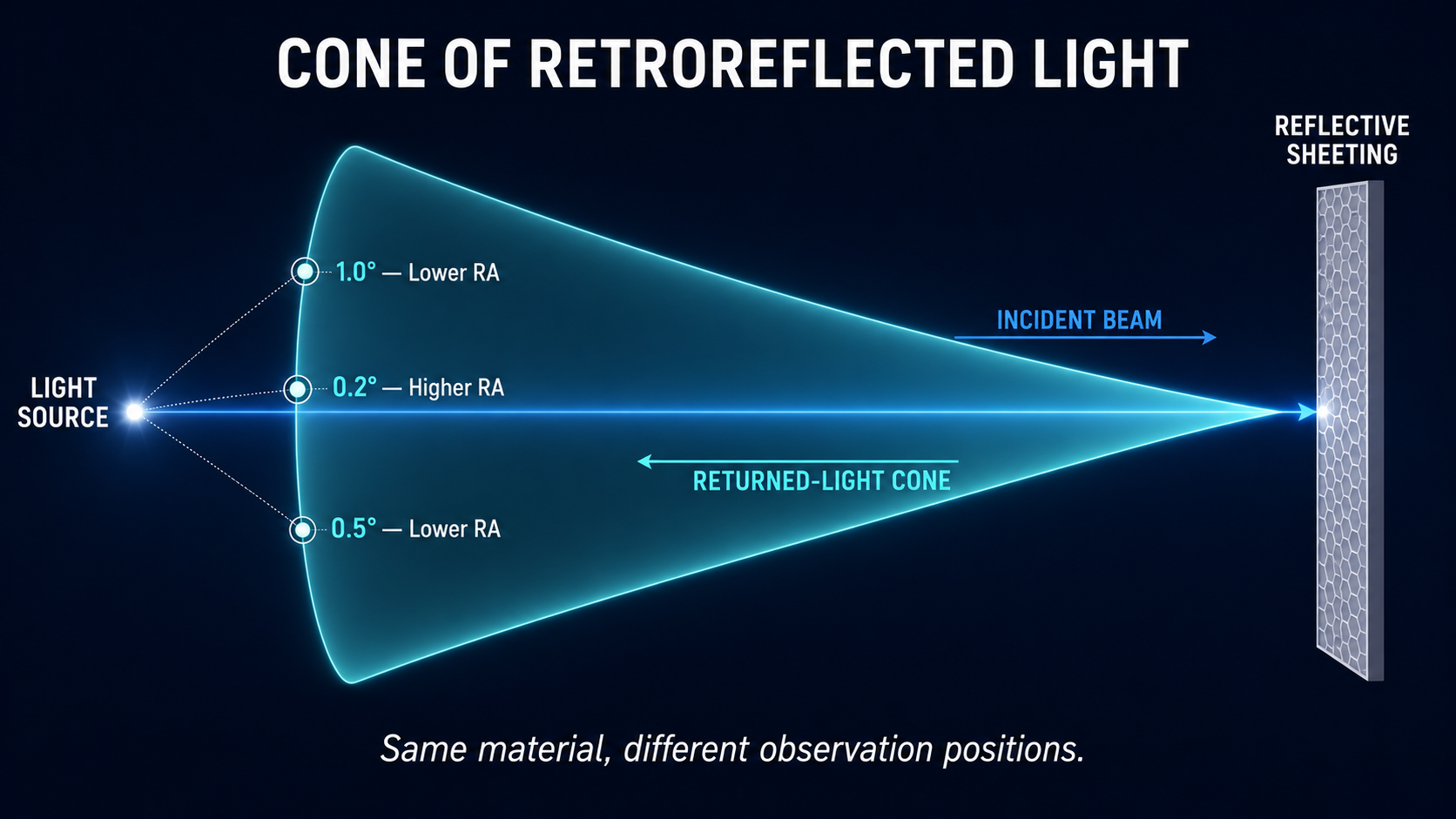

Why RA Decreases at Wider Angles
Retroreflective sheeting does not return equal intensity in every direction. It creates a distribution of returned light that is often described as a cone of retroreflection.
The light return is generally strongest close to the source axis. As the observer moves farther away from that axis, the measured intensity usually decreases.
At a wider observation angle:
The receiver moves farther from the center of the returned-light distribution
Less returned light reaches the receiver
The measured RA normally decreases
A wider entrance angle creates a different challenge. Light enters the glass beads or prisms more obliquely, which may reduce the amount of light that is efficiently returned toward the observer.
The exact rate of decline depends on the optical design. Two materials with similar RA at 0.2° may perform very differently at 0.5°, 1.0° or a +30° entrance-angle component.
How to Read an RA Table Correctly
A proper RA table should identify at least:
Observation angle
Entrance angle or entrance-angle components
Sheeting color
RA value
Unit
Applicable test method
Product model or construction
Consider the following hypothetical example:
Geometry | Product A | Product B |
|---|---|---|
0.2° / -4° | 420 | 370 |
0.5° / -4° | 180 | 210 |
0.2° / +30° | 150 | 175 |
1.0° / +30° | 35 | 48 |
Values are hypothetical and are not Ablaze product specifications.
Product A has the higher value at 0.2°/-4°, but Product B performs better at the other three geometries.
It would therefore be incorrect to say that Product A is universally “brighter.” Product selection depends on which geometries are important for the intended road and vehicle conditions.
A Practical Comparison Example
Suppose Supplier A advertises:
RA = 500 cd/lx/m² at 0.2° observation and -4° entrance
Supplier B advertises:
RA = 220 cd/lx/m² at 0.5° observation and +30° entrance
The first number is higher, but the two results cannot be directly compared. Supplier B was tested under a more demanding geometry.
To compare the products, request the RA values of both materials at identical:
Observation angles
Entrance angles
Colors
Orientations
Sample conditions
Test methods
Why a Single RA Number Is Not Enough
A single value may conceal weak performance at other angles.

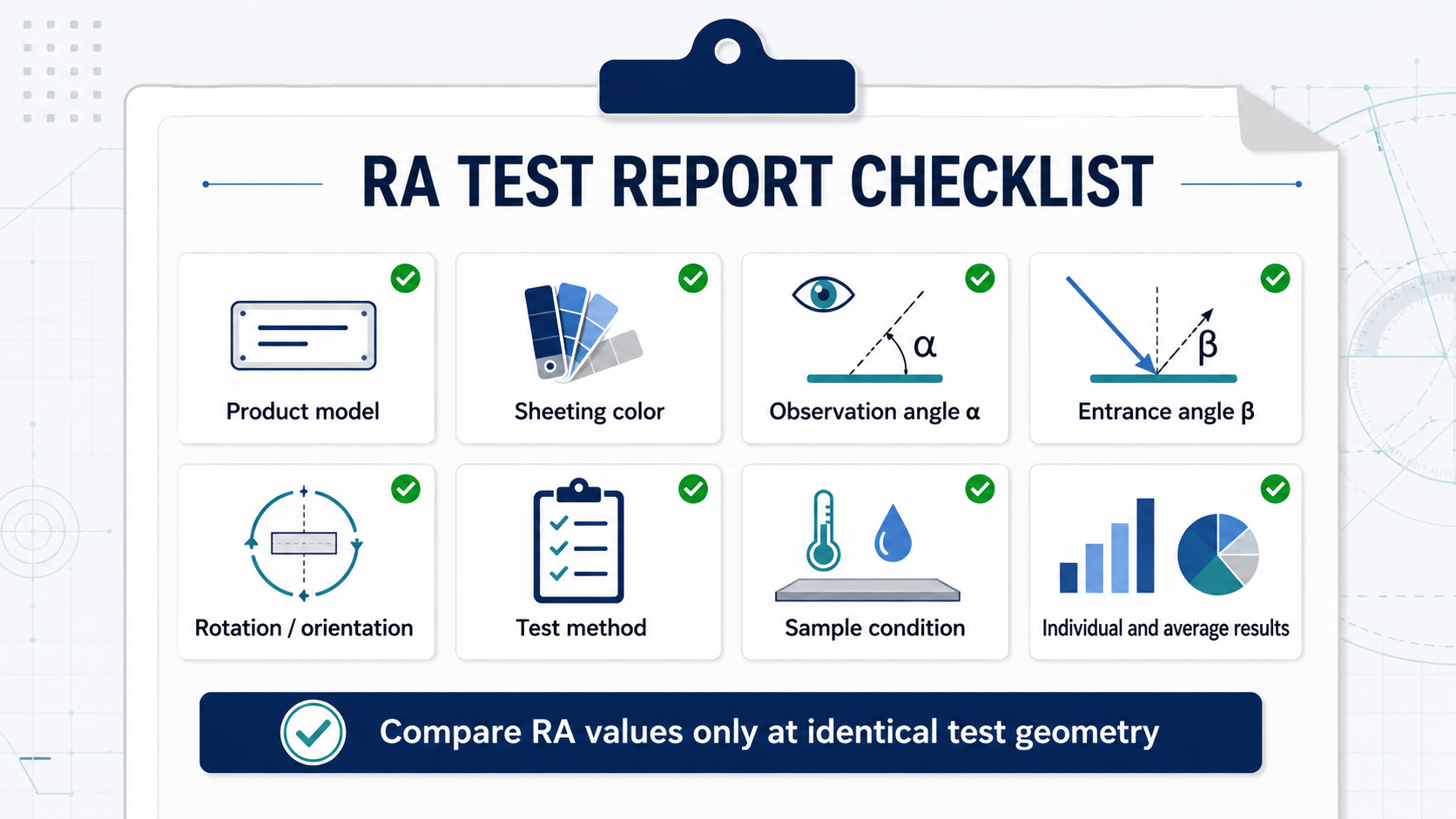

Before accepting a headline value, ask:
At what observation angle was it measured?
At what entrance angle was it measured?
Was β₂ set to 0°?
What was the rotation or orientation?
Which color was tested?
Was the sample unprinted, printed or laminated?
Which test standard was followed?
Is the report for the exact product model being offered?
If these details are missing, the RA claim is incomplete.
Glass-Bead vs Microprismatic Sheeting: How Their RA Profiles Differ
Two major optical systems are used in retroreflective sheeting.
Glass-Bead Reflective Sheeting
Glass-bead sheeting uses microscopic glass spheres to bend incoming light toward a reflective layer and return it toward the source.
Depending on its construction and grade, glass-bead sheeting can provide:
Cost-effective retroreflection
Suitable performance for commercial and engineering applications
Relatively smooth and predictable optical behavior
Good value for municipal, rural and standard signage projects
Its RA is generally lower than that of high-performance microprismatic sheeting, particularly at favorable small observation angles.
Different glass-bead constructions are designed for different processing requirements:
- Engineering PET reflective sheeting is suitable for flat aluminum traffic-sign panels, plotter cutting and rigid signage systems.
- Engineering Acrylic reflective sheeting is better suited to flexible safety products, curved surfaces, embossing and UV printing.
- Ablaze EGP reflective sheeting provides a cost-effective option for municipal, rural and medium-duty traffic-sign projects.
Microprismatic Reflective Sheeting
Microprismatic sheeting uses precisely formed cube-corner optical elements.
High Intensity Prismatic reflective sheeting uses precisely formed cube-corner optical elements to provide higher light-return efficiency for demanding road-safety applications.
Depending on the prism design, it can provide:
Higher light-return efficiency
Higher RA at specified geometries
Better performance for demanding traffic applications
Improved visibility for highway, overhead or wide-angle installations
However, “prismatic” does not automatically mean that every product performs better at every angle. Prism geometry, orientation, color and manufacturing consistency all affect the result.
Buyers should compare the complete multi-angle RA table rather than relying only on the terms “glass bead,” “HIP,” “prismatic” or “Diamond Grade.”
For a more detailed comparison, read our guide to glass-bead vs microprismatic reflective sheeting.
ASTM D4956, ASTM E810 and ASTM E1709 Explained
These standards have different functions.
ASTM D4956
ASTM D4956 is a material specification for flexible retroreflective sheeting used on traffic-control signs, delineators, barricades and related devices.
It establishes requirements for different sheeting types, colors and performance characteristics.
The applicable edition should always be confirmed in the tender or purchase contract.
ASTM E810
ASTM E810 describes a laboratory method for measuring the coefficient of retroreflection of retroreflective sheeting using coplanar geometry.
It requires the observation and entrance angles to be specified. Rotation angles may also be specified when relevant.
ASTM E810 is a test method. It does not, by itself, determine which minimum RA value a project must require.
ASTM E1709
ASTM E1709 covers field measurement of traffic-sign retroreflectivity with a portable retroreflectometer at a specified observation angle.
It is commonly associated with inspection of installed signs rather than complete laboratory qualification of new sheeting.
In simple terms:
Standard | Main Purpose |
|---|---|
ASTM D4956 | Specifies performance requirements for traffic-control sheeting |
ASTM E810 | Measures reflective sheeting RA in the laboratory |
ASTM E1709 | Measures installed sign retroreflectivity in the field |
Local standards, national road-authority specifications and tender documents may require different test geometries or classifications.

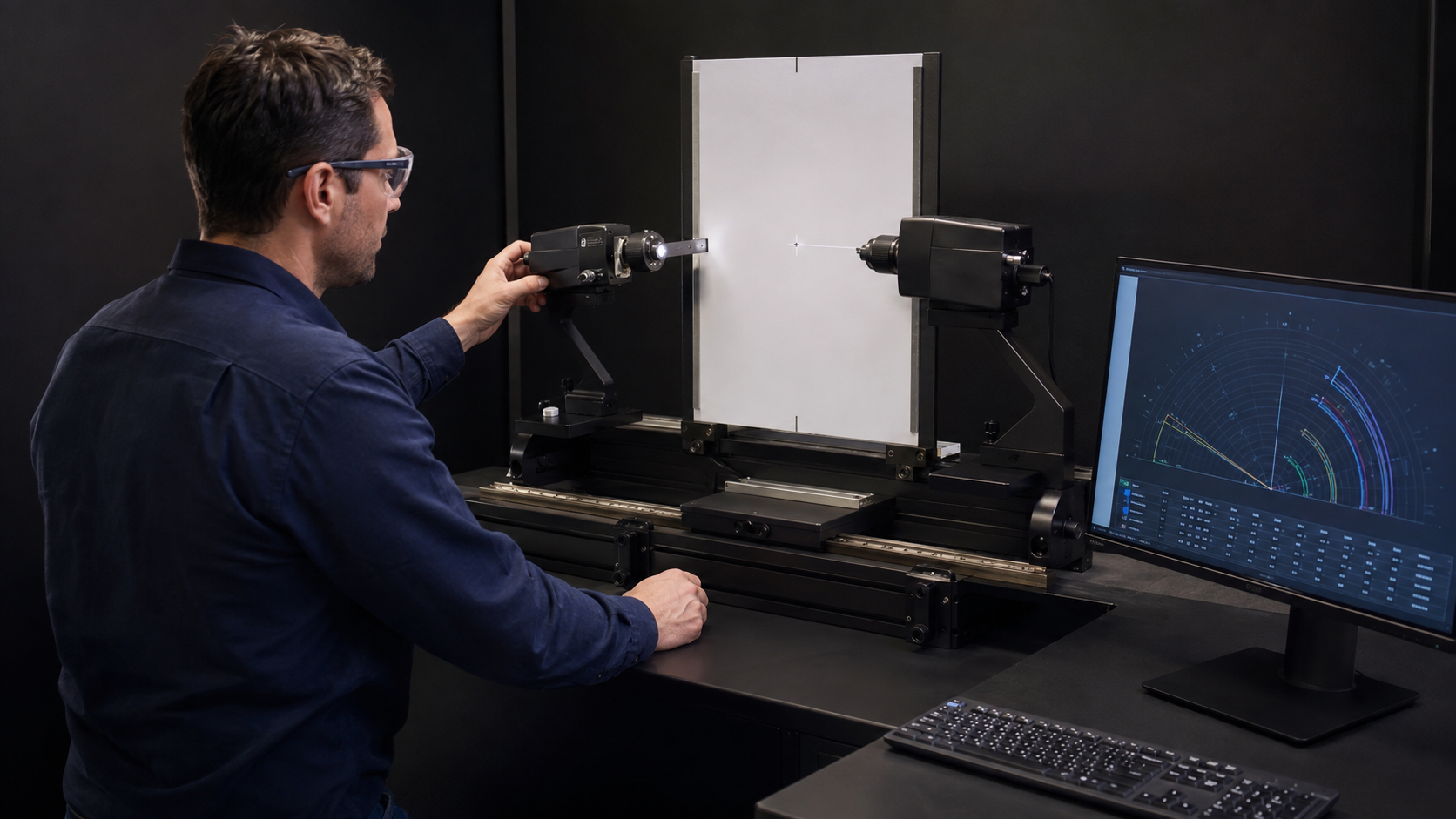

How Reflective Sheeting RA Is Tested
A laboratory RA test generally follows this workflow:
Identify the required standard and test geometry.
Prepare representative samples from the relevant product and color.
Condition the samples as required by the test method.
Identify the machine direction and datum orientation where applicable.
Calibrate the retroreflectometer using an appropriate reference standard.
Set the required observation and entrance angles.
Measure multiple samples or locations.
Record the individual results and calculate the required average.
Report the unit, geometry, color, orientation and sample condition.
Compare the results with the applicable specification.
Laboratory testing should be performed under controlled conditions so that stray light does not distort the readings.
Portable instruments are useful for production checks and installed-sign inspections, but their geometry and calibration must still match the intended specification.
For a broader incoming-inspection procedure, see our reflective sheeting quality testing checklist.
What Can Change the RA of a Finished Traffic Sign?
The RA of unprocessed reflective sheeting is not always the same as the RA of the finished sign.
Color
White sheeting generally has a higher RA than darker colors because pigments and color layers absorb part of the light.
Never apply a white-sheeting value to red, green, blue or another color.
Printing Ink
Transparent traffic-sign inks, screen-printing inks and digital inks may reduce the amount of light entering and leaving the reflective layer.
Ink density, color, curing and layer thickness can all influence the final result.
Overlay Film and Laminate
An overlay may add optical interfaces, surface reflection or light absorption. It can also influence nighttime color and angular performance.
Printing Compatibility
Poorly selected ink may crack, peel or interfere with the reflective surface. Excessive curing temperature may also affect some material constructions.
For commercial graphics and digitally printed signage, buyers should choose advertising-grade reflective sheeting specifically designed for the intended ink and printing system.
The sheeting, ink, overlay and processing method should be evaluated as a complete system.
Dirt and Surface Contamination
Dust, oil, road film and water can reduce the light reaching the optical elements. Field readings should be taken on a clean, dry surface unless the applicable procedure states otherwise.
Weathering
UV exposure, moisture, heat, oxidation and surface degradation can reduce RA over time. Initial RA and retained RA after weathering are different performance questions.
Application and Orientation
Wrinkles, incorrect stretching, poor adhesion, surface curvature and inconsistent prismatic orientation may affect the finished sign’s performance.
Buyer Checklist: What to Request from a Reflective Sheeting Supplier
Before placing a bulk order, request the following information:
Exact product model
Material construction
Reflective technology
Sheeting grade or type
Color
RA table at the required observation and entrance angles
Test method and standard edition
Rotation or orientation used during testing
Individual readings or average results
Test report date
Laboratory information
Batch or sample identification
Original-sheeting and finished-system data where necessary
Printing and overlay compatibility
Weathering or retained-retroreflection data
Representative production sample
For printed traffic signs, confirm whether the report applies to:
Unprinted base sheeting
Printed colored areas
Overlay film
Laminated material
The complete finished sign system
A general report for a product family should not automatically be treated as proof for every color, construction or processed version.
How to Choose Reflective Sheeting by Application
The best reflective sheeting is not necessarily the product with the highest RA at one test angle. Selection should consider the application, sign position, required viewing geometry, printing method, substrate, outdoor durability and applicable local standard.
Application | Recommended Reflective Material | Why It Is Suitable | Key Performance Priority |
|---|---|---|---|
Commercial advertising signs and printed graphics | Provides cost-effective nighttime visibility with different options for digital printing, screen printing and plotter cutting | Printing compatibility, ink adhesion, flexibility and project duration | |
Temporary warning and promotional signs | Suitable for flat signboards, reflective lettering and short-term outdoor warning applications | Required service period, cutting performance and basic nighttime visibility | |
Flat aluminum traffic-sign panels | Its semi-rigid structure provides stable flatness, accurate plotter cutting and reliable application to rigid metal panels | Dimensional stability, adhesion, color-specific RA and outdoor durability | |
Cost-sensitive municipal and rural road signs | Provides an economical glass-bead reflective solution for large-volume road-sign projects where premium prismatic performance is not required | Project specification, required RA, service period and total material cost | |
Curved or flexible traffic-safety facilities | Better suited to curved plastic surfaces, traffic cones, delineators, warning posts, embossing and specialty identification products | Flexibility, surface compatibility, processing method and adhesion | |
Urban traffic and permanent warning signs | Engineering Grade or High Intensity Prismatic Reflective Sheeting | The appropriate grade can be selected according to traffic speed, surrounding light, sign position and required recognition distance | Multi-angle RA, outdoor durability, sign contrast and local traffic requirements |
Highways, expressways and overhead guide signs | HIP or high-performance microprismatic/DG reflective sheeting | Higher-efficiency prismatic optics provide stronger long- and medium-distance visibility under demanding road geometries | RA at multiple observation and entrance angles, orientation, weathering and compliance |
Construction-zone and roadwork signs | Engineering Grade PET or HIP Reflective Sheeting | Engineering Grade is suitable for general temporary warning signs, while HIP provides greater visibility for higher-speed or higher-risk work zones | Traffic speed, recognition distance, installation period and applicable work-zone standard |
Trucks, trailers and commercial vehicles | Designed to outline the position, width and length of large vehicles under nighttime illumination | Vehicle-marking standard, color pattern, adhesion, orientation and weather resistance | |
Vehicle license plate manufacturing | Designed for embossing, stamping, printing and the production of vehicle registration plates | Required national standard, RA geometry, ink adhesion, embossing performance and weather resistance |
Important: This table provides a product-selection direction, not a compliance decision. Before placing an order, confirm the governing standard, required RA values for each color, observation and entrance angles, processing method, expected service life and finished-product test requirements.
Ablaze Reflective Sheeting Solutions
Changzhou ZhengHe New Material Technology Co., Ltd. manufactures and supplies Ablaze reflective materials for advertising, traffic-sign, vehicle-safety and identification applications.
The Ablaze product range includes:
Glass-bead PET and acrylic reflective materials
Economic engineering-grade solutions
Diamond Grade reflective sheeting
When requesting an Ablaze recommendation, buyers should provide:
Destination country
Applicable standard
Required RA table
Sheeting color
Sign type
Substrate
Printing method
Expected outdoor service period
Roll size and order quantity
This information allows the Ablaze team to recommend a material based on application geometry and processing requirements—not on a single RA number alone.
For complete traffic-sign material options, visit our Road Safety and Traffic Signs solutions.
Frequently Asked Questions
What does RA stand for in reflective sheeting?
RA stands for the coefficient of retroreflection. It measures how efficiently a plane retroreflective surface returns incident light toward a specified observation direction per unit area.
What is the unit of RA?
RA is expressed in candelas per lux per square metre, written as cd/lx/m² or cd·lx⁻¹·m⁻².
Is a higher RA value always better?
A higher RA normally indicates stronger light return at the stated test geometry. However, values measured at different angles, colors or sample conditions cannot be directly compared.
Why is RA higher at a 0.2° observation angle?
At 0.2°, the observer is relatively close to the incident-light axis and generally receives a stronger part of the retroreflected-light distribution. As the observation angle increases, the measured RA normally decreases.
What does a -4° entrance angle mean?
In many specifications, -4° refers to a signed entrance-angle component, normally β₁. The magnitude of the physical entrance angle is not negative; the sign identifies the direction of the test geometry.
What observation angle represents truck drivers?
There is no single angle for every truck. Trucks usually create wider observation angles than passenger cars at the same distance because the driver’s eyes are positioned farther above the headlamps. Values at 0.5°, 1.0° or other required angles can help evaluate this condition.
Can I compare reflective sheeting using a flashlight photo?
A flashlight photograph can demonstrate the presence of retroreflection, but it cannot provide a standardized RA value. Camera exposure, distance, light position and viewing geometry can all change the image.
Does printing reduce retroreflectivity?
It can. Ink, overlays and laminates may absorb or redirect part of the light. Critical applications should evaluate the complete processed sign system rather than relying only on the RA of unprinted base sheeting.
How many angles should a buyer request?
The required angles should come from the applicable standard or tender. For more demanding applications, request multiple observation and entrance-angle combinations rather than only 0.2°/-4°.
Are laboratory RA and actual road brightness the same?
No. RA measures light-return efficiency at a defined geometry. The luminance seen by a driver also depends on headlamp intensity, distance, sign size, sign position, color, weather, contamination and surrounding light.
Conclusion
The coefficient of retroreflection is one of the most important values in a reflective sheeting specification, but RA must never be separated from its measurement geometry.
Remember these four principles:
RA must be stated with observation and entrance angles.
Only compare products at identical test conditions.
A high value at 0.2°/-4° does not describe the complete angular performance.
For printed or laminated signs, evaluate the finished material system where required.
For a technical recommendation, sample evaluation or OEM reflective sheeting quotation, contact Changzhou ZhengHe New Material Technology Co., Ltd. and provide your required standard, colors, test angles, application and processing method.
Ablaze — reflective material solutions designed around real applications, measurable performance and reliable production.
RELATED NEWS
Coefficient of Retroreflection Explained: RA, Observation Angle And Entrance Angle
Coefficient of Retroreflection Explained: RA, Observation Angle and Entrance AngleThe coefficient of retroreflection, written as RA or Rₐ, is the main photometric value used to describe how effectively reflective sheeting returns light toward its source.However, an RA value is never a complete perfo
Engineering Grade Vs HIP Reflective Sheeting: Which One Should You Choose?
Choosing reflective sheeting is not simply about finding the brightest product.For sign manufacturers, distributors, contractors, and material buyers, one common question is:Should I choose Engineering Grade or High Intensity Prismatic (HIP) reflective sheeting?The short answer is:Engineering Grade
