How To Cut Reflective Sheeting With A Plotter

Reflective sheeting can be cut with many standard vinyl cutting plotters, but it normally requires more careful setup than ordinary sign vinyl.

The main reason is simple: reflective sheeting has a thicker and more complex structure. Glass beads, prism structures, surface films, adhesive and release liner can all affect how the blade moves through the material.

A setting that works perfectly for normal PVC vinyl may produce incomplete cuts, rough edges or difficult weeding on reflective material.

The safest production method is to use a sharp blade, start with conservative machine settings and always perform a test cut before cutting the full job.

This guide explains how sign manufacturers can set up a plotter, choose a blade and solve common reflective sheeting cutting problems.

Quick Answer: Can Reflective Sheeting Be Cut With a Plotter?

Yes.

Many reflective sheeting products are suitable for electronic or plotter cutting.

The basic process is:

1. Confirm that the reflective sheeting is suitable for plotter cutting.

2. Load the material straight into the cutter.

3. Use a clean, sharp blade.

4. Start with the cutter manufacturer's recommended settings.

5. Perform a small test cut.

6. Adjust blade force and speed gradually.

7. Check whether the graphic weeds cleanly.

8. Cut the production job only after the test passes.

The correct settings depend on the exact reflective sheeting, cutter, blade, design and release liner.

Do not copy one pressure setting from another material and assume it will work.

Why Is Reflective Sheeting Harder to Cut Than Normal Vinyl?

Ordinary sign vinyl is usually relatively thin and soft.

Reflective sheeting may contain:

• A protective or printable face film

• Glass beads or microprismatic optical elements

• Reflective or bonding layers

• Pressure-sensitive adhesive

• Release liner

These layers make the material thicker and sometimes more abrasive than ordinary vinyl.

Reflective materials can therefore wear cutting blades faster.

A dull blade may still move through the material, but the cut edge becomes less clean.

Common symptoms include:

• Corners that do not separate

• Small letters lifting

• Torn edges

• Incomplete cuts

• Difficult weeding

• Adhesive pulling between letters

• Excessive pressure needed to finish the cut

Before increasing cutting force again and again, check the blade condition.

A new blade often solves a problem that looks like an incorrect machine setting.

1. Confirm the Reflective Sheeting Material First

Do not treat every reflective sheeting roll as the same cutting material.

PVC, PET, acrylic and microprismatic reflective products can behave differently.

PVC Reflective Vinyl

PVC is flexible and commonly used for advertising graphics, decals and commercial signs.

It is generally easy to plotter cut when the correct blade and force are used.

Because the film is flexible, very small details may move more during weeding than on a stiffer material.

PET Reflective Sheeting

PET is more dimensionally stable.

This makes it a practical material for:

• Cut letters

• Safety symbols

• Flat sign graphics

• Industrial warning signs

• Traffic sign production

Its stiffness can help maintain clean shapes during cutting and weeding.

Acrylic Reflective Sheeting

Acrylic reflective sheeting can also be cut, but the exact construction matters.

Some acrylic materials are easier to tear or fracture than PET, so excessive cutting pressure or very small details may create problems.

Microprismatic Reflective Sheeting

Prismatic sheeting is generally thicker and harder than ordinary commercial reflective vinyl.

It may require:

• A sharper blade

• A different blade angle

• More cutting force

• Lower cutting speed

• Larger minimum details

Always check the technical instructions for the exact product.

For a detailed material comparison, see our PET vs PVC vs Acrylic Reflective Sheeting guide.

2. Use a Sharp and Clean Blade

Blade condition is one of the most important factors in reflective sheeting cutting.

Do not wait until the blade completely stops cutting.

A blade may already be too dull when:

• Cut edges become rough

• Corners remain connected

• Small graphics are difficult to weed

• More force is required than before

• Adhesive begins to pull

• The blade drags the material

Reflective films can shorten blade life faster than ordinary sign vinyl.

Keep the blade and blade holder clean.

Small pieces of adhesive or film inside the holder can prevent the blade from rotating freely and produce poor corners.

3. Which Blade Angle Should You Use?

There is no single blade angle for every reflective sheeting.

For many standard reflective vinyl products, a sharp 45-degree blade can be a good starting point.

For thicker or more demanding reflective materials, including some microprismatic products, a 60-degree blade may provide better cutting performance.

Avery Dennison, for example, has published guidance noting that both 45-degree and 60-degree blades can work with reflective films and recommends a 60-degree blade for some prismatic materials.

However, cutter and blade systems vary.

Always confirm that the blade is compatible with your machine.

Practical Rule

Use the least aggressive blade that produces a clean and stable cut.

Do not choose a deeper blade only because the material is reflective.

Too much exposed blade can cut deeply into the liner and create other problems.

4. Do a Test Cut Before Every Production Batch

This is the most important step.

Even if you cut the same reflective sheeting last week, perform another test when:

• A new roll is opened

• The batch changes

• The blade is changed

• The cutter changes

• The design becomes more detailed

• The liner changes

• The warehouse temperature changes significantly

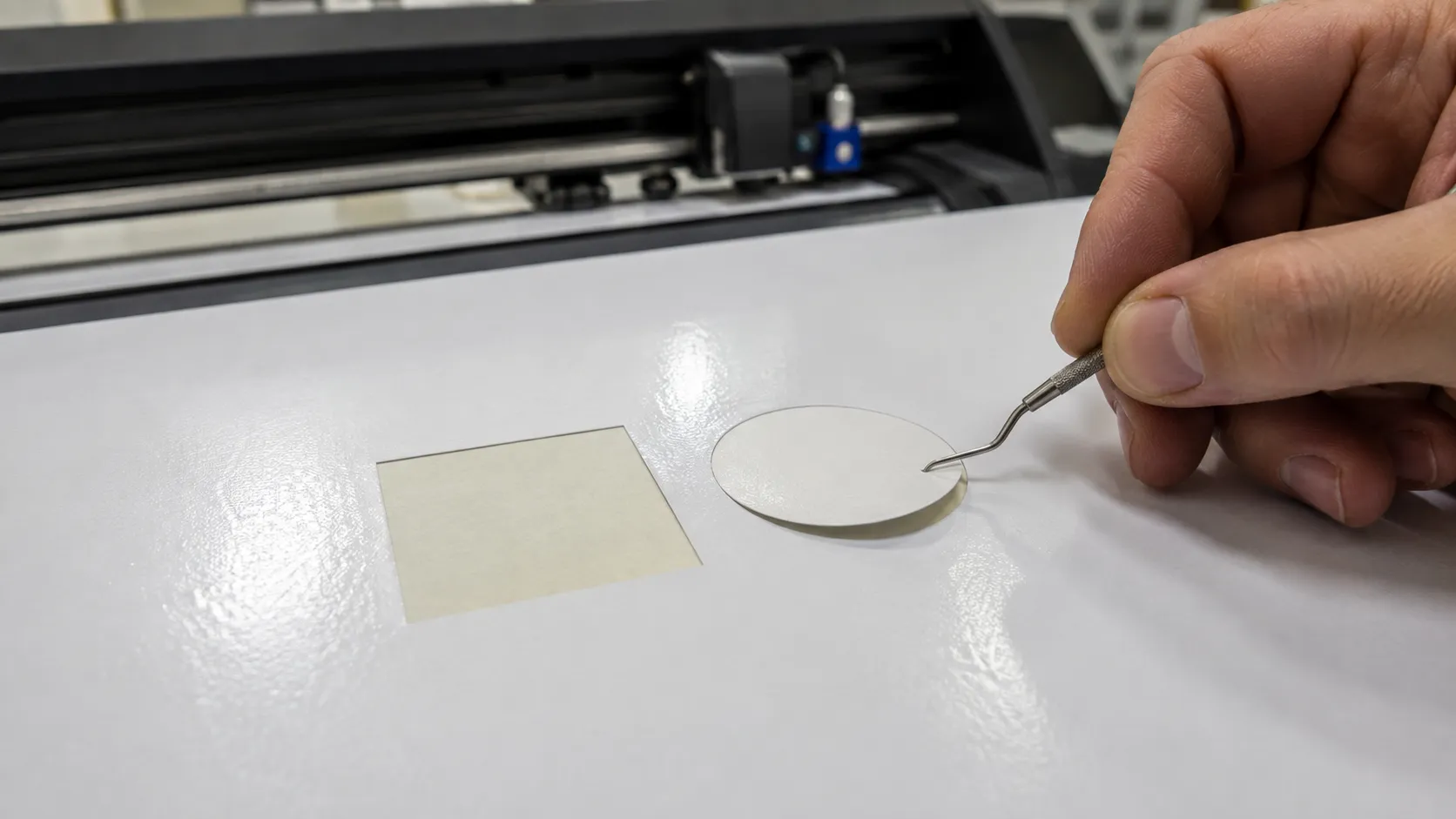

A simple square-and-circle test is usually enough.

A Good Test Cut Should Show:

• The graphic separates cleanly

• Corners remain sharp

• The surrounding material weeds easily

• The release liner remains intact

• The blade does not cut deeply through the backing paper

Some reflective sheeting manufacturers allow the blade to leave a very light score on the liner, but deep cutting should be avoided.

The goal is to cut the reflective material and adhesive consistently without unnecessarily damaging the release liner.

5. How to Adjust Cutting Force

Do not immediately use high force.

Start from the cutter or material manufacturer's recommended setting and increase the force gradually.

If the Material Does Not Weed Cleanly

Slightly increase cutting force and test again.

Possible signs of insufficient force include:

• Letters remain connected

• Corners do not release

• Adhesive stretches during weeding

• Some areas are not fully cut

If the Liner Is Cut Too Deeply

Reduce the force.

Too much force can:

• Damage the release liner

• Increase blade wear

• Make small graphics difficult to transfer

• Create inconsistent cutting

• Cause unnecessary production waste

The correct force is the minimum force that gives a clean, repeatable cut.

6. Cutting Speed Matters Too

When a cut is poor, many operators only change force.

Speed is equally important.

A high cutting speed can reduce accuracy when producing:

• Small letters

• Sharp corners

• Detailed symbols

• Tight curves

• Complex warning graphics

If corners look distorted or small graphics lift, reduce the cutting speed and run another test.

Reflective material does not need to be cut as quickly as possible.

Production speed is useless if the job takes twice as long to weed.

A slightly slower clean cut can produce a faster total workflow.

7. Check Blade Extension

Excessive blade extension is a common cutting mistake.

The blade should not extend far out of the holder.

Only enough blade needs to be exposed to cut through the face material and adhesive layer.

Too much blade exposure can:

• Cut deeply into the liner

• Increase drag

• Damage small details

• Accelerate blade wear

• Reduce cutting consistency

Do not use blade extension to compensate for a dull blade.

Replace the blade instead.

8. Load the Roll Straight

Good cutting begins before the blade touches the material.

A reflective sheeting roll must feed straight through the plotter.

Before cutting:

• Check that the roll is aligned

• Position pinch rollers correctly

• Keep the roll free to unwind

• Avoid excessive tension

• Make sure the material is not touching obstacles

• Confirm enough space behind and in front of the cutter

For long graphics, feed some material forward and backward before starting.

This helps confirm that the roll will track properly.

If the material slowly moves sideways during a long cut, the beginning and end of the design may no longer align.

9. Keep the Reflective Surface Clean

Dust and small particles can interfere with the blade or pinch rollers.

Before loading the roll:

• Inspect the surface

• Remove loose dust

• Check the edges

• Make sure the liner is not damaged

• Avoid oily fingerprints

Do not apply oil or lubricant to the reflective surface.

Contamination may later affect adhesive performance or printing.

If a roll has been stored for a long time, inspect it before cutting.

10. Kiss Cutting vs Through Cutting

Most reflective lettering and sign graphics use kiss cutting.

Kiss Cutting

The blade cuts:

• Reflective face material

• Adhesive

But leaves the release liner largely intact.

This allows the graphic to remain together during:

• Weeding

• Premasking

• Transfer

• Installation

Through Cutting

The blade cuts through both:

• Reflective material

• Release liner

This is sometimes used when producing separate labels, patches or individual shapes.

However, through cutting requires different machine settings and may need additional space between pieces.

Do not accidentally use through-cut pressure when the production job only requires kiss cutting.

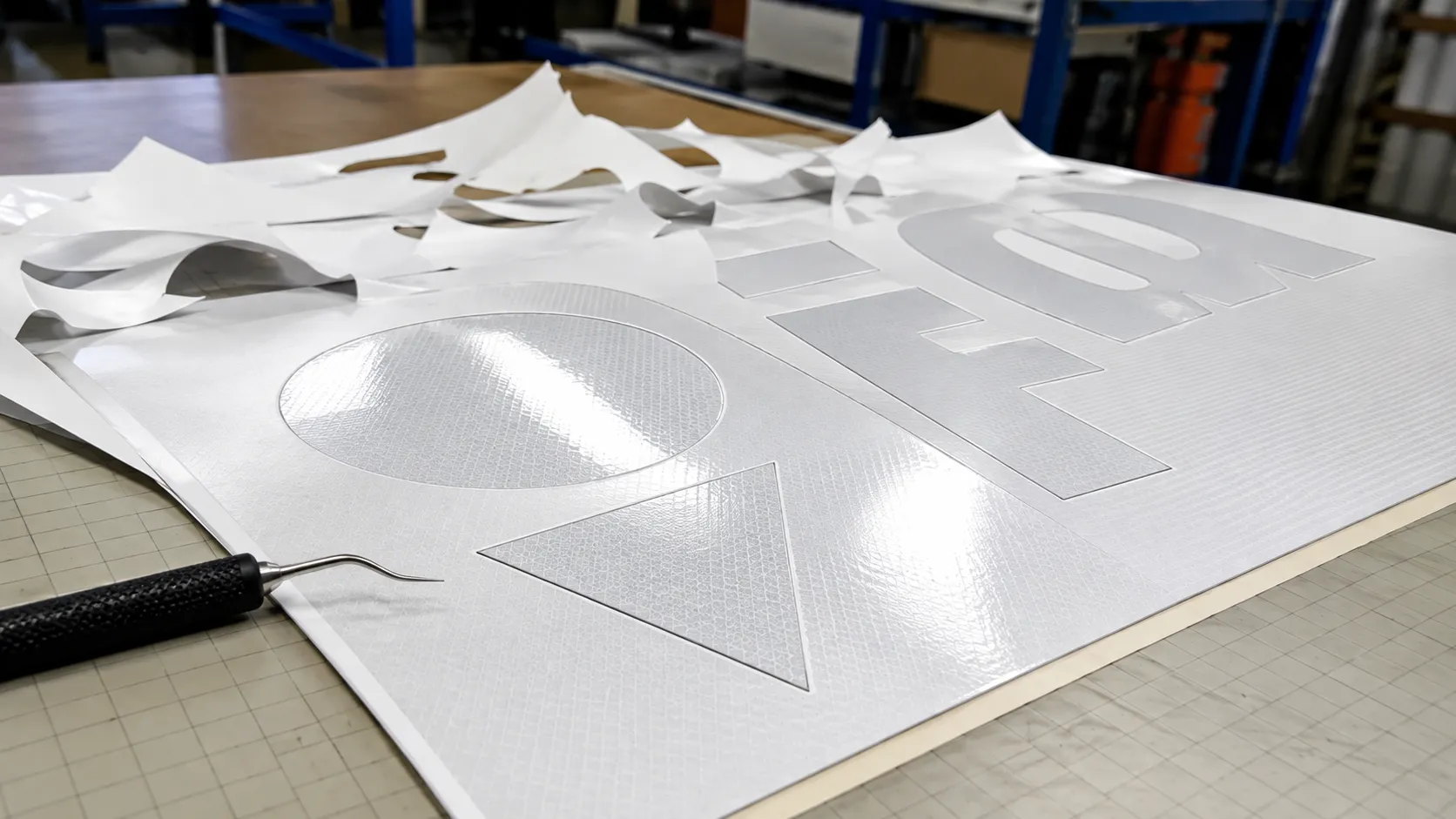

11. How to Weed Reflective Sheeting

After cutting, remove the unwanted material carefully.

Start from one corner and pull the waste material at a controlled angle.

Do not pull upward aggressively.

For detailed graphics:

• Weed slowly

• Keep the material close to the table

• Use a weeding tool for small centers

• Watch sharp corners

• Stop if letters begin lifting

If many letters lift with the waste, the problem may not be the weeding technique.

Check:

• Cutting force

• Blade sharpness

• Cut depth

• Design size

• Material temperature

Good plotter settings should make weeding relatively predictable.

12. Avoid Extremely Small Letters

Reflective sheeting is generally thicker than ordinary sign vinyl.

Very small letters, thin lines and complicated shapes are more difficult to:

• Cut

• Weed

• Transfer

• Apply

This becomes even more important with thicker engineering or prismatic materials.

If the customer supplies a complicated design, review it before production.

Consider increasing:

• Letter height

• Stroke width

• Spacing between objects

A design that looks good on a computer screen may not be practical to manufacture from reflective material.

For example, 3M's Series 3200 technical guidance includes minimum character dimensions for that specific product, illustrating why minimum detail size should be treated as a product-specific production parameter rather than assumed from ordinary vinyl.

13. Keep Material Orientation Consistent

This point is especially important for certain reflective constructions.

Reflective sheeting may appear slightly different when pieces are rotated in different directions.

For large multi-panel jobs, cut neighboring panels or letters in a consistent material orientation whenever possible.

Do not rotate random pieces simply to save a small amount of material without first checking appearance.

This is particularly important when producing:

• Large traffic signs

• Fleet graphics

• Multi-panel reflective graphics

• Large logos

• Directional sign systems

Material utilization matters, but visual consistency also matters.

Common Plotter Cutting Problems

Recommended Setup Process

Instead of searching for one universal cutter setting, use this process:

Step 1: Identify the Material

Confirm:

• PVC, PET or acrylic

• Glass bead or microprismatic

• Material thickness

• Release liner type

Step 2: Inspect the Blade

Use a clean, sharp blade suitable for the material and cutter.

Step 3: Start With Conservative Settings

Use the machine manufacturer's recommended starting point.

Step 4: Run a Test Cut

Check the shape and liner.

Step 5: Adjust Force

Increase or decrease gradually.

Step 6: Adjust Speed

Reduce speed when details and corners are not clean.

Step 7: Weed the Test

A cut is not successful until it also weeds correctly.

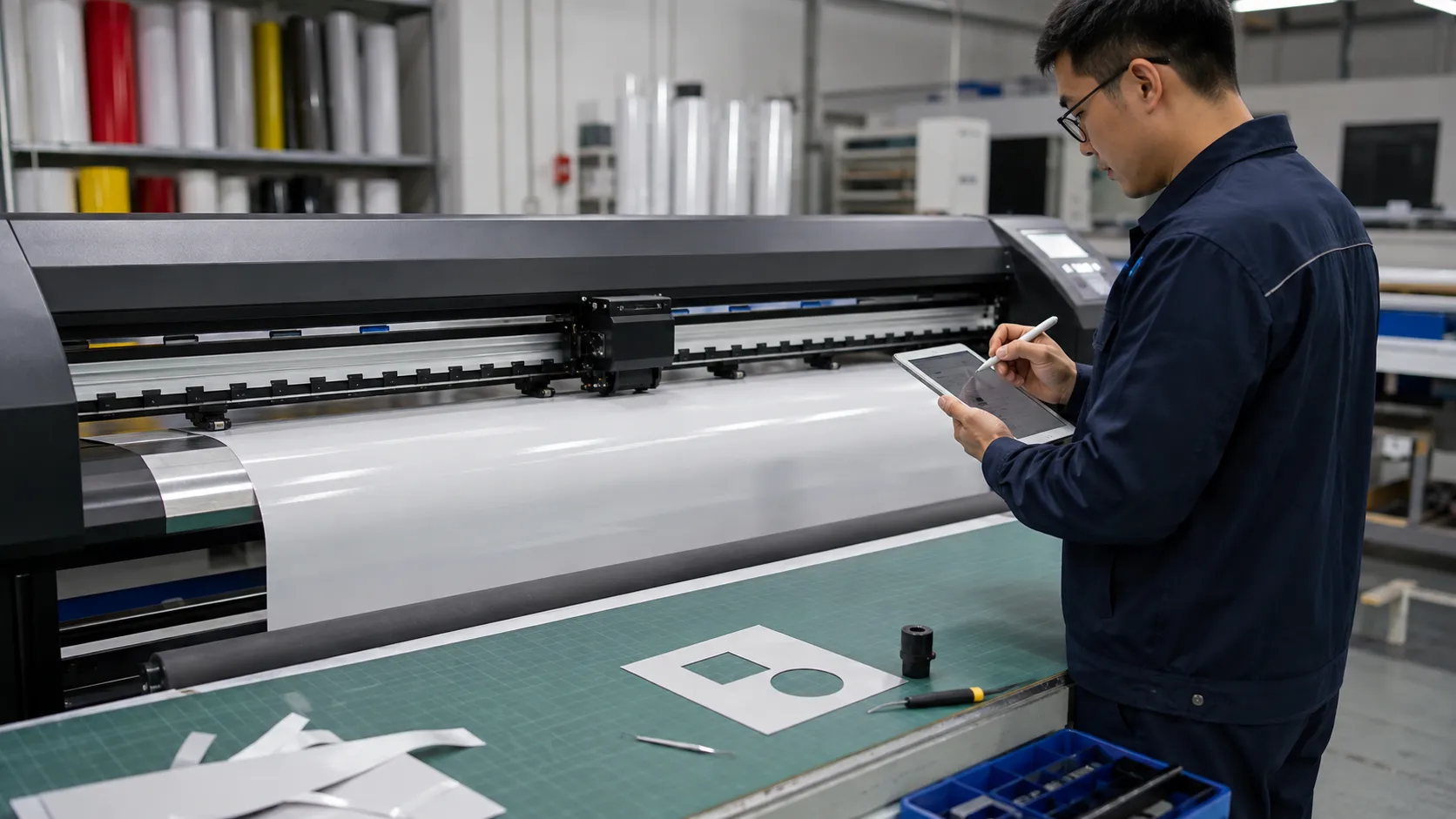

Step 8: Record the Settings

Record:

• Product code

• Batch

• Cutter model

• Blade type

• Blade angle

• Force

• Speed

• Offset

• Date

This makes repeat production much easier.

Production Checklist Before Cutting a Full Roll

Before pressing Start, check:

• Correct reflective sheeting grade

• Correct color

• Correct roll width

• Correct cutting file

• Correct material orientation

• Sharp blade

• Clean blade holder

• Correct pinch roller position

• Straight media feeding

• Test cut completed

• Test graphic weeds cleanly

• Release liner is not excessively cut

• Enough material is available for the complete job

A two-minute check can prevent wasting several meters of reflective sheeting.

Should Different Reflective Sheeting Materials Use the Same Settings?

Usually not.

Even two reflective products with the same thickness may require different settings because their:

• Face films

• Optical structures

• Adhesives

• Liners

• Hardness

• Surface coatings

can be different.

The cutter settings should therefore be recorded by product code, not simply as:

“Reflective vinyl setting.”

For example:

“PET Engineering Grade — Cutter A”

is much more useful than:

“All reflective materials — 300 g.”

The second method can easily create production problems.

When Should You Replace the Blade?

Consider replacing the blade when:

• Cutting force needs to be increased repeatedly

• Edges become rough

• Small corners stop cutting cleanly

• Weeding becomes harder

• Some areas remain uncut

• Cleaning the blade holder does not solve the problem

Reflective materials can be abrasive, so blade replacement may be required more frequently than when cutting ordinary signage vinyl.

Do not wait for complete blade failure.

The material wasted by a poor blade can cost more than the blade itself.

Buyer Checklist Before Bulk Production

If you are buying reflective sheeting specifically for plotter cutting, tell the supplier:

• Application

• Reflective grade

• Face material

• Required color

• Cutter brand and model

• Typical letter size

• Smallest design detail

• Roll width

• Roll length

• Quantity

• Final substrate

• Indoor or outdoor use

Request a sample before a large production run.

Cut the sample with your real:

• Cutter

• Blade

• Design

• Transfer tape

• Substrate

This gives much more useful information than asking only:

“Can this reflective film be cut?”

Frequently Asked Questions

Can a normal vinyl cutter cut reflective sheeting?

Many vinyl cutting plotters can cut compatible reflective sheeting.

However, reflective material is usually thicker and more abrasive than ordinary vinyl, so blade type, cutting force and speed may need adjustment.

What blade should I use for reflective vinyl?

A sharp 45-degree blade is a common starting point for many standard reflective vinyl products.

Thicker or prismatic materials may perform better with a 60-degree blade.

Always follow the cutter and material manufacturer's recommendations.

What cutting force should I use for reflective sheeting?

There is no universal force setting.

Force depends on the cutter, blade, material construction, liner and blade condition.

Start from a recommended baseline and perform a test cut.

Increase force only until the material cuts and weeds cleanly.

Should the blade cut into the backing paper?

For normal kiss cutting, the liner should not be deeply cut.

A very light blade trace or slight score may be acceptable for some materials, but excessive penetration can damage the liner and make production more difficult.

Why is my reflective vinyl difficult to weed?

Possible causes include:

• Insufficient cutting force

• Dull blade

• Cutting speed too high

• Blade extension incorrect

• Very small design details

• Material temperature

• Wrong blade type

Run a new test cut before changing several settings at the same time.

Why does my reflective material tear during cutting?

Check the blade first.

A dull blade can drag instead of cutting cleanly.

Also check excessive force, blade angle, speed and whether the material itself is suitable for very small shapes.

Can PET reflective sheeting be plotter cut?

Yes, many PET reflective sheeting products are suitable for plotter cutting.

Its dimensional stability can make it particularly useful for flat signs, cut letters and safety graphics.

The exact settings should still be tested for the specific product.

Can HIP reflective sheeting be plotter cut?

Many HIP products can be electronically cut, but they are thicker and structurally different from ordinary commercial vinyl.

Use the product manufacturer's cutting instructions and test blade, force and minimum design size before bulk production.

Final Thoughts

Plotter cutting reflective sheeting is not difficult when the setup is controlled.

The most important rules are simple:

• Use the correct material

• Keep the blade sharp

• Do not expose too much blade

• Start with controlled force

• Reduce speed for detailed designs

• Always perform a test cut

• Check weeding before bulk production

• Record successful settings for each product

Do not search for one universal setting for every reflective material.

A good cutting process matches the reflective sheeting, blade, cutter and design as one complete system.

If you are purchasing reflective sheeting for plotter-cut signs, lettering or safety graphics, send ABLAZE your application, material grade, cutter type, roll size, color and required quantity.

We can recommend a suitable reflective sheeting construction and provide samples for production testing before bulk ordering.
