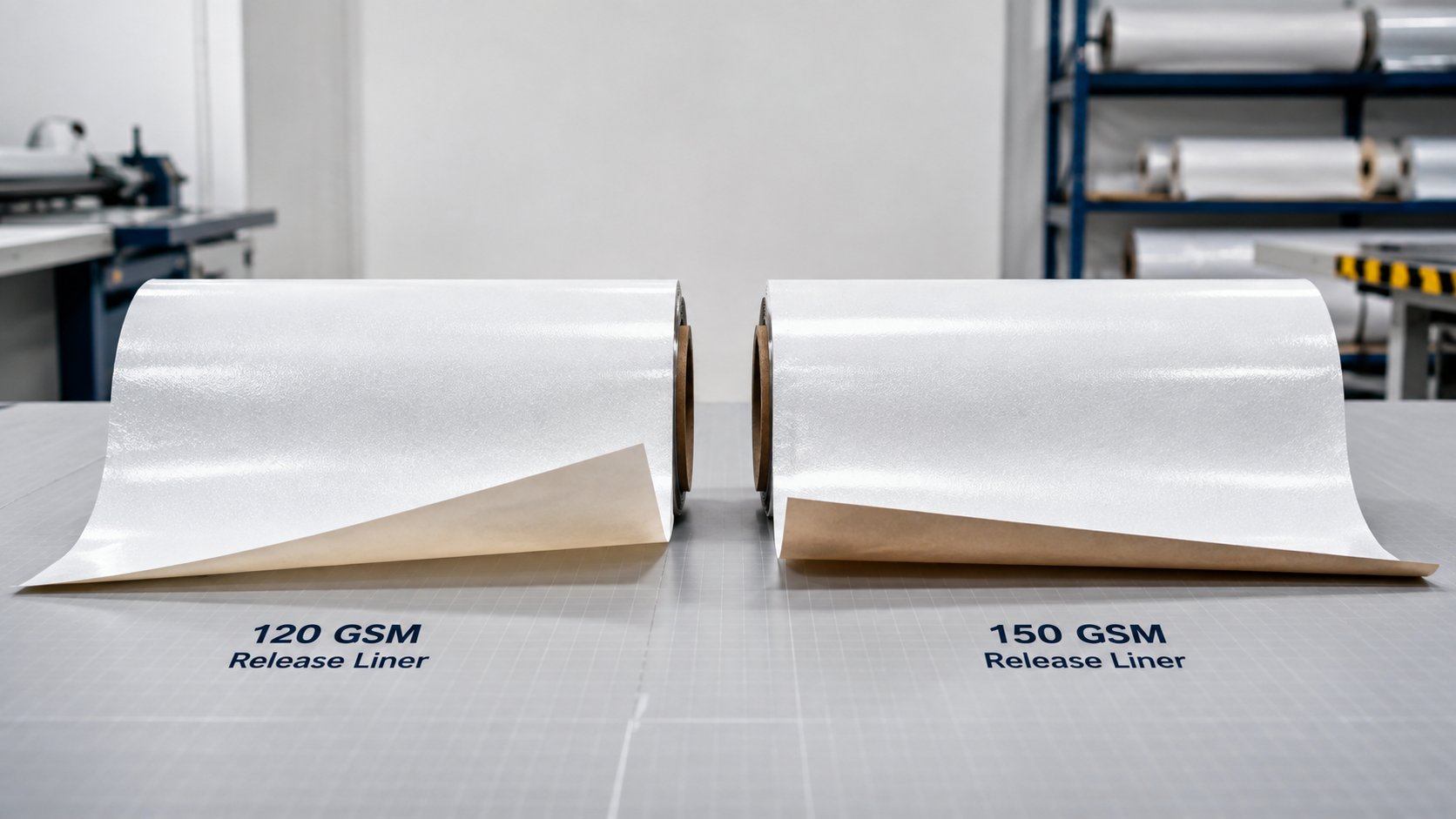

120 vs 150 GSM Release Liner for Reflective Sheeting

120 gsm and 150 gsm release liners should be selected according to cutting detail, layflat requirements, roll weight and production conditions.

The release liner is removed and discarded when reflective sheeting is applied, but before that moment, it performs several critical functions.

It protects the pressure-sensitive adhesive, supports the reflective film during printing and cutting, helps the roll unwind consistently and influences whether cut letters can be weeded and transferred efficiently.

For these reasons, choosing between a 120 gsm and 150 gsm release liner is not simply a matter of reducing paper cost or selecting the heaviest available backing.

The correct choice depends on the reflective film construction, cutting detail, converting equipment, environmental conditions, roll dimensions and application method.

ABLAZE is the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd. We manufacture reflective sheeting for commercial signage, screen printing, digital printing, plotter cutting, traffic signs, vehicle identification and OEM applications.

This guide explains how to compare 120 gsm and 150 gsm release liners and how to test their actual performance before placing a bulk order.

Quick Answer: Should You Choose 120 GSM or 150 GSM?

Choose a 120 gsm release liner when lower roll weight, competitive cost and general-purpose converting are the main priorities. A well-constructed 120 gsm liner can perform reliably for large graphics, simple lettering, commercial reflective decals and ordinary plotter-cutting work.

Choose a 150 gsm release liner when additional stiffness, handling stability and layflat support are important. It is generally the safer starting point for small letters, detailed cutting, repetitive weeding, sheet conversion and production environments where humidity or feeding stability may be a concern.

However, 150 gsm is not automatically better.

GSM measures basis weight, not liner thickness, release force, moisture resistance or cutting quality. A stable, well-coated 120 gsm liner can outperform a poorly controlled 150 gsm liner.

The final decision should therefore be based on a production trial, not GSM alone.

What Is a Release Liner for Reflective Sheeting?

A release liner is the temporary backing material attached to the adhesive side of self-adhesive reflective sheeting.

A typical reflective sheeting construction may include:

1. A printable or weather-resistant surface film

2. A glass-bead or microprismatic reflective structure

3. A bonding, sealing or reflective layer

4. A pressure-sensitive adhesive

5. A silicone-treated release liner

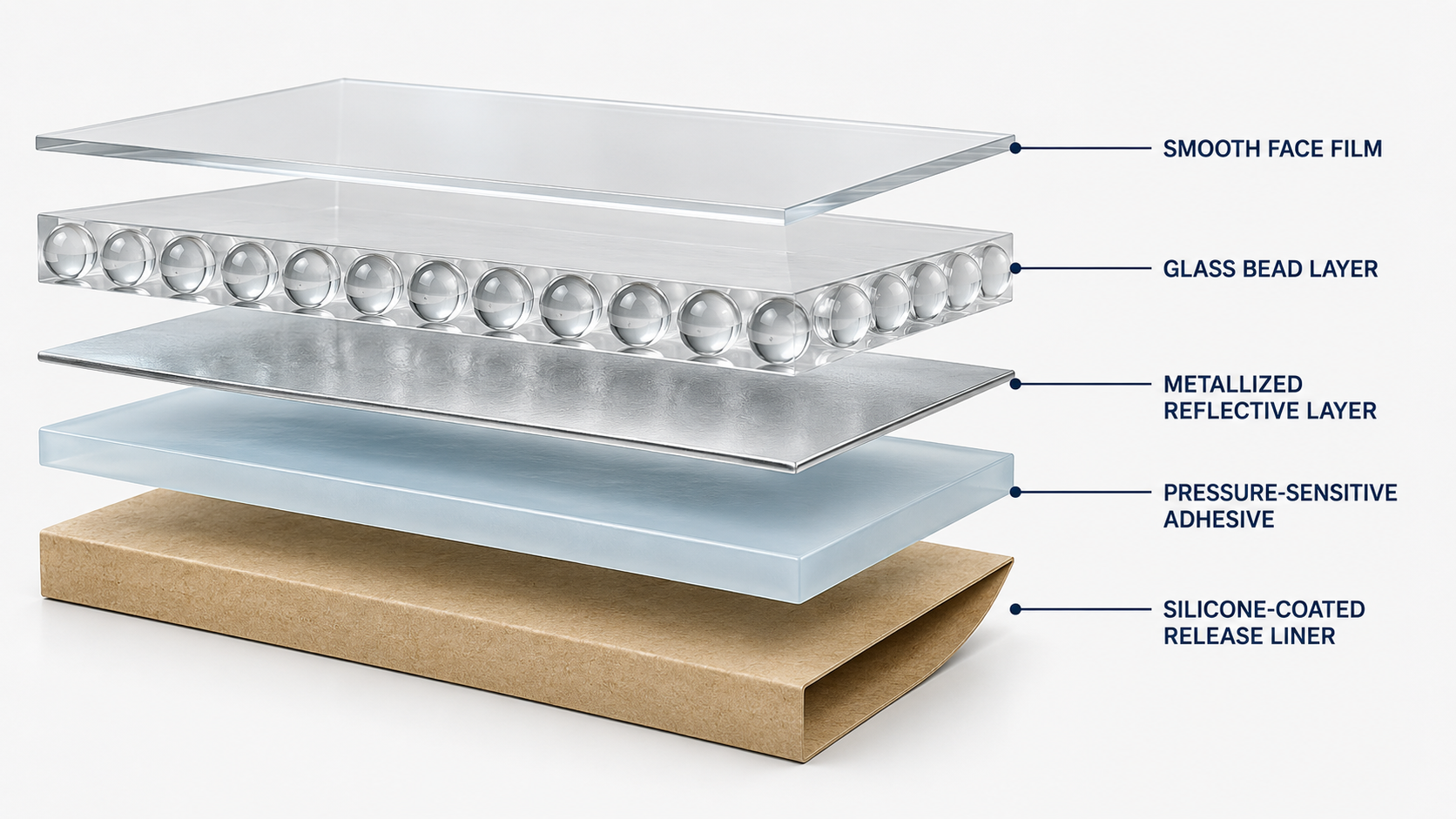

A typical glass-bead reflective sheeting construction includes a smooth face film, glass beads, a metallized reflective layer, pressure-sensitive adhesive and a silicone-coated release liner.

The liner prevents the adhesive from making unwanted contact during manufacturing, slitting, rewinding, storage, printing, cutting and transportation.

It also serves as the carrier that supports the reflective film until the finished graphic is transferred to a sign panel, vehicle surface or other substrate.

For a complete explanation of all product layers and specifications, see our guide to reading a reflective sheeting technical data sheet.

What Does the Release Liner Actually Control?

The release liner can influence:

• Roll winding and unwinding

• Sheet flatness

• Moisture-related curling

• Printer feeding

• Pinch-roller tracking

• Plotter-cutting accuracy

• Kiss-cut consistency

• Weeding efficiency

• Transfer of small letters

• Protection of the adhesive

• Manual handling during installation

• Finished roll weight

• Freight and handling costs

The liner does not directly create retroreflection, but poor liner performance can make an otherwise acceptable reflective film difficult or expensive to process.

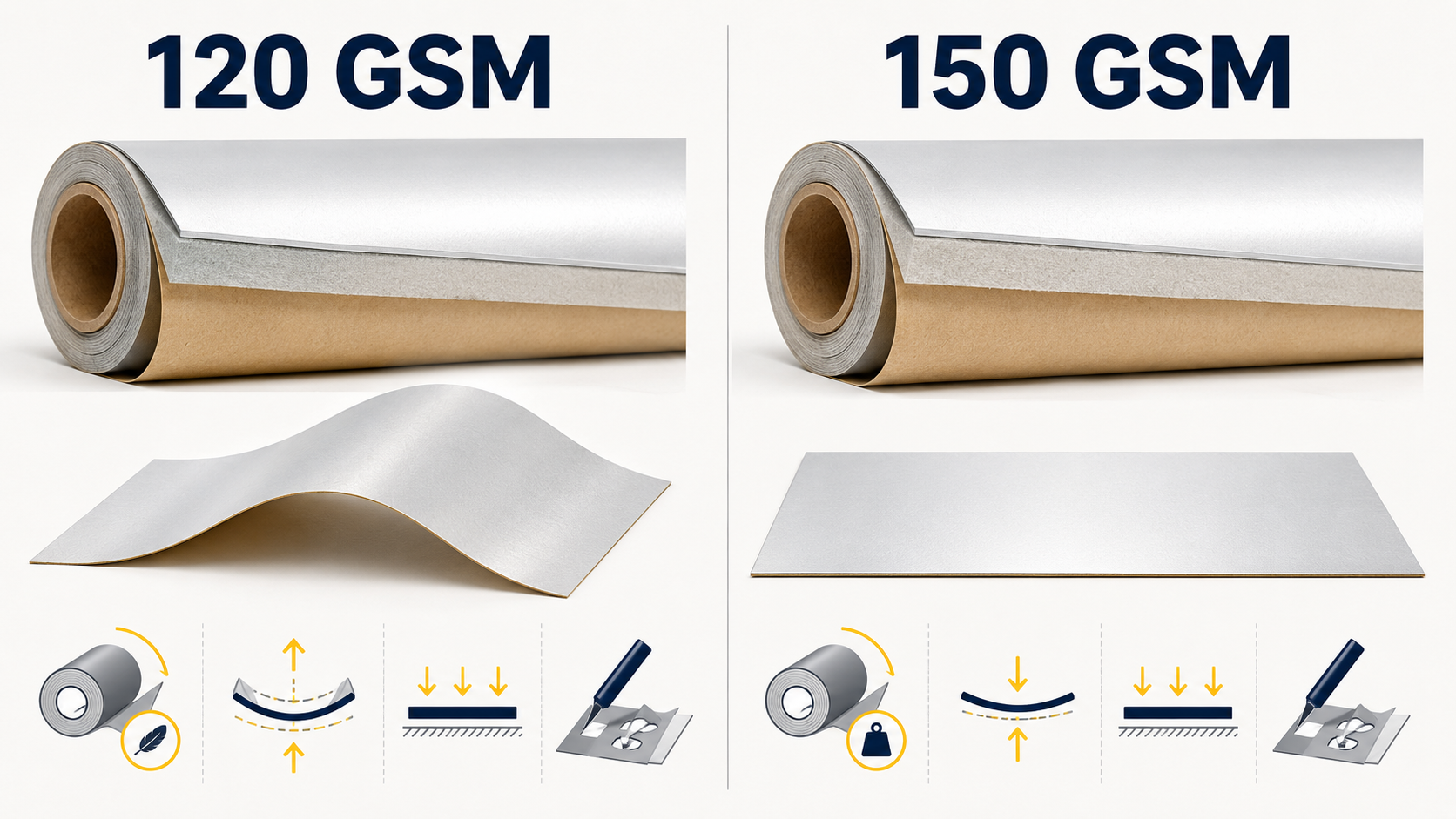

120 GSM vs 150 GSM Release Liner Comparison

The following table provides a practical comparison. It assumes that the two liners use similar paper quality, surface coating and manufacturing control.

These are general tendencies rather than guaranteed properties. Two liners with the same GSM may perform differently because of their density, thickness, moisture content, PE coating, stiffness and release treatment.

A 120 gsm liner reduces roll weight, while a comparable 150 gsm liner generally provides greater stiffness and layflat support.

Does Higher GSM Mean a Thicker or Better Release Liner?

Not necessarily.

GSM means grams per square metre. It describes the mass of the liner over a defined area.

It does not directly state:

• Thickness

• Caliper tolerance

• Paper density

• Bending stiffness

• Tensile strength

• Tear resistance

• Moisture resistance

• Silicone coverage

• Release force

• Surface smoothness

• Dimensional stability

For example, two 150 gsm liners can have different thicknesses if one uses denser paper or a different PE-coating construction.

Similarly, a well-manufactured 120 gsm poly-coated liner may remain flatter than an untreated or poorly balanced 150 gsm paper liner in a humid production environment.

GSM Is Not Microns

A 150 gsm liner does not mean that the liner is 150 microns thick.

GSM is a weight measurement, while microns measure thickness. Converting one directly into the other requires information about material density and coating construction.

When cutting accuracy is important, request both:

• Finished liner basis weight in gsm

• Finished liner thickness or caliper, including tolerance

The supplier should also clarify whether the stated GSM refers to the base paper or the complete coated liner.

Higher GSM Does Not Improve Retroreflectivity

Increasing the release-liner weight does not directly increase:

• Coefficient of retroreflection

• Outdoor durability

• Ink adhesion

• Adhesive peel strength

• Daytime color

• Weather resistance

These properties are controlled mainly by the reflective construction, surface film, adhesive, manufacturing process and application conditions.

A heavier liner can help protect and process the product, but it does not turn commercial reflective sheeting into engineering-grade or regulatory-grade material.

If you are still choosing the face-film construction, read our comparison of PET vs PVC vs acrylic reflective sheeting.

How the Release Liner Affects Layflatness

Layflatness describes the ability of reflective sheeting to remain reasonably flat after it is unwound from a roll or converted into sheets.

Poor layflatness may appear as:

• Raised corners

• Edge wave

• Machine-direction curl

• Cross-direction curl

• Cockling

• Tunnelling between layers

• Irregular feeding through a printer

• Material lifting around pinch rollers

• Difficulty positioning the sheet on a sign panel

A heavier liner can provide more resistance against the natural curling force of the reflective film. However, basis weight is only one part of the system.

Moisture Is a Major Cause of Liner Curl

Paper naturally exchanges moisture with the surrounding air.

When the two sides of a paper liner absorb or release moisture at different rates, the paper can expand unevenly and begin to curl. High humidity, rapid environmental changes or leaving a roll unprotected can make this problem more visible.

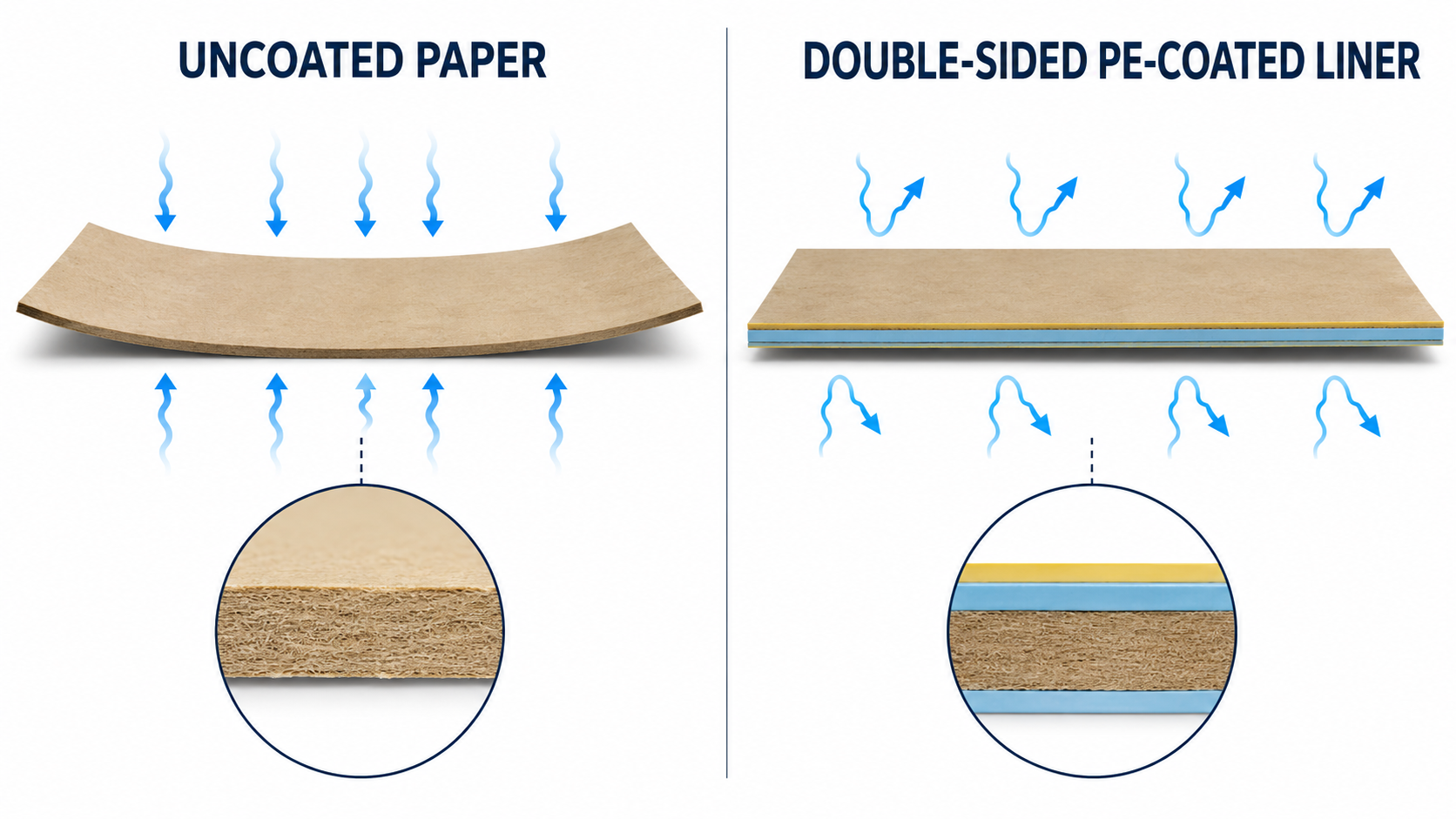

PE-coated paper can improve moisture resistance by creating a barrier between the paper fibres and the surrounding air.

Double-sided PE-coated constructions generally provide better moisture balance than uncoated paper, but the complete liner must still be qualified for the intended adhesive, temperature and printing process.

PE coatings reduce moisture exchange between the paper fibres and surrounding air, helping improve dimensional stability.

Liner Weight Is Not the Only Layflat Factor

Layflatness can also be affected by:

• Base-paper quality

• Paper-fibre orientation

• PE-coating balance

• Moisture content

• Silicone-coating uniformity

• Reflective film stiffness

• Adhesive coat weight

• Roll winding tension

• Core diameter

• Storage orientation

• Time stored in roll form

• Printer heater temperature

• Sudden temperature or humidity changes

This is why changing from 120 gsm to 150 gsm may improve flatness but may not solve a problem caused by poor winding, unbalanced coating or unsuitable storage.

Why Layflatness Matters During Printing

If reflective media curls upward inside a printer, the raised area may:

• Contact the printhead

• Cause ink smearing

• Create head strikes

• Produce uneven print-to-cut registration

• Move away from the platen or vacuum system

• Feed inaccurately through pinch rollers

A stable liner is particularly valuable when printing thin or flexible reflective film because the liner acts as the primary dimensional support during the printing cycle.

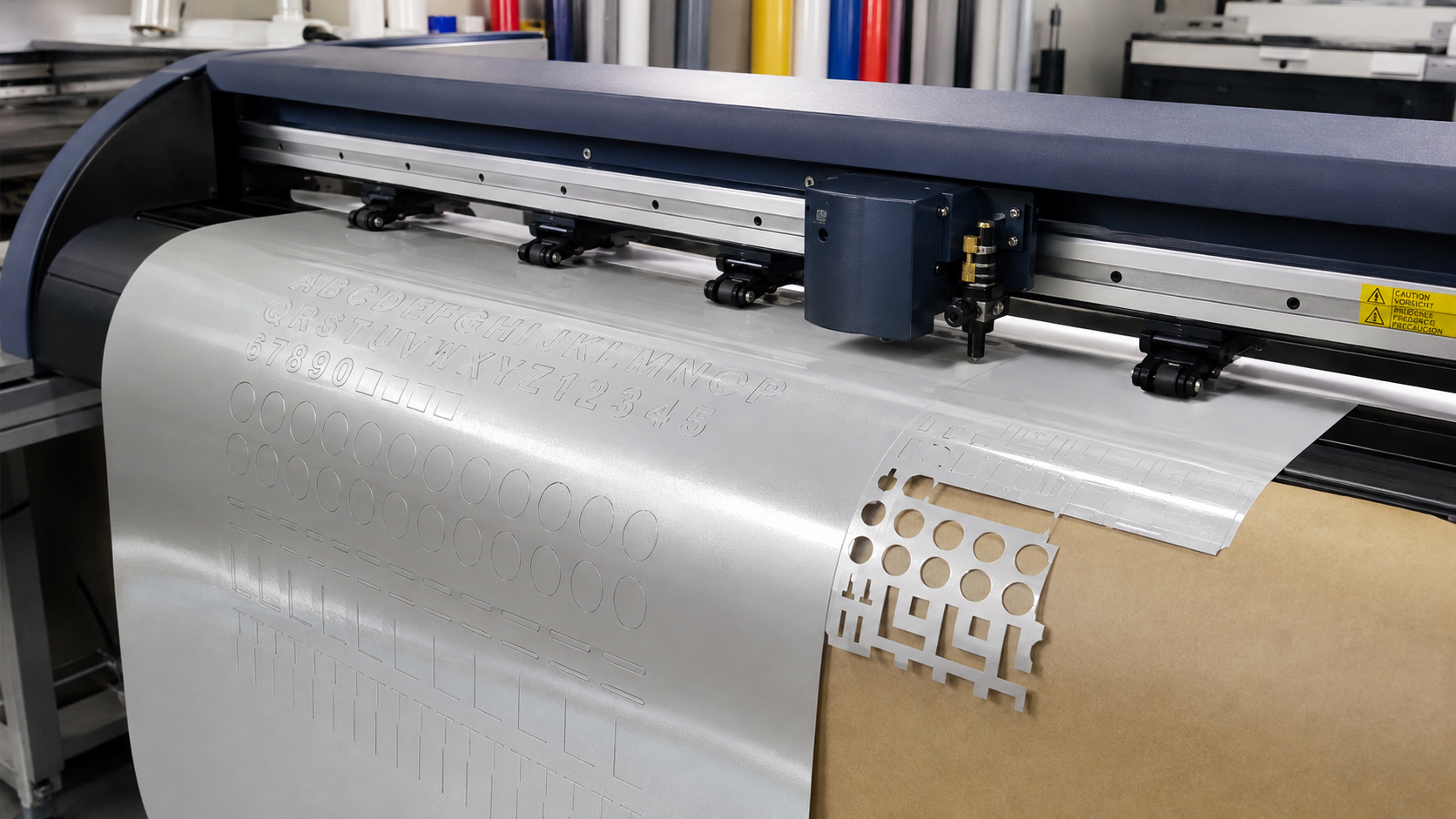

How the Release Liner Affects Plotter Cutting and Die Cutting

Reflective sheeting is generally thicker and more complex than ordinary colored sign vinyl. The cutting system must cut through the reflective face and adhesive while leaving the release liner sufficiently intact.

This is known as kiss cutting.

A suitable release liner provides a controlled cutting base, supports small graphics and keeps the material stable during feeding and weeding.

A stable liner helps reflective sheeting track accurately during repeated forward-and-back movement through a cutting plotter.

Material Tracking

During roll-fed plotter cutting, pinch rollers repeatedly move the material forward and backward.

If the liner is too soft, curled or dimensionally unstable, the material may:

• Track sideways

• Form waves between rollers

• Lose print-to-cut registration

• Produce distorted long graphics

• Shift during repeated feeding

A 150 gsm liner often provides better handling stability for long cutting runs, but the paper surface, stiffness and winding quality remain important.

Kiss-Cut Consistency

The blade should cut the reflective sheeting and adhesive without cutting completely through the liner.

If the cut is too shallow:

• Letters remain connected

• Corners do not release

• Adhesive stretches during weeding

• Operators must manually recut sections

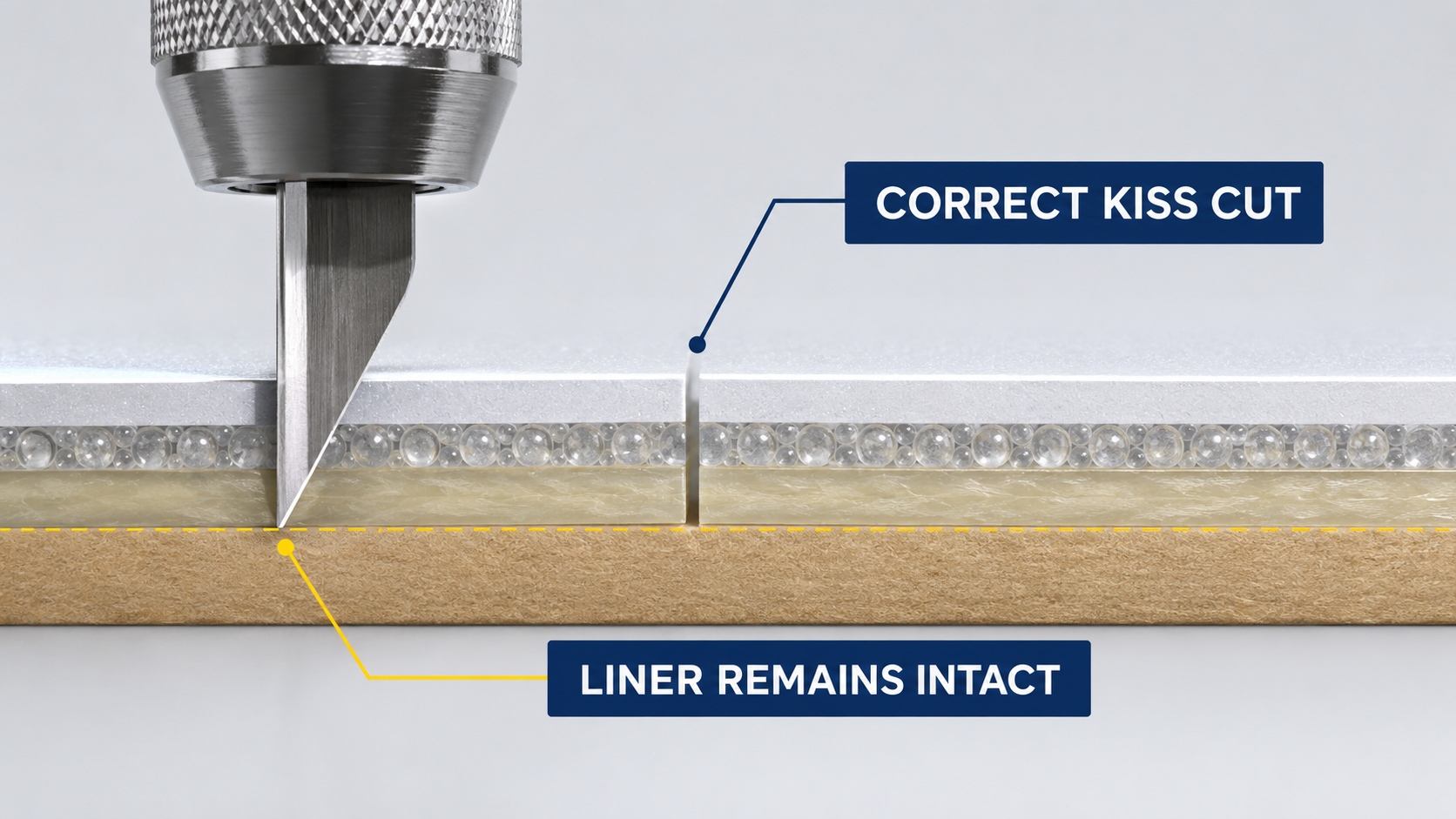

A correct kiss cut passes through the reflective construction and adhesive without cutting through or seriously damaging the release liner.

If the cut is too deep:

• The release liner becomes weak

• Small graphics can separate prematurely

• The backing may tear during transfer

• Adhesive may contact machine components

• Cutting mats and blades wear more quickly

A heavier liner may provide a larger practical safety margin in some plotter applications, but this should not be assumed. Caliper consistency is often more important than nominal GSM.

Why a Thicker Liner Is Not Always Easier to Die Cut

A heavier natural paper liner may have greater thickness variation across the web.

When the die or blade must cut to a precise depth, variation in liner caliper can produce an uneven cutting result. One area may be cut correctly while another is cut too deeply or not deeply enough.

High-speed rotary die cutting therefore requires more information than liner GSM.

The converter should confirm:

• Actual liner caliper

• Caliper tolerance

• Paper density

• Die height

• Cutting pressure

• Required liner impression

• Machine speed

• Automatic or manual application method

For critical die-cutting jobs, test the actual reflective sheeting construction rather than sending the die supplier only a stated paper weight.

Weeding and Small-Letter Stability

During weeding, the unwanted reflective film is removed while the required letters, numbers or symbols remain on the liner.

A stable liner helps prevent:

• Small letters moving out of position

• Corners lifting

• Thin strokes curling

• The backing folding during waste removal

• Adhesive contacting adjacent graphics

• Loss of registration in multi-color layouts

For detailed designs, a 150 gsm liner is often the better starting point when all other construction factors are comparable.

For more machine-specific guidance, read How to Cut Reflective Sheeting With a Plotter.

When Should You Choose a 120 GSM Release Liner?

A 120 gsm release liner may be appropriate when:

• The graphics are relatively large and simple

• Extremely small letters are not required

• Cutting runs are short or moderate

• The production environment has controlled humidity

• The reflective face film already has good dimensional stability

• Lower roll weight is important

• Workers frequently handle rolls manually

• Freight cost is a major consideration

• The product serves cost-sensitive commercial signage

• The customer has already approved the liner through production testing

Common applications may include:

• Commercial reflective decals

• Large plotter-cut letters

• Advertising boards

• Temporary warning signs

• Promotional reflective graphics

• General-purpose reflective labels

• Short- or medium-term signage

A good 120 gsm liner should not be described as a low-quality liner simply because it is lighter. Its suitability depends on the complete construction and production process.

When Should You Choose a 150 GSM Release Liner?

A 150 gsm release liner is generally worth evaluating when:

• The design contains small letters or thin strokes

• Stable weeding is a priority

• The material will be converted into sheets

• Long graphics require accurate plotter tracking

• The production process includes repeated forward-and-back feeding

• Operators require additional handling stiffness

• The finished sheet must remain flat during positioning

• The market expects a more substantial backing paper

• Humidity-related curl has previously caused problems

• Cutting waste costs more than the additional liner weight

Typical applications may include:

• Detailed plotter-cut graphics

• Multi-color reflective lettering

• Safety labels with small text

• Sheet-fed screen-printing work

• Flat aluminum sign production

• Industrial identification signs

• Traffic-sign symbols and lettering

• OEM products requiring stable manual handling

A 150 gsm liner is not a substitute for correct storage or machine calibration. It should still be tested with the actual blade, cutting force, speed and production environment.

How to Choose the Release Liner by Application

This table provides a starting point rather than a universal specification.

Reflective film type, adhesive, cutting equipment, design size and local climate must also be considered.

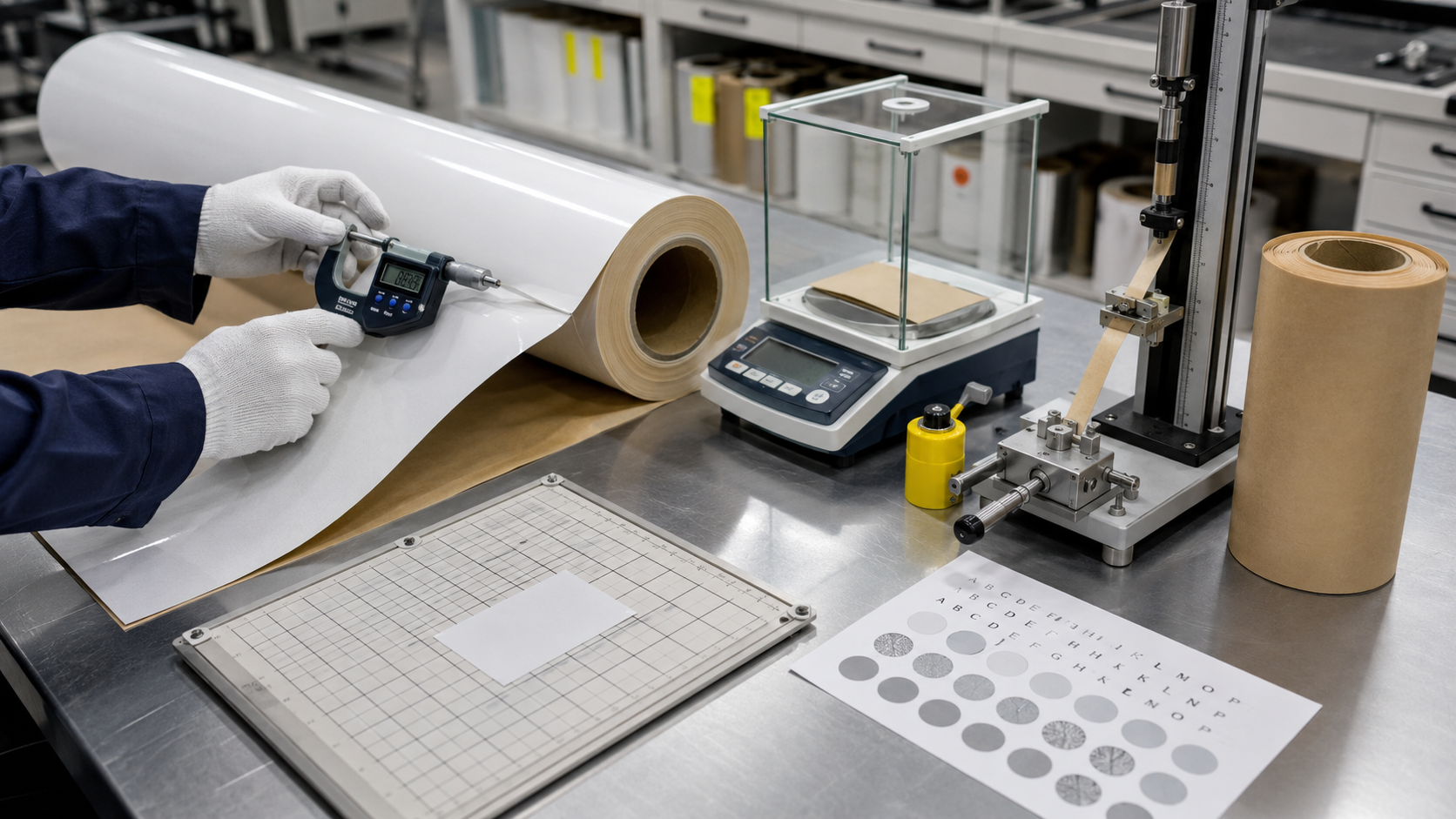

How to Test a Release Liner Before a Bulk Order

A visual inspection of an unopened roll is not enough.

The sample should be tested using the actual production process planned for the bulk material.

Release-liner approval should include basis weight, caliper, flatness, release force and actual cutting-performance tests.

1. Condition the Sample

Place the reflective sheeting in the intended production environment before testing.

Avoid testing a cold roll immediately after transportation into a warm, humid workshop. Sudden environmental changes can create temporary curl or condensation that does not represent normal production performance.

2. Perform a Comparative Layflat Test

For an internal comparison:

1. Cut equal-size sheets from the 120 gsm and 150 gsm samples.

2. Place them liner-side down on a clean, level table.

3. Do not tape or weigh down the corners.

4. Observe the sheets immediately and again after 5, 30 and 60 minutes.

5. Record corner lift, edge wave, cross-direction curl and machine-direction curl.

6. Repeat after the material has passed through the actual printer or heating cycle.

This is a practical comparative test rather than a formal international test method. Use the same sample dimensions and environmental conditions for both materials.

3. Run a Long-Feed Tracking Test

Load the material into the intended plotter or printer-cutter and feed several metres forward and backward.

Check for:

• Sideways tracking

• Edge wave

• Material buckling

• Pinch-roller marks

• Registration movement

• Uneven tension

• Premature liner separation

A short square test cannot reveal all long-feed problems.

4. Test More Than One Graphic Shape

Include:

• Large letters

• Small letters

• Thin lines

• Sharp corners

• Circles

• Long straight lines

• Detailed symbols

• Printed registration marks, if applicable

The liner that performs well with a 100 mm letter may not support a 10 mm character equally well.

5. Find the Minimum Effective Cutting Force

Use a sharp, suitable blade and begin with a conservative cutting force.

Increase the force gradually until the reflective face and adhesive weed cleanly.

The correct setting is the minimum force that produces a clean and repeatable cut without unnecessarily damaging the release liner.

Do not approve the material based on one successful test cut. Repeat the test across different parts of the sample.

6. Inspect the Liner After Cutting

After weeding, examine the liner from both sides.

Look for:

• Deep scoring

• Complete cut-through

• Tearing

• Paper-fibre contamination

• Silicone-surface damage

• Adhesive transfer

• Weak areas around small characters

A liner may appear intact from the front but have excessive blade penetration visible from the back.

7. Evaluate Weeding and Transfer

Record:

• Time required to weed a defined graphic

• Number of lifted letters

• Number of broken strokes

• Amount of manual recutting

• Backing-paper tears

• Graphic movement during transfer

• Adhesive remaining on the liner

Comparing only the purchase price ignores the labor and waste created during production.

8. Repeat the Test After Storage

If the material will be stored before use, keep part of the trial roll under realistic warehouse conditions and repeat the test later.

This can reveal changes in:

• Curl

• Release force

• Adhesive-liner interaction

• Roll blocking

• Edge wave

• Weeding behavior

Specifications to Check Beyond GSM

A professional release-liner specification should include more than “120 gsm paper” or “150 gsm paper.”

Base Material

Identify whether the liner is:

• Kraft paper

• Super-calendered kraft

• Clay-coated kraft

• Poly-coated kraft

• Glassine

• PET film

• PP film

• Another specialty construction

Different base materials can have different density, smoothness, strength and moisture sensitivity.

PE-Coating Construction

Ask whether the paper is:

• Uncoated

• PE-coated on one side

• PE-coated on both sides

PE coating can improve moisture resistance, dimensional stability and surface smoothness. However, temperature resistance and compatibility with the complete reflective construction must still be confirmed.

Finished Caliper and Tolerance

Request the actual liner thickness and its permitted variation.

Stable caliper is particularly important for kiss cutting and die cutting because the blade must leave the liner intact across the full web width.

Release Force

Release force describes how easily the reflective film separates from the liner.

If release force is too low, the film may separate prematurely during:

• Slitting

• Rewinding

• Printing

• Cutting

• Transportation

If release force is too high, operators may experience:

• Slow liner removal

• Distortion of thin graphics

• Lifted corners

• Difficult transfer

• Liner tearing

• Adhesive transfer

Release performance must be matched to the adhesive rather than selected independently.

For more information about pressure-sensitive adhesive systems, see our Reflective Sheeting Adhesive Guide.

Silicone-Coating Quality

The release surface should be uniform and sufficiently cured.

Poor silicone coverage may cause:

• Inconsistent peeling

• Adhesive sticking to the paper

• Paper fibres contaminating the adhesive

• High-release and low-release areas on the same roll

• Premature separation

• Changes in adhesive tack

A smooth visual appearance alone does not prove that the silicone treatment is uniform.

Strength and Tear Resistance

The liner must tolerate:

• Roll winding

• Slitting

• Printer feeding

• Plotter movement

• Weeding

• Manual removal

A liner that tears too easily can slow installation even if its GSM appears acceptable.

Color, Opacity and Back Printing

White and yellow release papers are commonly used. The backside may also contain:

• Manufacturer branding

• Product codes

• Grid lines

• Batch identification

• Application instructions

• Customer logos

For OEM orders, printing and liner color should be agreed before production because they can affect identification, branding and inspection.

How Liner Weight Affects Roll Weight and Freight Cost

The difference between 120 gsm and 150 gsm is 30 grams per square metre.

This means a 150 gsm liner contains approximately 25% more paper mass per square metre than a 120 gsm liner.

For common reflective sheeting roll sizes, the theoretical liner-weight difference is:

These figures represent theoretical basis-weight calculations for the liner only.

Actual values can vary because of:

• GSM tolerance

• PE-coating weight

• Silicone coating

• Moisture content

• Roll width and length tolerance

• Splices and trimming

• Packaging materials

The complete roll also includes the reflective film, optical structure, adhesive, core, protective materials and carton.

Does the Lighter Liner Always Reduce Total Cost?

Not always.

A 120 gsm liner can reduce material weight and freight contribution. However, the saving may disappear if the lighter construction causes:

• More cutting waste

• Slower weeding

• Printer stoppages

• Registration errors

• Damaged small letters

• Increased manual labor

• Customer complaints about curling

Buyers should compare cost per usable converted square metre, not only price per roll.

Reflective Sheeting Release Liner RFQ Checklist

When requesting a quotation, provide the supplier with the following information:

1. Reflective sheeting type and product code

2. Face material: PET, PVC, acrylic or another construction

3. Glass-bead or microprismatic technology

4. Required roll width and length

5. Intended printing method

6. Plotter or die-cutting equipment

7. Typical letter or graphic size

8. Kiss cutting or full cutting

9. Manual or automatic weeding

10. Sheet or roll delivery format

11. Preferred liner weight

12. Required liner thickness and tolerance

13. One-sided or two-sided PE coating

14. Liner color

15. Back-printing or grid requirements

16. Expected storage temperature and humidity

17. Final application surface

18. Required sample and production test

The purchase order should identify the approved liner version rather than stating only “standard release paper.”

If the liner is changed after sample approval, the cutting settings and converting performance should be reconfirmed.

ABLAZE Reflective Sheeting and OEM Release Liner Options

At Changzhou Zhenghe New Material Technology Co., Ltd., we treat the release liner as part of the reflective sheeting system rather than as disposable packaging.

The reflective face, adhesive and liner must work together throughout coating, slitting, printing, cutting, storage and final application.

Depending on the reflective sheeting series, production requirements and order quantity, the ABLAZE team can discuss options such as:

• Different release-liner weights

• Custom roll widths and lengths

• White or colored backing paper

• OEM logo or product-code printing

• Customized carton and product labels

• Adhesive and liner combinations matched to the intended application

For cost-sensitive commercial work, buyers can evaluate our Advertising Grade Reflective Sheeting.

For flat safety signs and longer-term sign applications, review our Engineering Grade Reflective Sheeting.

Before recommending 120 gsm or 150 gsm, please tell us:

• Your cutting-machine model

• Blade type

• Smallest letter size

• Printing method

• Workshop temperature and humidity

• Roll dimensions

• Application surface

• Current liner problem

This information allows our team to recommend a more appropriate sample for production testing.

Frequently Asked Questions

Is a 150 GSM release liner always better than 120 GSM?

No. A 150 gsm liner generally offers greater mass and may provide more stiffness and layflat support, but performance also depends on paper density, caliper consistency, PE coating, moisture resistance, silicone treatment and release force.

A high-quality 120 gsm liner can outperform a poorly manufactured 150 gsm liner.

Which release liner is better for plotter cutting reflective sheeting?

For large and simple graphics, both 120 gsm and 150 gsm liners may work well.

For small letters, detailed symbols, long-feed cutting and repetitive weeding, 150 gsm is often the safer starting point when the two liners otherwise have comparable construction.

Always confirm the choice using the actual reflective film, plotter and blade.

Can I change from 150 GSM to 120 GSM without changing cutter settings?

Do not assume that the same settings will work.

Changing the liner can alter total caliper, stiffness, tracking and the practical cutting-force window. Run new test cuts and recalibrate force, speed, blade exposure and offset before production.

Does a 150 GSM liner improve reflective brightness?

No. Release-liner weight does not directly improve the coefficient of retroreflection.

Brightness depends on the reflective optical structure, material color, observation angle, entrance angle and product condition.

Why does reflective sheeting curl after it is removed from the roll?

Possible causes include:

• Moisture imbalance

• Unbalanced PE coating

• Roll winding tension

• Long storage in roll form

• Sudden temperature change

• Printer heating

• Film and liner stiffness mismatch

• Poor storage conditions

Changing the liner weight may help, but the complete construction and storage process should be investigated.

Why is the cutter going through the release paper?

Possible causes include:

• Excessive cutting force

• Too much blade exposure

• Incorrect blade angle

• A worn or damaged blade

• Uneven cutting strip

• Inconsistent liner caliper

• Excessively high cutting speed

• Incorrect machine settings for the reflective film

Use the minimum force that produces a clean, repeatable kiss cut.

Is 120 GSM release paper suitable for small letters?

It may be suitable if the paper has good stiffness, stable caliper and consistent release properties.

However, for very small letters or thin strokes, compare it directly with a 150 gsm version and evaluate letter lifting, liner damage and weeding time.

Does PE-coated paper eliminate humidity problems?

It can reduce moisture absorption and improve dimensional stability, but it does not eliminate every humidity-related problem.

Coating balance, exposed roll edges, storage conditions, temperature changes and the reflective film construction can still affect curl.

What information should appear on a reflective sheeting TDS?

The TDS should identify the liner material, basis weight, thickness or caliper, surface coating, color and other relevant processing information.

For critical cutting applications, also request the applicable tolerance and release-performance data.

Final Recommendation

Do not select reflective sheeting release paper by GSM alone.

Choose 120 gsm when lower roll weight and commercial efficiency are important and production testing confirms acceptable flatness, cutting and weeding.

Choose 150 gsm when additional handling stiffness, layflat support and cutting stability provide measurable value, especially for detailed graphics, sheet conversion and repetitive production.

Most importantly, compare the complete liner system:

• Basis weight

• Caliper and tolerance

• Stiffness

• Moisture stability

• PE coating

• Release force

• Silicone consistency

• Winding quality

• Performance on your actual equipment

A slightly less expensive roll is not economical if it increases cutting waste, labor time or customer complaints.

To discuss the most suitable ABLAZE reflective sheeting and release-liner construction for your equipment, contact Changzhou Zhenghe New Material Technology Co., Ltd. and request a production-testing sample.
