How to Measure Traffic Sign Retroreflectivity in the Field: ASTM E1709 and Replacement Decisions ?

Quick answer: Use a portable sign retroreflectometer with the specified measurement geometry, take multiple readings from each retroreflective color, and compare the results with the applicable minimum maintained retroreflectivity levels. For U.S. traffic signs, the key reference is Section 2A.22 and Table 2A-5 of the current MUTCD. A measurement close to the minimum deserves prompt review; a sign can also need replacement because it is faded, damaged, obscured, or illegible even when its retroreflectivity reading is acceptable.

What does traffic sign retroreflectivity measure?

Retroreflectivity describes how effectively a sign returns light toward its source. At night, that source is usually a vehicle’s headlights. The coefficient of retroreflection, Rₐ, is commonly reported in cd/lx/m².

A higher reading generally indicates stronger light return under the specified test conditions. It does not, by itself, guarantee that a driver can see and read the sign in every setting. Placement, orientation, glare, background complexity, dirt, damage, and the sign’s daytime condition also matter. The FHWA’s field assessment guidance treats measured retroreflectivity as one part of a sign maintenance decision.

Three references serve different purposes:

• ASTM E1709 describes field measurement of a vertical retroreflective sign with a portable contact retroreflectometer at a 0.2° observation angle.

• MUTCD Section 2A.22 and Table 2A-5 set the U.S. maintenance framework and minimum values used to assess signs in service.

• ASTM D4956 concerns the properties of new retroreflective sheeting. A sheeting grade name or a new-material data sheet does not replace an inspection of the finished sign in the field.

The currently listed ASTM edition is ASTM E1709-16(2022). Confirm the edition required by your agency, contract, or jurisdiction before testing.

What equipment and information do you need before testing?

Bring a calibrated portable retroreflectometer suitable for sign measurement, its reference standard, a sign inventory or inspection form, and the manufacturer’s operating instructions. Record the instrument model, calibration check, date, operator, and measurement geometry.

Identify the sign before taking readings:

1. Record its location, sign type, size, mounting position, and asset ID.

2. Identify every retroreflective color that must be evaluated.

3. Note the sheeting type if it is known. If it is unknown, record that fact rather than guessing from its appearance.

4. Inspect the sign for dirt, fading, cracks, peeling, graffiti, bent panels, blocked sightlines, and poor orientation.

5. Arrange safe access and traffic control appropriate to the location, especially for signs beside live traffic or mounted overhead.

A phone flashlight or photograph can help reveal obvious dark areas, but it cannot provide an ASTM E1709 Rₐ reading. For background on the material itself, see the ABLAZE guide to how reflective sheeting works.

How do you measure a traffic sign in the field under ASTM E1709?

1. Check the instrument and measurement geometry

Follow the instrument manufacturer’s calibration procedure before testing and repeat checks at the intervals required by your inspection program. For comparisons with the MUTCD minimums, use readings at a 0.2° observation angle and −4° entrance angle. Values measured at different angles are not directly comparable with Table 2A-5.

Keep the instrument in its prescribed orientation. If several instruments are used across a program, record their models and procedures consistently. The FHWA notes that instrument design, calibration, and the selection of measurement points can affect results.

2. Inspect and document the sign as found

Record visible dirt or damage before cleaning. If contamination may be depressing the reading, measure and document the sign as found, clean it using an approved method, then measure again after the surface is dry. This separates a removable maintenance problem from deterioration of the sheeting.

Do not let a good average conceal a visibly failed part of the message. Record localized dark patches, damaged letters, or peeling areas separately for engineering review.

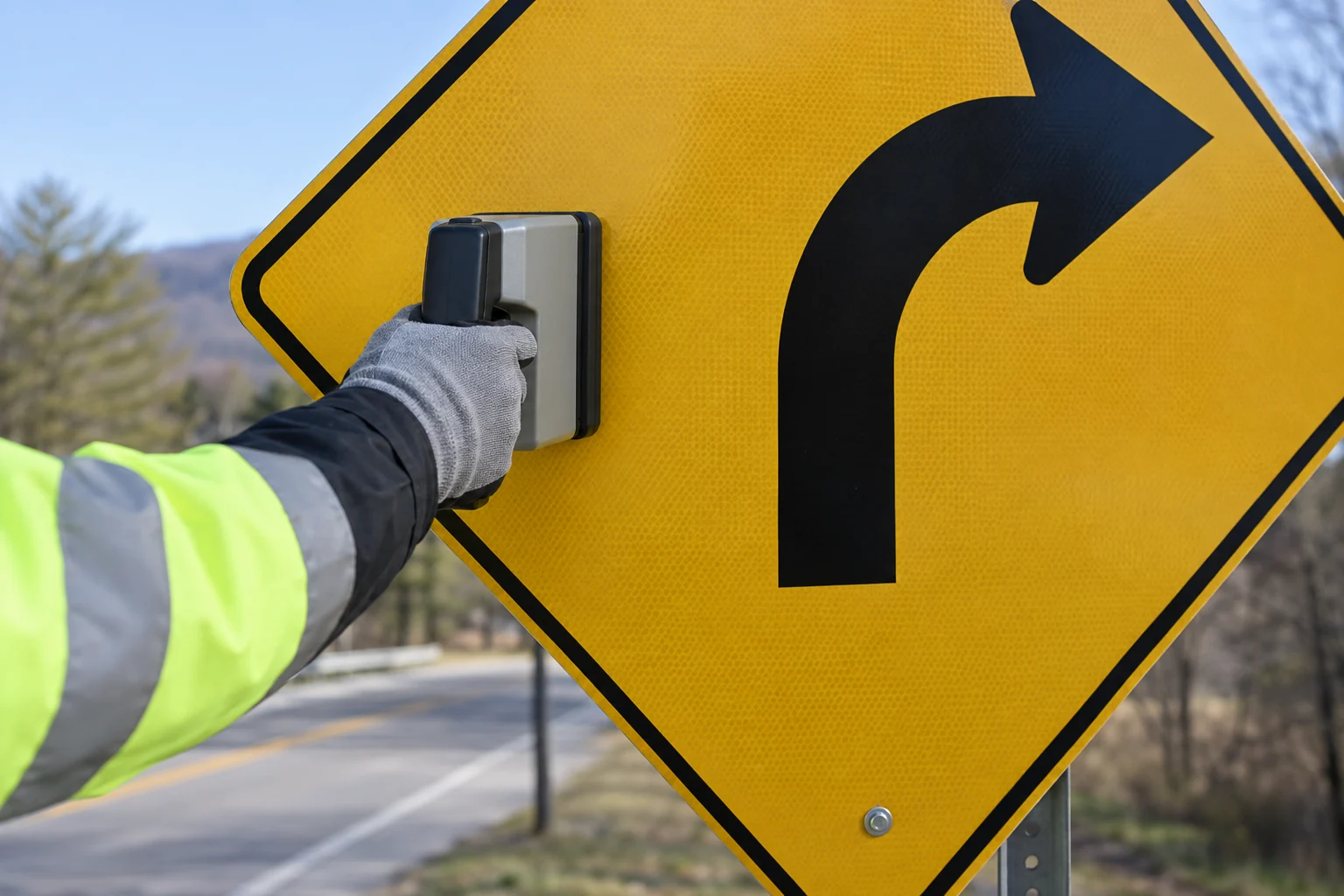

3. Take readings from each retroreflective color

Place the instrument fully against the color being tested, with only that color inside its measurement area. Avoid edges, fasteners, overlaps, and areas where another color enters the aperture.

Take readings at different representative locations. The FHWA’s assessment procedure describes at least four readings for each applicable retroreflective color, averaged separately. On a white-on-red STOP sign, for example, record white and red readings as two distinct sets. The black legend on a black-on-yellow warning sign is not a retroreflective color to measure.

4. Calculate and record each color’s result

Calculate the average for each measured color and retain the individual readings. If the readings vary substantially, inspect the sampled areas and repeat the measurement as needed. Variation may reveal uneven weathering, dirt, damage, or inconsistent placement of the instrument.

For white-on-red signs, also calculate the contrast ratio:

White Rₐ ÷ red Rₐ = sign contrast ratio

Keep the raw readings, averages, ratio, calibration record, photographs, and the resulting action in the sign inventory.

Which MUTCD retroreflectivity minimum applies?

The current MUTCD, 11th Edition with Revision 1, lists minimum maintained levels in Table 2A-5, measured at 0.2° observation and −4° entrance. The correct row depends on the sign’s colors, sheeting, mounting, size, and symbol type.

All values above are in cd/lx/m². This is a selection of common cases, not a substitute for the full table. For overhead signs, white-on-blue or white-on-brown signs, special warning signs, and sheeting-specific exceptions, check Table 2A-5 directly.

Worked example: a STOP sign. Suppose the average white reading is 35 and the average red reading is 12. Both colors meet their individual minimums, but the contrast ratio is 35 ÷ 12 = 2.92:1. Because Table 2A-5 also requires at least 3:1, this result does not meet all three criteria. If the white average were 42 with the same red average of 12, the ratio would be 3.5:1 and those three numerical criteria would be met.

This example shows why a single “brightness” figure is insufficient for a multicolor sign.

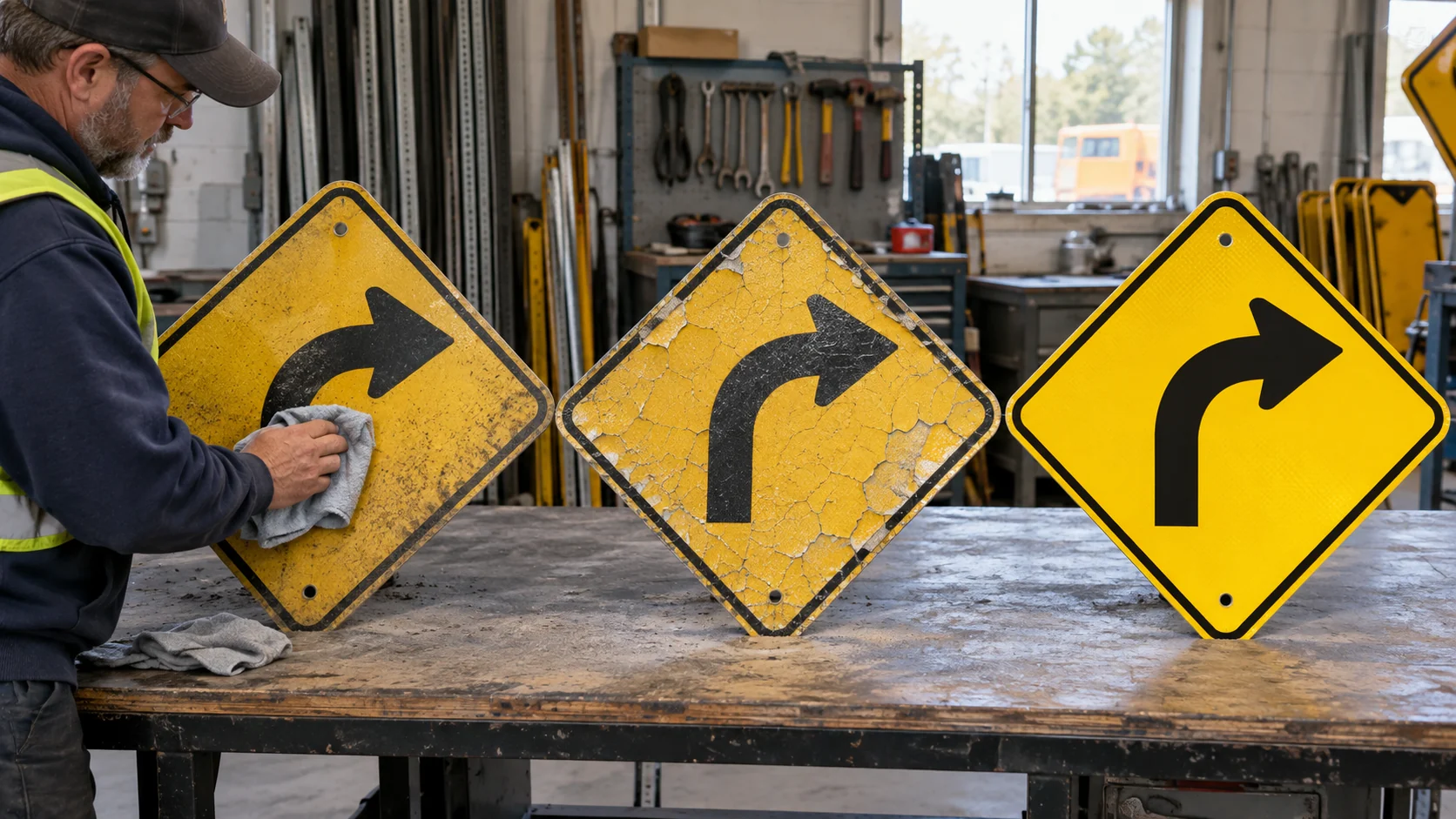

When should a traffic sign be cleaned, rechecked, or replaced?

Use the reading together with the sign’s physical condition and your agency’s maintenance method.

The MUTCD requires agencies to use an assessment or management method designed to maintain the minimum levels. It does not require every sign to be measured individually. Its guidance says signs identified by the agency’s method as below the minimum should be replaced. The FHWA also recommends scheduling replacement when a measured sign is at or very close to the minimum, allowing time to act before performance falls further. See MUTCD Section 2A.22 and the FHWA measured-sign assessment.

An inspection program may also use nighttime visual inspection, expected sign life, blanket replacement, control signs, or an appropriately supported combination of methods. The FHWA’s maintenance-method overview explains these options.

How should you specify sheeting for a replacement sign?

A field reading tells you how the existing sign is performing. A replacement purchase needs a separate material specification.

State the destination market, applicable standard, sign colors, mounting location, required sheeting performance, substrate, fabrication method, and documentation needed for acceptance. Request Rₐ data at the specified angles for each relevant color, along with color, durability, adhesive, and processing information. Do not assume that a product described as “engineering grade” or “high intensity” automatically corresponds to a particular ASTM D4956 type or meets a local project specification.

ABLAZE, the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd., supplies engineering-grade reflective sheeting and prismatic reflective sheeting for sign-making applications. The appropriate model should be selected against the project’s actual requirements and current product documentation. Before ordering, review how to read a reflective sheeting technical data sheet and how to test a sheeting sample before a bulk order.

If your team fabricates aluminum signs, the ABLAZE application guide for aluminum sign panels covers preparation and lamination checks. Finished-sign performance still needs to be verified against the applicable project criteria.

Field record checklist

For every tested sign, keep:

• Asset ID, location, sign type, size, mounting position, and inspection date

• Sign face condition and photographs

• Instrument model, calibration check, and measurement geometry

• Individual Rₐ readings and average for each retroreflective color

• White-to-red contrast ratio, where applicable

• Applicable MUTCD Table 2A-5 row or other local acceptance criterion

• As-found and after-cleaning results, if cleaning was performed

• Decision, priority, responsible person, and replacement or follow-up date

A consistent record makes later inspections comparable and gives procurement teams the details needed to order a suitable replacement.

Frequently asked questions

Can I measure a sign at night only?

A portable contact retroreflectometer provides a controlled reading at its specified geometry; nighttime darkness is not what defines the test. Follow the instrument instructions and your agency’s procedure. A separate nighttime visual inspection remains useful because it can reveal obstruction, glare, placement, and legibility issues that one instrument reading cannot describe.

Do I have to test every traffic sign with a retroreflectometer?

No. The MUTCD requires an assessment or management method designed to maintain minimum levels. Field measurement is one available assessment method and can also support expected-life or control-sign programs. See the FHWA maintenance-method guidance.

Is ASTM E1709 the same as ASTM D4956?

No. ASTM E1709 addresses measurement of retroreflective signs with a portable instrument. ASTM D4956 concerns requirements for retroreflective sheeting used in traffic control. An in-service sign’s field condition and a new roll’s material specification answer different questions.

Does a sign pass if its average Rₐ is above the minimum?

Not necessarily. Check each required color, any applicable contrast ratio, and the sign’s overall condition. A white-on-red sign can meet the two color minimums yet fail the required 3:1 contrast ratio.

What if the project is outside the United States?

ASTM E1709 and the MUTCD reflect U.S. measurement geometry and maintenance criteria. Confirm the destination country’s standard, contract specification, test angles, and replacement rules before applying the U.S. thresholds. For material selection, share those requirements with the ABLAZE road safety team or contact Changzhou Zhenghe.
