A converted reflective sheeting roll is acceptable only when more than its nominal width and length are correct.

The product identity, slit width, usable length, core inside diameter, core length, winding direction, edge quality, roll build, splice allowance, labeling, carton protection and pallet configuration must all match the buyer’s equipment and purchase specification.

This matters because reflective sheeting is a multilayer pressure-sensitive material. Its face film, optical layer, adhesive and release liner move together through the converting line. A roll can have good retroreflectivity and still create production waste if it telescopes, has sticky cut edges, is wound on the wrong core or does not fit the printer.

This guide explains how reflective sheeting rolls are slit, rewound, inspected and packed. It also gives buyers a practical specification checklist for custom-width and private-label orders.

ABLAZE is the reflective material brand of Changzhou Zhenghe New Material Technology Co., Ltd. We manufacture glass-bead and microprismatic reflective sheeting for commercial signage, traffic safety, printing, plotter cutting, vehicle identification and OEM applications.

Quick Answer: What Must Be Specified for a Converted Reflective Sheeting Roll?

At minimum, specify these items in the quotation and purchase order:

1. Exact product code, construction and color

2. Finished roll width and width tolerance

3. Usable roll length and length tolerance

4. Core inside diameter, core length and core material

5. Maximum finished-roll outside diameter or roll weight, if equipment-limited

6. Face-in or face-out winding and required unwind direction

7. Maximum number of splices and how each splice must be marked

8. Slit-edge acceptance criteria

9. Maximum permitted telescoping, dishing or core offset

10. Individual-roll label and lot-traceability requirements

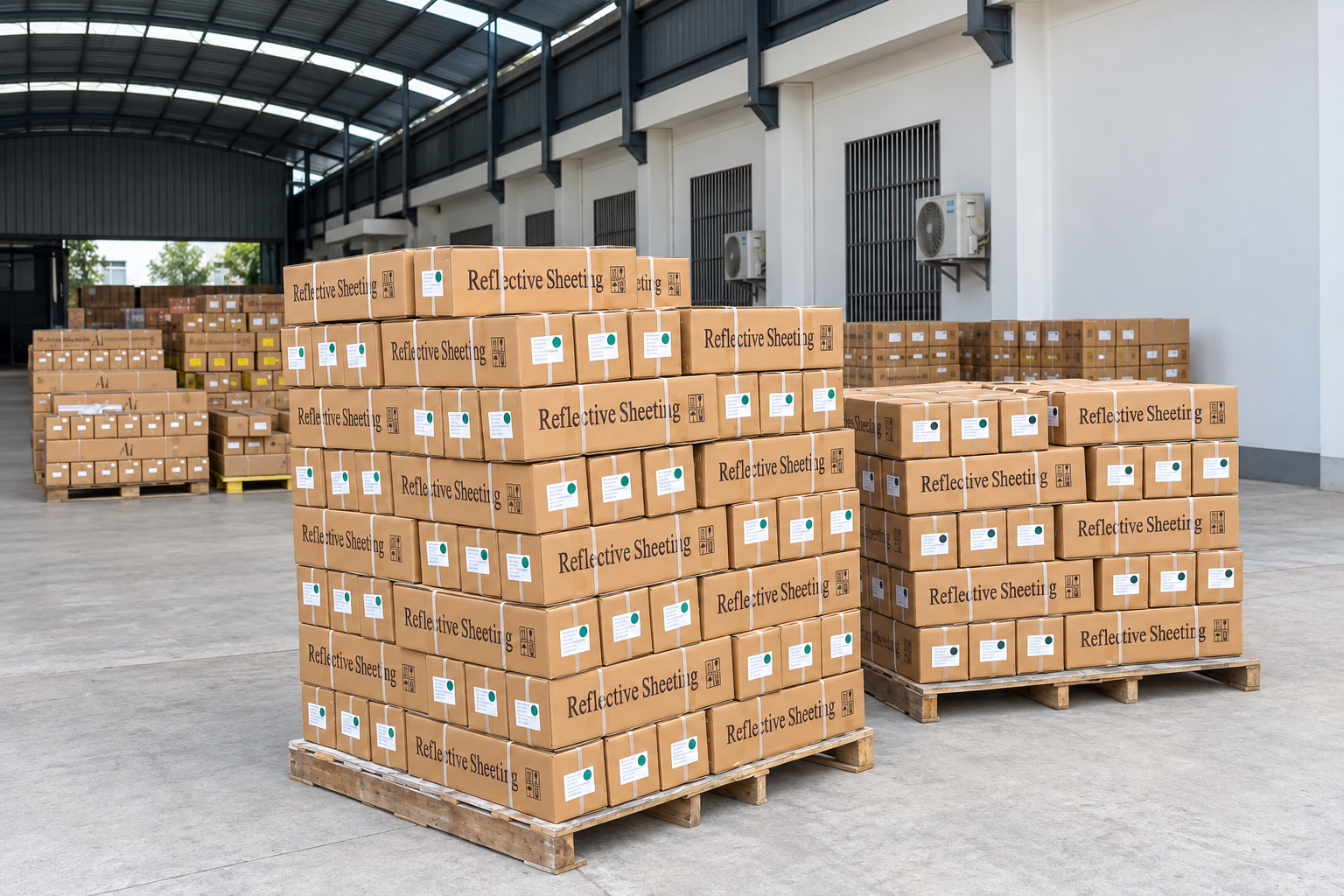

11. Inner protection, carton construction and rolls per carton

12. Pallet size, stacking limit, moisture protection and shipping marks

There is no single universal tolerance that is correct for every reflective sheeting roll. A full-width roll for manual sign application, a 48-inch printer roll and a narrow strip for automatic feeding may require different limits. The agreed tolerance must match the downstream process and be confirmed before production.

If a quotation only says “1.22 m × 45.7 m roll,” it is not yet a complete converting specification. Our guide to reading a reflective sheeting technical data sheet explains why nominal values and acceptance limits must be separated.

What Is Reflective Sheeting Roll Converting?

Roll converting changes a master or jumbo roll into a format that the customer can process, sell or apply.

Depending on the order, converting may include:

• Edge trimming

• Slitting into narrower lanes

• Rewinding to a specified length

• Changing the core size

• Controlling the finished outside diameter

• Removing defective sections

• Making or controlling splices

• Dividing the material into individual rolls

• Applying labels or core marks

• Packing rolls in neutral or private-label cartons

• Arranging cartons on export pallets

The objective is not merely to make smaller rolls. It is to preserve the material’s surface, optical construction, adhesive, liner and dimensional stability while producing a roll that runs correctly in the customer’s equipment.

Slitting vs Rewinding vs Sheeting

These terms describe different operations.

A slitter-rewinder normally unwinds the master roll, guides the web through a cutting section and rewinds each lane onto a separate core. This allows better control of length, winding tension, core alignment and in-process inspection than simply cutting through a completed roll.

Master Roll, Finished Roll and Usable Width

A master roll is the larger roll from which finished rolls are converted. Its nominal width is not always fully usable.

The converter may need to remove edge trim because of:

• Coating-edge variation

• Liner damage

• Adhesive contamination

• Optical defects near the edge

• Uneven winding

• A customer’s clean-edge requirement

• The knife and machine setup

For this reason, do not calculate yield from nominal master width alone. Confirm the usable converting width and the required trim allowance.

Why Reflective Sheeting Is More Demanding Than Ordinary Film

Reflective sheeting is not a single homogeneous plastic layer. Depending on the product, it may include:

• A PVC, PET, acrylic or other face construction

• Embedded glass beads or an internal microprismatic array

• A focusing, metallized or sealed optical layer

• A supporting film

• Pressure-sensitive adhesive

• A paper, PE-coated paper, PET or PP release liner

• A printable or protective surface treatment

These layers do not always respond identically to knife pressure, web tension, heat, humidity or bending.

Poor converting can cause:

• Surface scratches or pressure marks

• Damaged prismatic cells

• Liner cracking or fiber contamination

• Adhesive squeeze-out at the roll edge

• Edge blocking, where adjacent wraps stick together

• Width variation or wandering edges

• Curl, wrinkles or baggy lanes

• Telescoping or dished rolls

• Core crushing

• Roll memory that affects feeding or flatness

• Loss of lot or machine-direction traceability

The reflective value measured in the center of a new roll cannot reveal all of these converting problems. Finished-roll inspection must therefore cover both optical performance and physical roll quality.

For a broader product-construction comparison, see PET vs PVC vs acrylic reflective sheeting.

Slitting Methods for Reflective Sheeting

The correct slitting method depends on total construction thickness, face-film behavior, liner, adhesive, finished width, required edge quality and order volume.

Log Slitting

In log slitting, a blade cuts through a completed roll without first unwinding and rewinding the web.

Potential advantages include:

• Relatively simple setup

• Efficient production of some narrow widths

• No full web path through a slitter-rewinder

• Practical processing for certain pressure-sensitive materials

Points to control include:

• Heat generated at the cut

• Adhesive smearing or edge transfer

• Blade deflection

• Core cutting quality

• Width accuracy across the roll diameter

• Burrs, dust or damaged liner edges

• Limited opportunity to inspect hidden defects inside the roll

Log slitting should not automatically be treated as inferior or superior. It must be qualified for the exact reflective construction and tolerance.

Rewind Slitting

In rewind slitting, the web is unwound, cut lengthwise and rewound onto new cores.

This method can provide:

• Multiple finished widths from one master roll

• Controlled roll length

• A different core size

• Better web guiding and edge alignment

• In-process inspection

• Defect removal or documented splicing

• More control over roll hardness and finished outside diameter

The main process risks are incorrect web tension, poor knife setup, web wandering, air entrapment and unequal roll build between slit lanes.

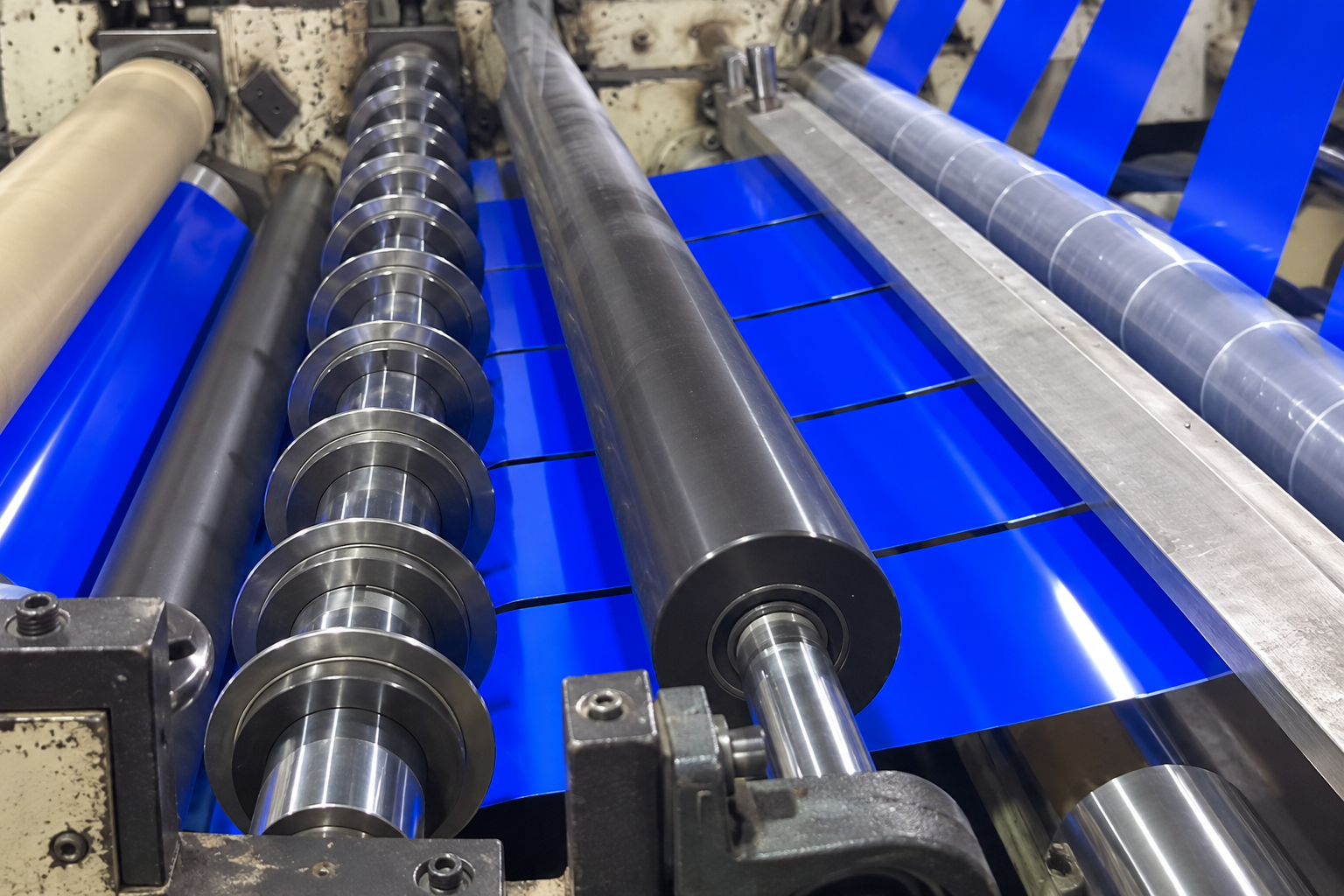

Razor, Shear and Score Slitting

No blade type is universally correct. The acceptance test is the finished roll: accurate width, clean edges, no surface damage, stable unwind and satisfactory downstream printing, cutting or application.

Why Blade Condition Matters

A dull, contaminated or incorrectly set knife can produce:

• Fuzzy or feathered liner edges

• Periodic edge waves

• Adhesive strings

• Edge chips

• Dust on the reflective surface

• Excessive cutting force

• Heat buildup

• Premature blade tracking problems

Pressure-sensitive reflective sheeting can deposit adhesive on a blade, especially when the material or workshop is warm. Blade inspection and cleaning frequency should therefore be part of the converting recipe rather than left to visual judgment at the end of a long run.

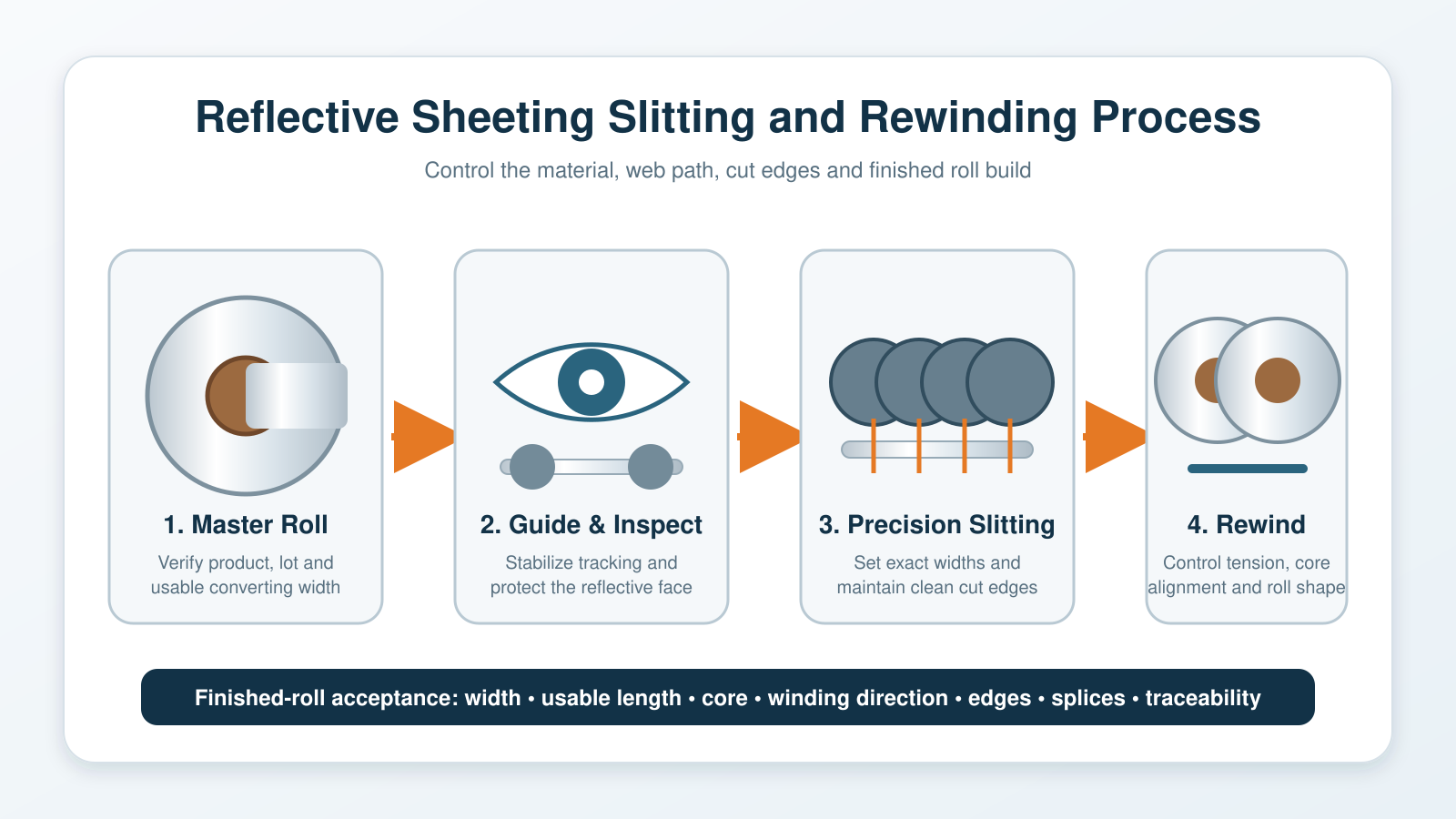

Reflective Sheeting Slitting and Rewinding Process

A controlled converting process generally follows these stages.

1. Review the Approved Specification

Before mounting the roll, confirm:

• Product code and color

• Batch or lot number

• Master-roll width and length

• Finished widths and quantities

• Required roll length

• Core specification

• Winding direction

• Splice allowance

• Label and packaging artwork

• Inspection method and acceptance limits

Dimensions should use one clearly stated unit. If inches and metric values both appear, the purchase order should identify which value controls.

For example, 11.625 inches is exactly 295.275 mm. Rounding it to 295 mm or replacing it with 12 inches creates a different product.

2. Condition and Inspect the Master Roll

Move the material into the converting environment early enough to reach a stable temperature before opening moisture-protective packaging.

Inspect the master roll for:

• Carton or transport damage

• Crushed or wet core

• Telescoping

• Dished edges

• Surface contamination

• Liner curl or waviness

• Visible coating or optical defects

• Correct product, color and lot identification

Opening a cold roll immediately in a warm, humid room can allow condensation to form. Temperature and humidity changes can also affect paper liners and roll flatness.

3. Mount, Center and Guide the Web

The master roll must be supported through the core with suitable chucks or a shaft. The web path should be clean and aligned, and the guide system should control lateral movement before the cutting section.

Misalignment at this stage can become:

• Variable slit width

• Wavy edges

• Uneven tension across lanes

• Core offset

• Telescoping during rewind

Rollers that contact the reflective face must be clean and appropriate for the surface. A small hard particle can repeat a pressure mark through many layers.

4. Set Knives and Cores

Knife positions should be set from the approved finished widths, not from a rounded sales description.

The cores must be:

• The specified inside diameter

• Straight and round

• Dry and dimensionally stable

• Strong enough for the roll weight and winding tension

• Cut to the agreed length

• Aligned with the slit lanes

• Free of dust, burrs and crushed edges

Core placement is part of width control. A correctly slit web wound onto a misaligned core can still fail in the customer’s machine.

5. Establish a Stable Start

The first wraps anchor the entire roll. A loose, wrinkled or skewed start can remain hidden near the core and cause failure when the customer reaches the end of the roll.

The operator should confirm:

• The web is square to the core

• The start is smooth and secure

• No fold or trapped debris is present

• Each lane begins at the correct position

• Initial tension is appropriate for the construction

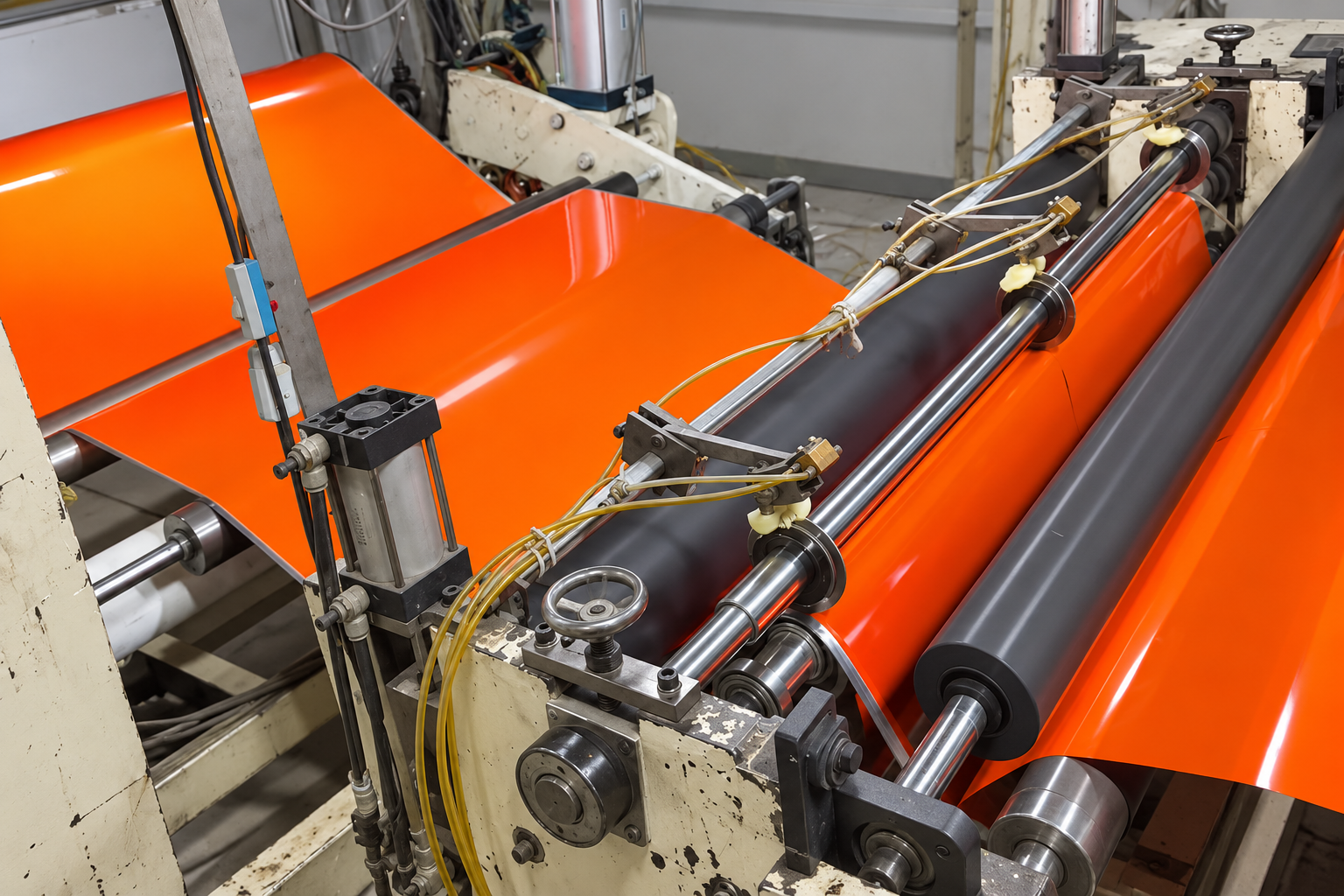

6. Control Tension as Diameter Builds

The required rewind torque changes as roll diameter increases. A fixed setting may make the roll progressively too hard or too soft.

The correct control strategy depends on the material and equipment, but the goal is consistent roll build without stretching, core damage, trapped air or lateral movement.

When several lanes are wound together, small cross-web thickness differences can make their diameters build at different rates. Differential winding can help each roll receive the torque it needs rather than forcing every lane to behave identically.

7. Stop, Finish and Secure the Roll

At the target usable length or outside diameter:

• Make a clean cross cut

• Secure the tail with an approved method

• Avoid tape or adhesive that contaminates the usable surface

• Mark any splice as agreed

• Protect the roll face and edges

• Keep the product label connected to the original lot

The roll should not loosen between removal from the shaft and packaging.

8. Inspect Before Packing

Do not use the shipping carton to hide a poor roll. Inspect and record the finished condition before inner wrapping and carton sealing.

How to Calculate Slitting Yield and Trim Waste

The basic lane calculation is:

Number of full lanes = floor (usable master width ÷ required slit width)

Then:

Remaining trim = usable master width − (number of lanes × slit width)

Use the usable master width after required edge trim, not automatically the nominal sales width.

Common Inch-to-Metric Conversions

Do not round before completing the yield calculation. A small rounding difference multiplied across several lanes can consume the available trim allowance.

Worked Example: Slitting 48 Inches into 11.625-Inch Rolls

If the full nominal 48-inch width is usable:

48 ÷ 11.625 = 4 full rolls

The four lanes use:

4 × 11.625 = 46.5 inches

The theoretical remainder is:

48 − 46.5 = 1.5 inches, or 38.1 mm

This is a geometric calculation, not a production guarantee. Actual yield still depends on edge trim, knife spacing, master-roll tolerance and whether the remainder must itself be a saleable roll.

Worked Example: One 40-Inch Roll Plus One 8-Inch Roll

Nominally:

40 in + 8 in = 48 in

However, a mathematically exact layout leaves no allowance for edge trimming or knife-related loss. If both finished rolls must meet strict width limits, the converter must confirm that the master roll has enough usable width or propose a different slitting plan.

This is why a cutting plan should be approved before quoting yield, price and delivery time.

Rewinding Tension, Roll Hardness and Finished-Roll Quality

Good rewind quality balances several variables rather than maximizing tightness.

A finished roll must be firm enough to handle and transport, but not so tight that the core, liner, adhesive or reflective construction is damaged.

What Happens When Tension Is Too High?

Excessive or badly distributed tension may cause:

• Crushed or deformed cores

• Stretching of flexible PVC

• Liner indentation or embossing

• Adhesive squeeze-out

• Blocking between wraps

• Starring or buckling near the core

• Increased curl after unwinding

• Damage from trapped gauge bands

What Happens When Tension Is Too Low?

Insufficient or unstable tension may cause:

• Loose rolls

• Telescoping

• Dishing

• Wrinkles

• Web wandering

• Poor edge alignment

• Roll collapse during handling

• Unstable feeding on printers or cutters

Taper Tension

Taper tension means reducing the winding tension in a controlled way as the roll diameter grows. It can help avoid excessive internal stress in the outer layers while maintaining a stable start near the core.

The correct taper is product- and machine-specific. It should be established through trials and recorded as part of the converting recipe.

Air Entrapment and Nip Control

At higher line speeds, air can travel with the web into the winding roll. Trapped air can act like a low-friction layer and contribute to shifting, bubbles or an unstable roll.

A suitable lay-on or nip system can help exclude air and control roll build, but excessive nip pressure can also mark sensitive surfaces. The setup must protect both roll geometry and the reflective face.

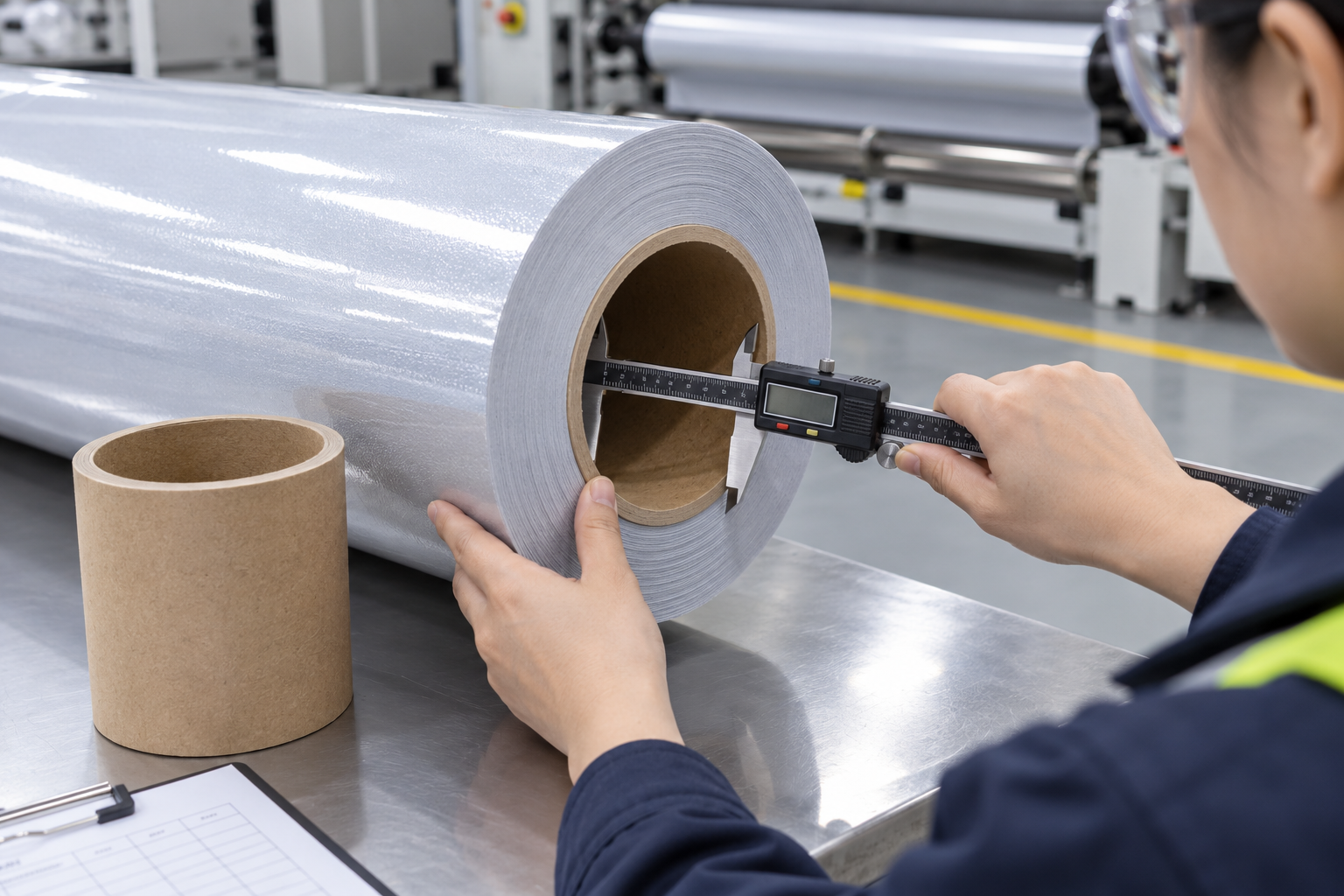

Core Size: More Than a 2-Inch or 3-Inch Label

Core size is a machine-interface requirement. It should never be selected only because it is common in the supplier’s factory.

Core Inside Diameter

The core inside diameter, or core ID, must match the customer’s shaft, chuck, printer or cutter.

Common equipment may use:

• 2-inch cores, nominally 50.8 mm

• 3-inch cores, nominally 76.2 mm

• Other metric or custom sizes for specialized machinery

Three-inch cores are common for many industrial and wide-format rolls, but they are not universal. Confirm the actual equipment specification before ordering.

Core ID vs Core Outside Diameter

Core ID is the opening that fits over the shaft. Core outside diameter depends on the wall thickness.

Two cores can have the same 76.2 mm ID but different outside diameters and strengths. This changes:

• The first-wrap diameter

• The amount of material that fits within a maximum roll OD

• Core crush resistance

• Roll weight

• The accuracy of a theoretical length calculation

Core Length

Core length and material width are separate dimensions.

The core may be specified as:

• Flush with both roll faces

• Slightly longer than the web

• Projecting by an agreed amount on each side

• Recessed only if the customer’s equipment permits it

Uncontrolled projection can prevent a roll from fitting in a machine or carton. A recessed or off-center core can make loading difficult and leave the roll edge vulnerable.

Core Material and Strength

Paper or fiber cores are common, while plastic or other constructions may be used for moisture resistance, cleanliness or special equipment.

Important properties include:

• Inside diameter tolerance

• Wall thickness

• Straightness

• Roundness

• Moisture content

• Surface cleanliness

• Edge squareness

• Crush strength

A core that arrives round can still deform if the roll is wound too tightly, exposed to moisture or stacked incorrectly.

Winding Direction: Face-In, Face-Out and Unwind Orientation

“Correct width and core” are not enough if the roll unwinds in the wrong direction.

The order should state whether the reflective face is wound:

• Face out

• Face in

It should also define the leading-edge or unwind orientation when the roll feeds automatically into:

• A wide-format printer

• A laminator

• A plotter cutter

• A label or tape converting line

• A license plate production system

If artwork, watermarks, directional markings or microprismatic orientation are involved, include a simple approved diagram with the order. Avoid relying on terms such as “normal winding,” because normal can differ between factories and machines.

Roll Width, Length and Packaging Tolerances

What Does Tolerance Mean?

Tolerance is the permitted deviation from a stated nominal value.

For example, these are different requirements:

• Width: 300 mm nominal

• Width: 300 mm ± 1 mm

• Width: 300 mm, +1/−0 mm

• Minimum usable width: 300 mm

The first statement gives no acceptance limit. The other three do, but they do not describe the same acceptable range.

Is There a Standard Reflective Sheeting Roll-Width Tolerance?

No single value applies to every product and process.

The achievable and useful tolerance depends on:

• Master-roll variation

• Total construction thickness

• Face material and liner stability

• Finished roll width

• Slitting method

• Knife condition and setup

• Web guiding

• Temperature and humidity

• Measuring method

• Required production speed

• Customer equipment

A broad roll used for manual panel application may tolerate more width variation than a narrow roll running through guides or an automatic dispenser. Ask for a project-specific tolerance and confirm it through a pilot roll when fit is critical.

Tolerances and Acceptance Criteria to Define

Width Measurement

The inspection agreement should identify:

• Measuring instrument

• Instrument resolution

• Sample conditioning

• Measurement temperature

• Locations or sampling plan

• Whether core projection is excluded

• Which unit controls

Do not convert an exact inch specification to a rounded metric target without written approval.

Length Measurement

Roll length is normally controlled by a calibrated counter or encoder during rewinding. The order should define whether the stated length is:

• Nominal total wound length

• Minimum usable length

• Length excluding leader and trailer

• Length excluding defective or splice zones

For long rolls, a small percentage variation can equal many meters. Buyers who require an exact minimum usable length should say so explicitly.

Checking Length from Roll Diameter

For a uniform, incompressible web, approximate length can be estimated from roll geometry:

L ≈ π(D² − d²) ÷ 4t

Where:

• L = approximate web length

• D = finished-roll outside diameter

• d = core outside diameter, not core ID

• t = total wound construction thickness

Use the same unit for D, d and t.

This is only a cross-check. Reflective sheeting thickness variation, paper-liner compression, entrained air and winding hardness can make calculated length differ from actual metered length.

Splice Tolerance

“Splices allowed” is incomplete. Define:

• Maximum splices per roll

• Minimum usable length between splices

• Splice tape or joining method

• Whether a butt splice or overlap is permitted

• Maximum added thickness

• Flag, label or edge mark position

• Whether the splice zone counts as usable material

• Whether splice-free rolls are mandatory

Printers and automatic production lines may stop, jam or create scrap at an unexpected splice. If zero splices are required, put “no splices permitted” in the purchase order.

Common Converted-Roll Defects and Their Likely Causes

When defects occur, identify the failed layer before changing the process. A liner wrinkle, face-film stretch and optical-cell damage may look related but require different corrective actions. See our reflective sheeting defects and troubleshooting guide for a layer-by-layer diagnostic method.

Packaging Reflective Sheeting Rolls for Export

Packaging must protect the roll from pressure, impact, moisture, dust, movement and loss of traceability from the converting line to the customer’s machine.

Recommended Protection Sequence

A project-specific export pack may include:

1. A secured roll tail that does not contaminate usable material

2. Surface or edge protection where required

3. A clean plastic bag or moisture barrier

4. Core plugs, suspended supports or spacers that keep the roll surface away from the carton

5. Protective end discs or pads where appropriate

6. A correctly sized corrugated carton

7. External product, roll and lot labels

8. Palletization with corner protection and controlled stretch wrapping

The exact system depends on roll width, weight, material construction, shipping method and storage climate.

Why Core Plugs and Spacers Matter

If the roll surface directly supports its own weight against the carton, transport vibration can create pressure marks, edge damage or surface abrasion.

Core plugs or spacers can support the roll through its core and help maintain clearance around the reflective face. The packaging design must be strong enough to maintain that clearance after stacking and long-distance transport.

Carton Size and Packaging Tolerance

A carton must have enough clearance for loading and protective components without allowing uncontrolled roll movement.

The packing specification should state:

• External carton length, width and height

• Permitted dimensional variation if warehouse fit is critical

• Rolls per carton

• Core plug or spacer design

• Minimum board or carton strength if specified

• Maximum gross weight

• Label position

• Closure method

• Handling orientation

• Pallet pattern and maximum stack height

For reference, some ABLAZE 1.22 m × 45.7 m glass-bead reflective sheeting formats can be packed one roll per carton in an approximately 131 × 20.5 × 20.5 cm carton. This is an example, not a universal packing size. The final carton dimensions and gross weight must be confirmed for the exact product, liner, core and protective pack.

Moisture Protection for Sea Freight

Long sea shipments may expose cartons to temperature changes and high humidity. Depending on the route and product, the packaging plan may require:

• A sealed inner bag

• Moisture-resistant liner or carton treatment

• Desiccant selected for the pack volume and voyage

• Pallet top sheets

• Protection from container-wall condensation

• A dry, clean and undamaged container

Desiccant should not touch or damage the reflective surface. Moisture protection should be designed for the complete load rather than added casually inside the carton.

Palletization

Before approving a pallet plan, calculate:

• Cartons per layer

• Number of layers

• Pallet footprint

• Loaded height

• Net product weight

• Carton and core weight

• Pallet and protective-material weight

• Total gross weight

• Load distribution

• Forklift entry and container clearance

Do not estimate every custom roll from the gross weight of one standard roll. Film construction, liner GSM, core, length and packaging can materially change the result.

Storage After Delivery

Keep rolls in their original protective packaging until needed. Protect them from direct sunlight, heat, humidity, dust, crushing and unsupported storage.

Partly used rolls should be rewrapped and supported according to the product instructions. For more detail, read How to Store Reflective Sheeting Rolls.

Pre-Shipment Inspection Checklist for Converted Rolls

Product Identity and Traceability

• Correct ABLAZE product code or approved OEM code

• Correct color and construction

• Master lot and finished-roll number recorded

• Quantity matches the packing list

• Approved packaging artwork and shipping marks used

Dimensions and Core

• Finished width within the agreed tolerance

• Usable length meets the agreed basis

• Correct core ID

• Core length and alignment acceptable

• Finished OD and roll weight compatible with the order

• No crushed, wet, rough or contaminated core

Roll Build

• Straight, clean roll faces

• No excessive telescoping or dishing

• No loose core or unstable outer wraps

• No wrinkles, starring or out-of-round condition

• Tail secured without contaminating usable material

• Correct face-in or face-out winding

Edge, Surface and Liner

• Slit edges clean and consistent

• No adhesive ooze or edge blocking

• No unacceptable dust or paper fibers

• Reflective surface free from scratches and pressure marks

• Liner free from unacceptable cracks, curl or premature release

• Splices comply with count, marking and construction requirements

Packaging

• Correct inner bag and protective components

• Core plugs or spacers properly seated where specified

• Correct carton dimensions and quantity per carton

• Roll cannot move excessively inside the closed carton

• Carton label matches the roll label

• Pallet is stable and within size, height and weight limits

• Moisture and edge protection match the shipping plan

For high-risk orders, retain a sample and inspection record from the converted batch. A pilot roll should be tested on the customer’s actual printer, cutter, laminator or application process before mass production.

How Material Type Changes the Converting Specification

PVC Reflective Vinyl

PVC is flexible and commonly used for printable advertising graphics and commercial signs.

Converting priorities may include:

• Avoiding excessive stretch

• Controlling adhesive squeeze-out

• Maintaining stable winding for printer feeding

• Confirming roll direction

• Protecting a printable surface

• Checking shrinkage after printing and lamination

For related products, review ABLAZE advertising-grade reflective sheeting and our printable reflective sheeting buying guide.

PET Glass-Bead Reflective Sheeting

PET constructions are often more dimensionally stable and relatively rigid.

Converting priorities may include:

• Preventing edge cracking or liner damage

• Maintaining flatness

• Controlling roll memory

• Matching the liner to plotter cutting

• Avoiding excessive nip or bending

If the converted roll will be used for letters or graphics, run a production test and follow the recommendations in How to Cut Reflective Sheeting With a Plotter.

Acrylic Reflective Sheeting

Acrylic constructions can provide good outdoor stability but may require more care around sharp bending, narrow widths and impact at the roll edge.

Confirm:

• Minimum practical slit width

• Blade condition and cutting method

• Core diameter and winding tension

• Surface protection

• Edge acceptance criteria

• Printing or downstream processing compatibility

Microprismatic Reflective Sheeting

Microprismatic sheeting has a smooth exterior surface with a regular microprismatic optical array inside the construction.

Converting should protect:

• The face surface

• Internal prism or sealed-cell integrity

• Machine-direction and orientation marks

• Lot consistency across adjoining sign panels

• Clean edges and roll faces

• Correct storage support

The highest initial brightness does not excuse poor converting. Pressure marks, cell damage, incorrect orientation or unstable winding can make an otherwise compliant material difficult to fabricate.

For traffic-sign projects, compare ABLAZE engineering-grade reflective sheeting and high-intensity prismatic reflective sheeting.

How to Write a Reflective Sheeting Converting Specification

Use this structure when requesting a quotation or approving a purchase order.

The values in the example column illustrate how to write a complete specification; they are not universal ABLAZE defaults.

Common Buying Mistakes

Avoid these frequent errors:

1. Ordering by nominal width without a tolerance

2. Treating 48 inches as 1.22 m without identifying the controlling unit

3. Rounding 11.625 inches to 295 mm or substituting 12 inches

4. Calculating slit yield without edge trim

5. Specifying “3-inch core” without core length or equipment limits

6. Ignoring face-in, face-out and unwind direction

7. Assuming the total wound length is fully usable

8. Accepting unmarked splices

9. Checking RA but not roll edges, liner and winding quality

10. Allowing cartons to support or rub directly against the reflective surface

11. Estimating custom-roll gross weight from a different product construction

12. Approving mass production without testing a pilot roll

How ABLAZE Supports Custom Roll Converting and OEM Packaging

Changzhou Zhenghe New Material Technology Co., Ltd. supplies ABLAZE reflective sheeting in standard and project-specific roll formats for distributors, printers, sign manufacturers and OEM/private-label customers.

Depending on the selected product and order requirements, the evaluation can cover:

• Custom metric or inch widths

• Standard or long roll lengths

• Core compatibility

• Face-in or face-out winding

• Release-liner options

• Individual roll and carton labels

• Neutral or private-label packaging

• Carton and pallet planning

• Lot and roll traceability

• Pre-production samples or pilot rolls

Custom converting must be reviewed against the exact product construction. A width, core or winding setup that works for flexible PVC reflective vinyl may not be appropriate for PET, acrylic or microprismatic sheeting.

To request a converting quotation, send ABLAZE:

1. Product or intended application

2. Color and quantity

3. Exact finished width and controlling unit

4. Required usable length

5. Width and length tolerance

6. Core ID, core length and material

7. Maximum roll OD or weight, if applicable

8. Winding direction or equipment diagram

9. Splice policy

10. Packaging and private-label requirements

11. Destination country and shipping method

12. Printer, cutter, laminator or other downstream equipment

Contact ABLAZE to confirm custom roll feasibility, sample availability, packaging details and production lead time.

Frequently Asked Questions

What is reflective sheeting roll converting?

Reflective sheeting roll converting is the process of changing a master roll into customer-ready rolls through edge trimming, slitting, rewinding, length control, core selection, inspection, labeling and packaging.

What is the difference between slitting and rewinding?

Slitting divides a wide web into narrower widths. Rewinding transfers the material to new cores while controlling length, roll direction, outside diameter, tension and roll build. A slitter-rewinder performs both operations in one web path.

Is a 3-inch core exactly 76.2 mm?

Three inches converts to 76.2 mm, but a core specification still needs a manufacturing tolerance, wall thickness and core length. Confirm the customer’s shaft or chuck dimensions rather than relying only on the nominal name.

What is a normal width tolerance for reflective sheeting rolls?

There is no universal tolerance for every reflective product and application. Finished width, material construction, slitting method, measuring method and downstream equipment all affect the required and achievable limit. The buyer and manufacturer should agree on a written tolerance before production.

Can a 48-inch master roll make four 11.625-inch rolls?

The theoretical answer is yes. Four rolls use 46.5 inches, leaving 1.5 inches. Actual production yield depends on usable master width, edge trim, knife setup and the agreed width tolerances.

Can a 48-inch roll be divided into one 40-inch and one 8-inch roll?

The nominal dimensions total exactly 48 inches, leaving no theoretical trim allowance. The converter must confirm usable width and required edge trim before promising that both finished rolls will meet specification.

Why do converted rolls telescope?

Common contributors include unstable or insufficient winding tension, web misalignment, trapped air, cross-web thickness variation, poor roll hardness and transport shock. The root cause should be confirmed from the roll pattern and process record.

Does tighter winding always produce a better roll?

No. A roll that is too loose may telescope or feed poorly, while a roll that is too tight may crush the core, stretch the film, mark the liner or squeeze adhesive toward the edges. The target is a stable, product-specific winding profile.

Should reflective sheeting be wound face in or face out?

The required direction depends on the product and the customer’s equipment. State face-in or face-out and provide an unwind diagram when automatic printing, cutting, laminating or directional graphics are involved.

How should splices be specified?

State the maximum number per roll, minimum distance between splices, joining method, marking method and whether the splice zone counts as usable length. If the process cannot accept a splice, specify zero splices.

How should reflective sheeting rolls be packed for export?

Use clean inner protection, suitable end protection and core support, a correctly sized carton, traceable labels and a stable pallet plan. The pack should prevent moisture, pressure, abrasion, edge impact and uncontrolled movement during transport.

Can ABLAZE supply custom-width reflective sheeting rolls?

ABLAZE can evaluate custom widths, lengths, cores, winding and packaging according to the selected product, quantity and downstream equipment. Final feasibility and tolerances should be confirmed in the quotation and approved specification.

Final Recommendation

Do not approve a reflective sheeting roll only because the material type, color, width and price look correct.

A dependable converted roll requires a complete agreement covering:

• Usable width and length

• Core and machine compatibility

• Winding direction

• Edge and roll geometry

• Tension-sensitive defects

• Splice control

• Labels and traceability

• Carton and pallet protection

• Inspection method and tolerance

The safest purchasing sequence is:

1. Define the customer’s equipment and finished-roll requirement.

2. Approve the exact converting specification.

3. Calculate lane yield using usable—not merely nominal—master width.

4. Test a pilot roll in the real downstream process.

5. Inspect roll build and packaging before mass shipment.

6. Keep lot and converting records for every finished roll.

Good converting does not improve the optical grade of reflective sheeting, but poor converting can make good material difficult or impossible to use. Treat the finished roll as an engineered product, not simply a cut piece of a master roll.
